LS120G-SWMFX (1983)
Toyota Crown

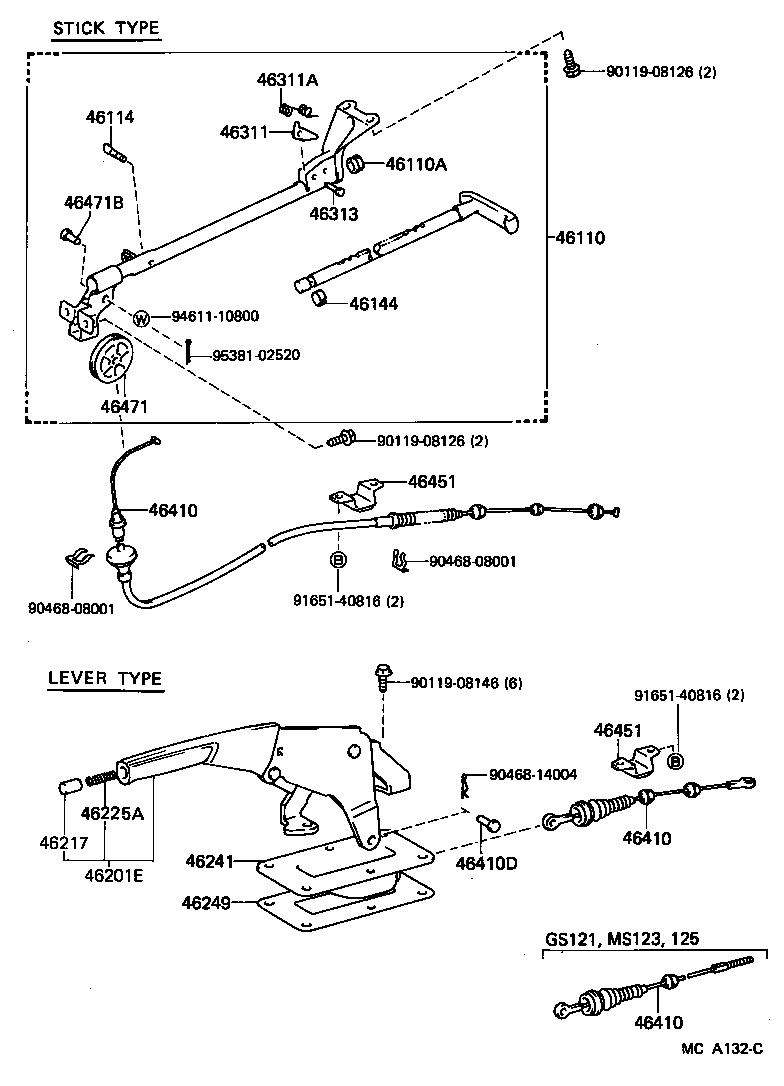

ILLUST NO. 1 OF 3(8308- )LS126 ; (8308- )GS12#,LS120,MS120,YS120..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3006004 |
LS126..DLX;GS120,126,LS120,YS120..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46201-3006005 |
GS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SAL,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 46201-3006104 |
LS126..DLX;GS120,126,LS120,YS120..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46201-3006114 |
LS126..DLX;GS120,126,LS120,YS120..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46201-3006105 |
GS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SAL,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 46201-3006106 |
GS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SAL,SDX,SPE,SSL) BROWN,BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002014 |
LS126..DLX;GS12#,LS120,YS120..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46217-1002015 |
LS126..DLX;GS12#,LS120..5F..(DLX,ROY,SAL,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 46217-1002056 |
LS126..DLX;GS12#,LS120..5F..(DLX,ROY,SAL,SDX,SPE,SSL) BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002054 |
LS126..DLX;GS12#,LS120,YS120..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10085 |
LS126..DLX;GS12#,LS120,YS120..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-30010 |
LS126..DLX;GS12#,LS120,YS120..5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-30010 |
LS126..DLX;GS12#,LS120,YS120..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30330 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30330 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30330 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
LS126..DLX;GS12#,LS120,YS120..5F |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30080 |
GS121..5F;GS120,126,LS12#,MS120,YS120 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30080 |
GS121..5F;GS120,126,LS12#,MS120,YS120 |
1 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90119-08146 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91651-40816 | ||||
| 94611-10800 | ||||
| 95381-02520 | ||||
ILLUST NO. 2 OF 3(8308- )GS120,126,LS12#,MS120,YS120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30170 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30170 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30170 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20044 |
LS126;GS120,126,LS120,MS120,YS120..MTM |
1 | ||
| 46301C - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20044 |
LS126;GS120,126,LS120,MS120,YS120..MTM |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08028 |
GS120,126,LS12#,MS120,YS120..4FC,4HC,5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-31010 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30050 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30050 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-30050 |
LS126..DLX;GS120,126,LS120,YS120..5F |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30280 |
GS120,LS120..WG..(4FC,4HC,5F) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30050 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 46441-30050 |
GS120,126,LS12#,MS120,YS120 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30042 |
GS120,LS120,MS120,YS120 |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-31011 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| 46479 - LEVER, CABLE GUIDE SAPPORT, NO.2 | ||||
| 46479-30010 |
GS120,126,LS12#,MS120,YS120 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90109-08102 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90206-08016 | ||||
| 90461-12019 | ||||
| 90468-08001 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 91656-40822 | ||||
| 94110-40600 | ||||
| 94611-10601 | ||||
| 95381-02020 | ||||
| 96115-40616 | ||||
