LS120G-SWMFX (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS120 ; (8308- )LS126..DLX

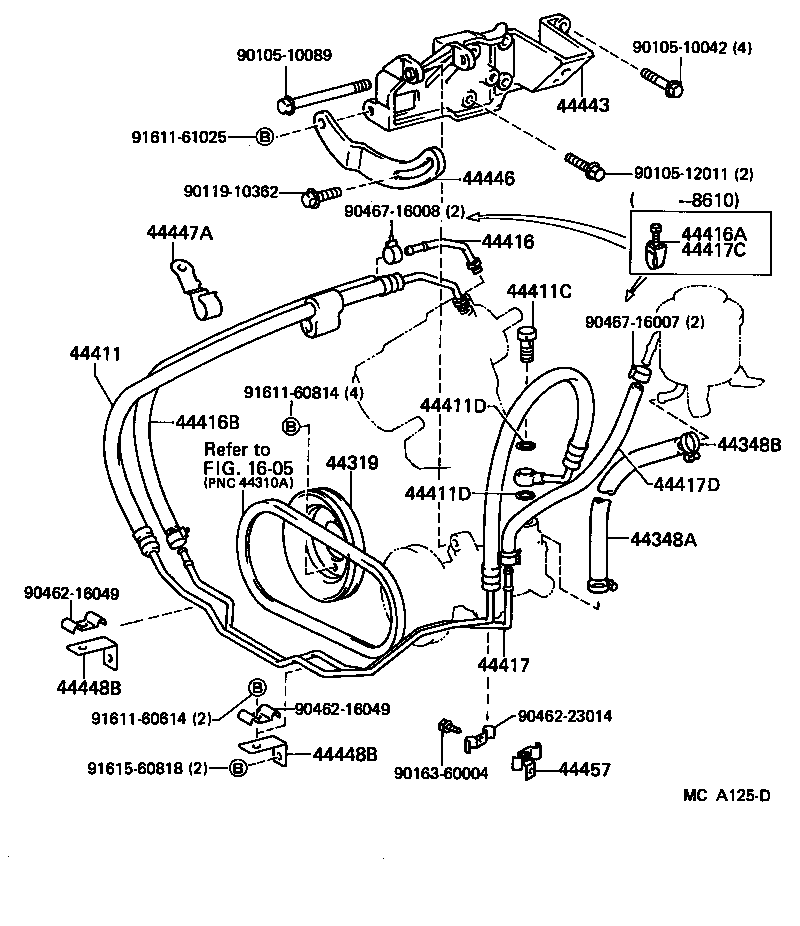

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44411 44411C 44411D 44411D 44416 44416A 44416B 44417 44417C 44417D 44443 44446 44447A 44448B 44448B 44457 9010510042 9010510089 9010512011 9011910362 9016360004 9046216049 9046216049 9046223014 9046716007 9046716008 9161160614 9161160814 9161161025 9161560818
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30030

LS120;LS126..DLX

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30060

LS120;LS126..DLX

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

LS120;GS121,LS126..DLX,ROY

 2
44411 - HOSE, PRESSURE FEED
44411-30210

LS120;LS126..DLX

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16005

LS120;LS126..DLX

 1
90401-16008

LS120

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LS120;LS126..DLX

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LS120;LS126..DLX

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30060

LS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LS120;GS12#,LS126..DLX,ROY,SAL,SDX,SPE,SSL

 2
44416B - HOSE(FOR STEERING GEAR TO RETURN TUBE)
90445-18123

LS120;LS126..DLX

 1
44417 - TUBE, RETURN, NO.2
44417-30050

LS120;LS126..DLX

 1
44417C - CLAMP, RETURN TUBE HOSE
90460-01001

LS120;LS126..DLX

 2
44417D - HOSE(FOR RETURN TUBE TO RESERVOIR)
90445-18126

LS120;LS126..DLX

 1
44443 - BRACKET, PUMP
44443-30080

LS12#

 1
44446 - STRUT, ADJUSTING
44446-30070

LS120;LS126..DLX

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30080

LS120;LS126..DLX

 1
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-30060

LS120;LS126..DLX

 2
44448B - BRACKET, HOSE SUPPORT, NO.2
44448-30060

LS120;LS126..DLX

 2
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-30030

LS120;LS126..DLX

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10362
90163-60004
90462-16049
90462-23014
90467-16007
90467-16008
91611-60614
91611-60814
91611-61025
91615-60818
Linked diagrams
1605
