LS120G-SWMFX (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5F

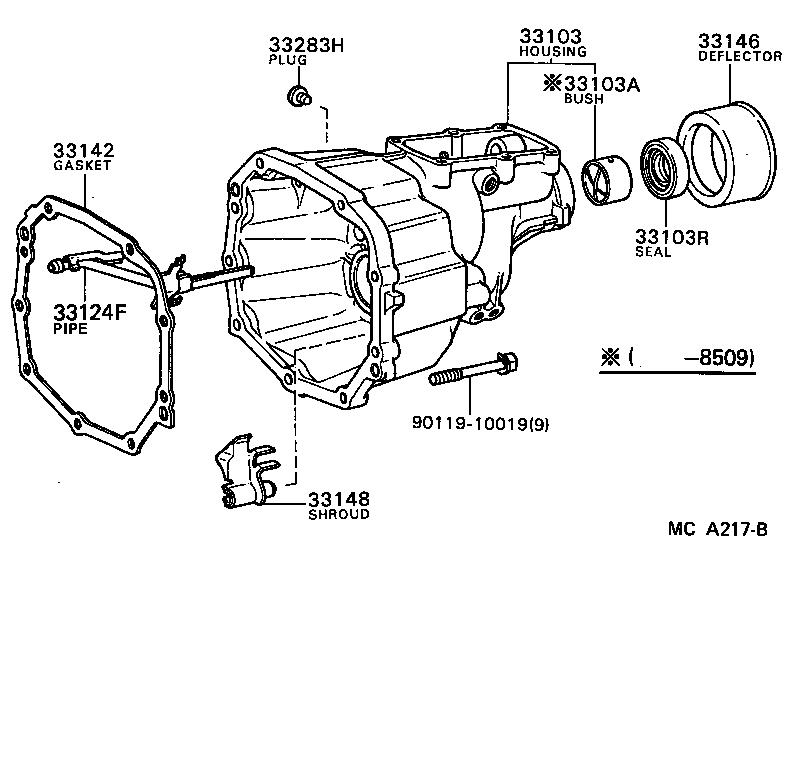

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124F 33142 33146 33148 33283H 9011910019
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22090

GS12#,LS12#..5F

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

GS12#,LS12#,MS120,YS120..MTM

 1
90999-73105

GS12#,LS12#,YS120..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

GS12#,LS12#,MS120,YS120..MTM

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33106-22010

GS12#,LS12#,YS120..5F

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-22010

GS12#,LS12#,YS120..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

GS12#,LS12#,MS120,YS120..MTM

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

GS12#,LS12#,YS120..5F

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

GS12#,LS12#,YS120..5F

 2
Common parts
90119-10019
