LS120G-SWMFX (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

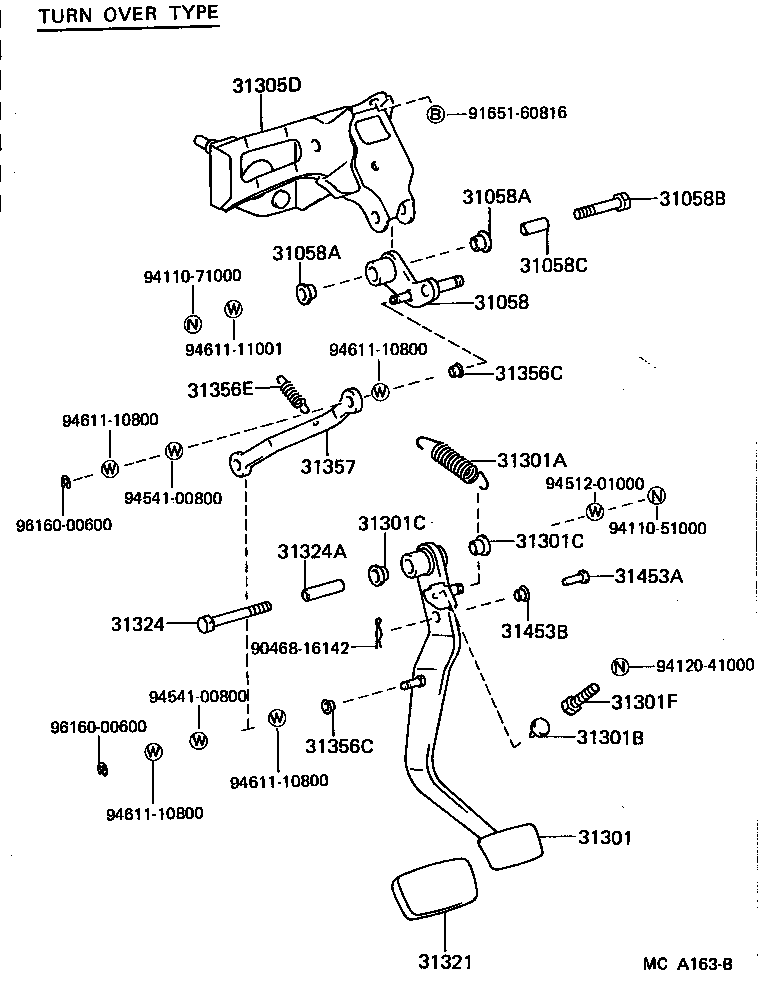

ILLUST NO. 1 OF 2(8308- )LS120..4H..STD ; (8308- )MTM..LPG,TD,TWC

Click highlighted areas on diagram

diagram 31058 31058A 31058A 31058B 31058C 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31356C 31356C 31356E 31357 31453A 31453B 9046816142 9165160816 9411051000 9411071000 9412041000 9451201000 9454100800 9454100800 9461110800 9461110800 9461110800 9461110800 9461111001 9616000600 9616000600
Part # Description Qty Price
31058 - PLATE SUB-ASSY, OVER CENTER
31058-30020

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31058A - BUSH(FOR OVER CENTER PLATE)
90386-13192

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 2
31058A - BUSH(FOR OVER CENTER PLATE)
90386-13192

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 2
31058B - BOLT(FOR OVER CENTER PLATE)
90101-10072

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31058C - COLLAR(FOR OVER CENTER PLATE)
90387-10038

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30180

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-20005

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07010

GS12#,LS12#,MS120,YS120..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS12#,LS12#,MS120,YS120..MTM

 2
90386-13192

GS12#,LS12#,MS120,YS120..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS12#,LS12#,MS120,YS120..MTM

 2
90386-13192

GS12#,LS12#,MS120,YS120..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GS12#,LS12#,MS120,YS120..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-30120

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31321 - PAD, CLUTCH PEDAL
31321-30040

GS12#,LS12#,MS120,YS120..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GS12#,LS12#,MS120,YS120..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GS12#,LS12#,MS120,YS120..MTM

 1
31356C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-08014

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 2
31356C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-08014

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 2
31356E - SPRING(FOR OVER CENTER ADJUSTING ROD)
90506-09021

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-30030

GS121,LS120,MS120,YS120..MTM..(LPG,TD,TWC)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GS12#,LS12#,MS120,YS120..MTM

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

GS12#,LS12#,MS120,YS120..MTM

 1
Common parts
90468-16142
91651-60816
94110-51000
94110-71000
94120-41000
94512-01000
94541-00800
94611-10800
94611-11001
96160-00600

ILLUST NO. 2 OF 2(8308- )MTM

Click highlighted areas on diagram

diagram 31481 31481A 31481A 31482 31484 9046106147 9094901292 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30130

GS12#,LS12#,MS120..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50335

GS12#,LS12#,MS120..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50335

GS12#,LS12#,MS120..MTM

 1
Common parts
90461-06147
90949-01292
96991-10080
