LS120G-SWMFX (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

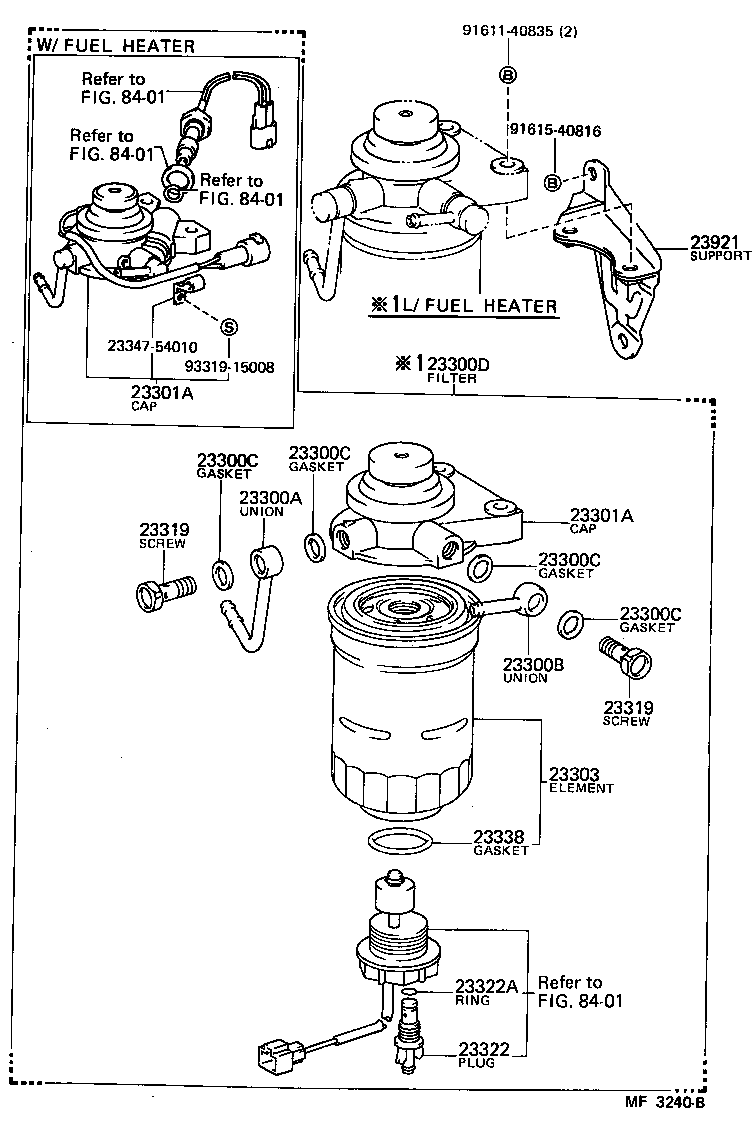

(8308-8605)2L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 23323-54040 |
2L,2LT#..LS12# |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
2L,2LT#..LS12# |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L,2LT#..LS12# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L,2LT#..LS12# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L,2LT#..LS12# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L,2LT#..LS12# |
4 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-54150 |
2L,2LT#..LS12# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54260 |
2L,2LT#..LS12# |
1 | ||
| 23301-54180 |
2L,2LT#..LS12# W/FUEL HEATER |
1 | ||
| 23301-64010 |
2L,2LT#..LS12# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54260 |
2L,2LT#..LS12# |
1 | ||
| 23301-54180 |
2L,2LT#..LS12# W/FUEL HEATER |
1 | ||
| 23301-64010 |
2L,2LT#..LS12# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L,2LT#..LS12# |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
2L,2LT#..LS12# |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
2L,2LT#..LS12# |
2 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L,2LT#..LS12# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L,2LT#..LS12# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L,2LT#..LS12# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54120 |
2L,2LT#..LS12# |
1 | ||
| 23921-54121 |
2L,2LT#..LS12# |
1 | ||
| Common parts | ||||
| 23347-54010 | ||||
| 91611-40835 | ||||
| 91615-40816 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8605- )2L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54260 |
2L,2LT#..LS12# |
1 | ||
| 23301-54180 |
2L,2LT#..LS12# W/FUEL HEATER |
1 | ||
| 23301-64010 |
2L,2LT#..LS12# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54260 |
2L,2LT#..LS12# |
1 | ||
| 23301-54180 |
2L,2LT#..LS12# W/FUEL HEATER |
1 | ||
| 23301-64010 |
2L,2LT#..LS12# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L,2LT#..LS12# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L,2LT#..LS12# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L,2LT#..LS12# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L,2LT#..LS12# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54120 |
2L,2LT#..LS12# |
1 | ||
| 23921-54121 |
2L,2LT#..LS12# |
1 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 23347-54010 | ||||
| 91611-40835 | ||||
| 91615-40816 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
