LS120G-SWMFX (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )2L..MTM

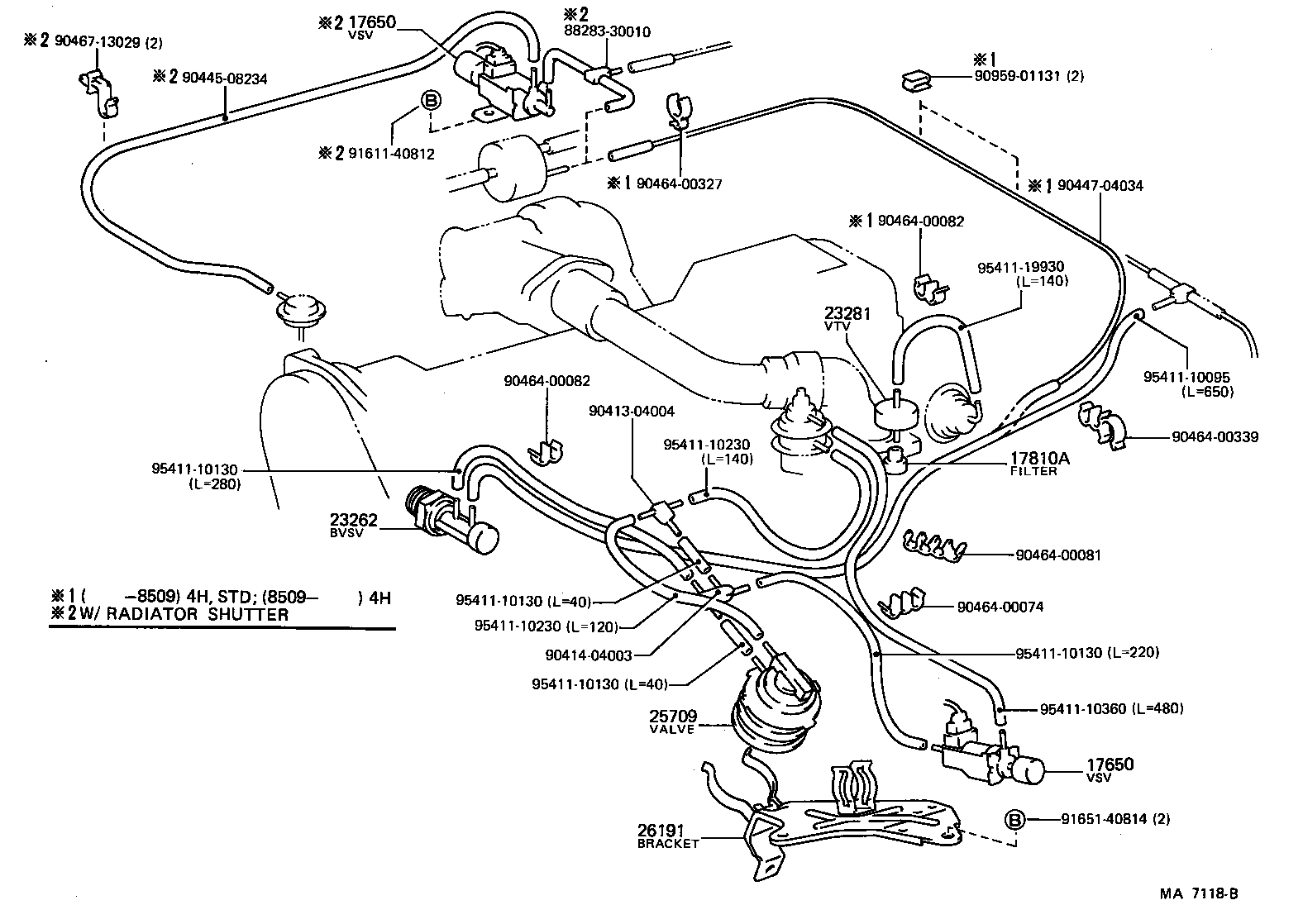

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30110 |
2L,2LT..LS12# HAC |
1 | ||
| 89570-30080 |
2L,2LT#..LS12# W/RADIATOR SHUTTER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30110 |
2L,2LT..LS12# HAC |
1 | ||
| 89570-30080 |
2L,2LT#..LS12# W/RADIATOR SHUTTER |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
2L,2LT..LS12#..MTM |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
2L,2LT..LS12# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
2L,2LT..LS12#..MTM |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-37010 |
2L,2LT..LS12# |
1 | ||
| 26191 - BRACKET, INTAKE AIR CONTROL VALVE | ||||
| 26191-54020 |
2L,2LT..LS12#..MTM |
1 | ||
| Common parts | ||||
| 88283-30010 | ||||
| 90413-04004 | ||||
| 90414-04003 | ||||
| 90445-08234 | ||||
| 90447-04034 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00327 | ||||
| 90464-00339 | ||||
| 90467-13029 | ||||
| 90959-01131 | ||||
| 91611-40812 | ||||
| 91651-40814 | ||||
| 95411-10095 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||
(8308- )2LT

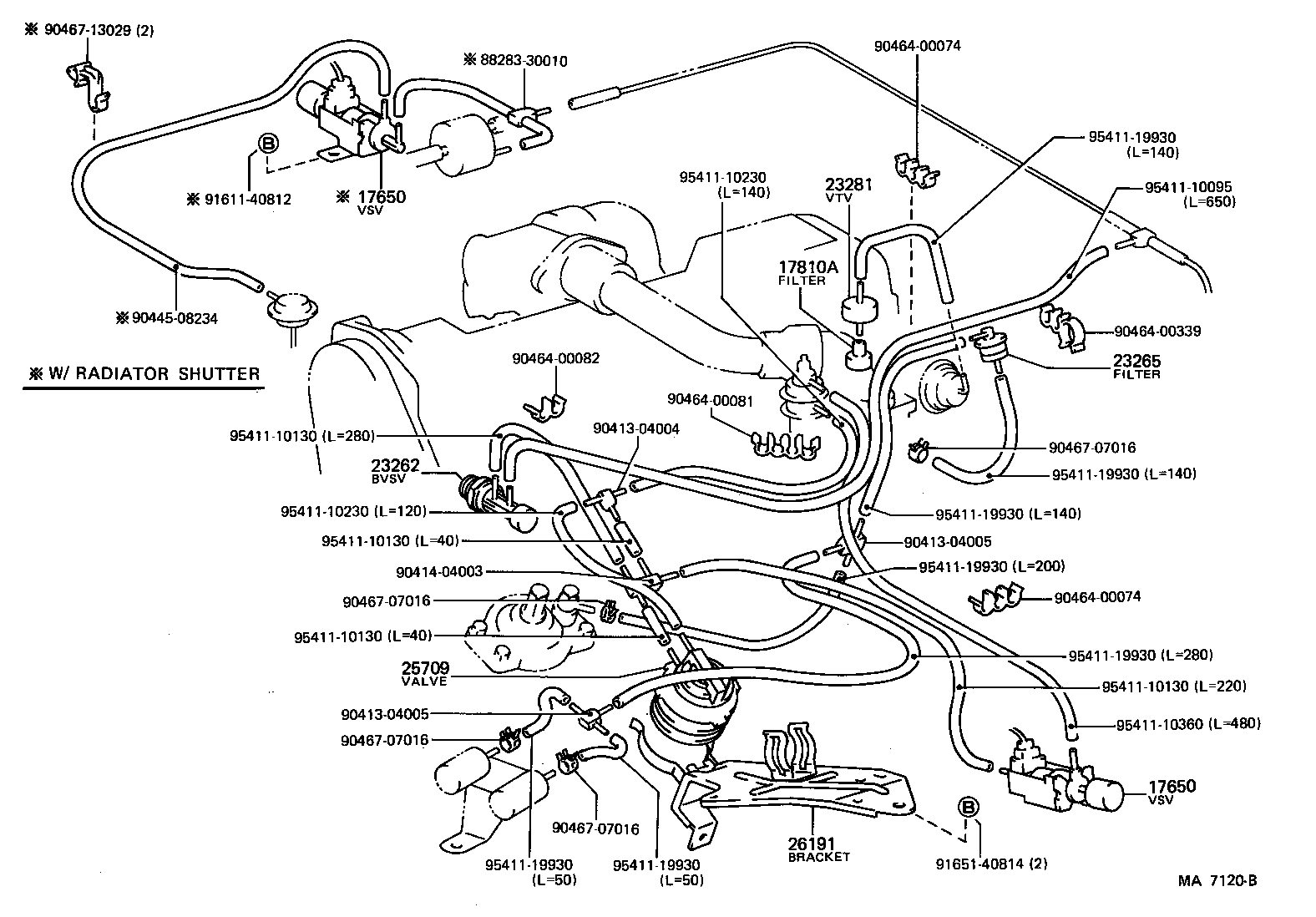

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30110 |
2L,2LT..LS12# HAC |
1 | ||
| 89570-30080 |
2L,2LT#..LS12# W/RADIATOR SHUTTER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30110 |
2L,2LT..LS12# HAC |
1 | ||
| 89570-30080 |
2L,2LT#..LS12# W/RADIATOR SHUTTER |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
2L,2LT..LS12#..MTM |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-13020 |
2L,2LT..LS12# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
2LT#..LS120 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
2L,2LT..LS12#..MTM |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-37010 |
2L,2LT..LS12# |
1 | ||
| 26191 - BRACKET, INTAKE AIR CONTROL VALVE | ||||
| 26191-54020 |
2L,2LT..LS12#..MTM |
1 | ||
| Common parts | ||||
| 88283-30010 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04003 | ||||
| 90445-08234 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00339 | ||||
| 90467-07016 | ||||
| 90467-13029 | ||||
| 91611-40812 | ||||
| 91651-40814 | ||||
| 95411-10095 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||
(8308- )2L,2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
