LS120-STPZT (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

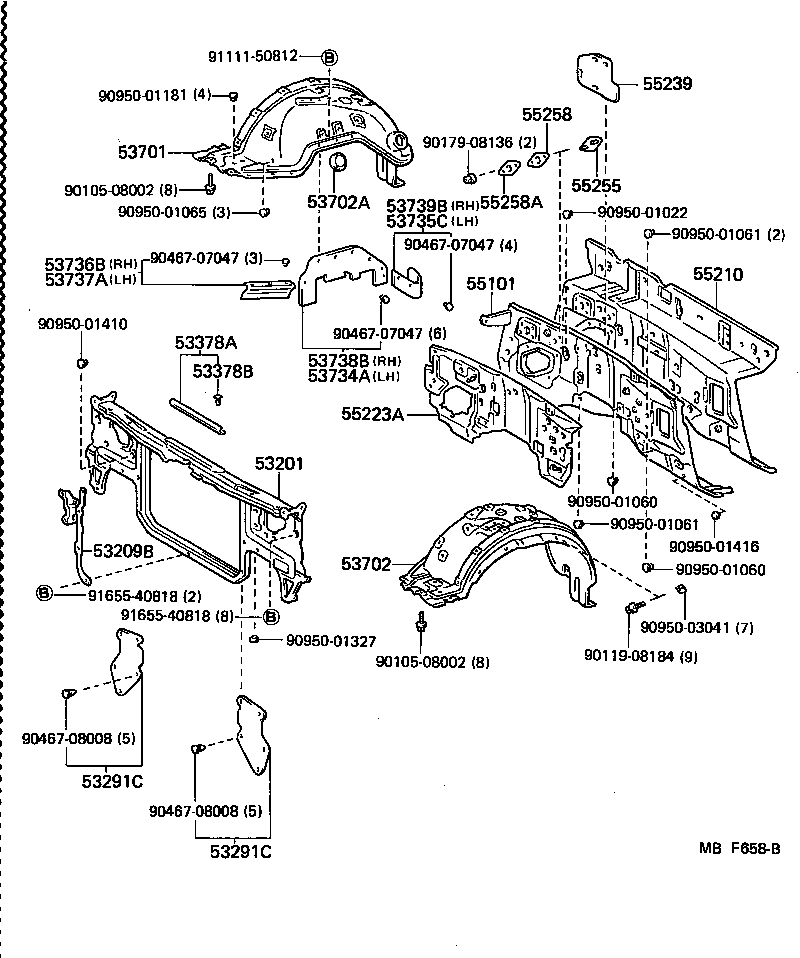

Click highlighted areas on diagram

diagram 53201 53209B 53291C 53291C 53378A 53378B 53701 53702 53702A 53734A 53735C 53736B 53737A 53738B 53739B 55101 55210 55223A 55239 55255 55258 55258A 9010508002 9010508002 9011908184 9017908136 9046707047 9046707047 9046707047 9046708008 9046708008 9095001022 9095001060 9095001060 9095001061 9095001061 9095001065 9095001181 9095001327 9095001410 9095001416 9095003041 9111150812 9165540818 9165540818
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-30900

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-30060

GS12#,LS12#,MS12#,YS120

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53292-30030

GS12#,LS12#,MS12#,YS120

LH

 1
53291-30030

GS12#,LS12#,MS12#,YS120

RH

 1
53291C - SEAL, RADIATOR SUPPORT TO FRAME
53292-30030

GS12#,LS12#,MS12#,YS120

LH

 1
53291-30030

GS12#,LS12#,MS12#,YS120

RH

 1
53378A - SEAL, HOOD AIR INTAKE DUCT
53378-30020

GS12#,LS12#,MS12#

 1
53378B - CLIP(FOR HOOD AIR INTAKE DUCT SEAL)
90467-08008

GS12#,LS12#,MS12#

 3
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-30580

LS12#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-30440

LS12#

 1
53702A - COVER, FRONT FENDER APRON(FOR SERVICE HOLE)
53799-30021

GS12#,LS12#,MS12#,YS120

 1
53734A - SEAL, FRONT FENDER APRON TO FRAME, NO.2 LH
53734-30030

GS12#,LS12#,MS12#,YS120

 1
53735C - SEAL, FRONT FENDER APRON TO FRAME, NO.3 LH
53735-30030

GS12#,LS12#,MS12#,YS120

 1
53736B - SEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53736-30030

GS12#,LS12#,MS12#,YS120

 1
53737A - SEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
53736-30030

GS12#,LS12#,MS12#,YS120

 1
53738B - SEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
53738-30050

GS12#,LS12#,MS12#,YS120

 1
53739B - SEAL, FRONT FENDER APRON TO FRAME, NO.3 RH
53739-30030

GS12#,LS12#,MS12#,YS120

 1
55101 - PANEL SUB-ASSY, DASH
55101-30660

LS12#..4FC

 1
55210 - INSULATOR ASSY, DASH PANEL
55211-30400

GS12#,LS12#,MS120,YS120..DLX,SAL,SDX,SPE,STD

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-30050

GS121,LS12#

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55213-30200

GS12#,LS12#,MS12#,YS120..4FC,5F

 1
Common parts
90105-08002
90119-08184
90179-08136
90467-07047
90467-08008
90950-01022
90950-01060
90950-01061
90950-01065
90950-01181
90950-01327
90950-01410
90950-01416
90950-03041
91111-50812
91655-40818
