LS120-STPZT (1983)
Toyota Crown
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30120 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30090 |
GS121,LS12# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09008 |
LS12#;GS120,121,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL |
15 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-30060 |
GS12#,LS12#,MS12#,YS120 |
4 | ||
| 53387 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30050 |
GS12#,LS12#,MS12# RH |
1 | ||
| 53382-30070 |
GS12#,LS12#,MS12# LH |
1 | ||
| 53381-30060 |
GS12#,LS12#,MS12# COLD SPEC |
1 | ||
| 53387 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30050 |
GS12#,LS12#,MS12# RH |
1 | ||
| 53382-30070 |
GS12#,LS12#,MS12# LH |
1 | ||
| 53381-30060 |
GS12#,LS12#,MS12# COLD SPEC |
1 | ||
| 53387 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30050 |
GS12#,LS12#,MS12# RH |
1 | ||
| 53382-30070 |
GS12#,LS12#,MS12# LH |
1 | ||
| 53381-30060 |
GS12#,LS12#,MS12# COLD SPEC |
1 | ||
| 53387A - CLIP(FOR HOOD TO RADIATOR SUPPORT SET) | ||||
| 90467-08011 |
GS12#,LS12#,MS12# |
8 | ||
| 90467-08011 |
GS12#,LS12#,MS12# COLD SPEC |
9 | ||
| 53387A - CLIP(FOR HOOD TO RADIATOR SUPPORT SET) | ||||
| 90467-08011 |
GS12#,LS12#,MS12# |
8 | ||
| 90467-08011 |
GS12#,LS12#,MS12# COLD SPEC |
9 | ||
| 53387A - CLIP(FOR HOOD TO RADIATOR SUPPORT SET) | ||||
| 90467-08011 |
GS12#,LS12#,MS12# |
8 | ||
| 90467-08011 |
GS12#,LS12#,MS12# COLD SPEC |
9 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3A240 |
GS120,121,LS120,MS120..HT..(SAL,SPE) |
1 | ||
| 53801-3A360 |
GS120,121,LS120,MS120..HT..(SAL,SPE) W/*DM |
1 | ||
| 53801G - SPACER, FRONT FENDER TO COWL PANEL | ||||
| 53878-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3A040 |
GS120,121,LS120,MS120..HT..(SAL,SPE) |
1 | ||
| 53802-3A080 |
GS120,121,LS120,MS120..HT..(SAL,SPE) W/*DM |
1 | ||
| 53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH | ||||
| 53851-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH | ||||
| 53852-30010 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30020 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30020 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53903-30160 |
GS120,121,LS120,MS12#..HT |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53904-30160 |
GS120,121,LS120,MS12#..HT |
1 | ||
| Common parts | ||||
| 55738-30010 | ||||
| 90176-06015 | ||||
| 90183-08001 | ||||
| 90950-01410 | ||||
| 91655-40818 | ||||
| 91665-40818 | ||||

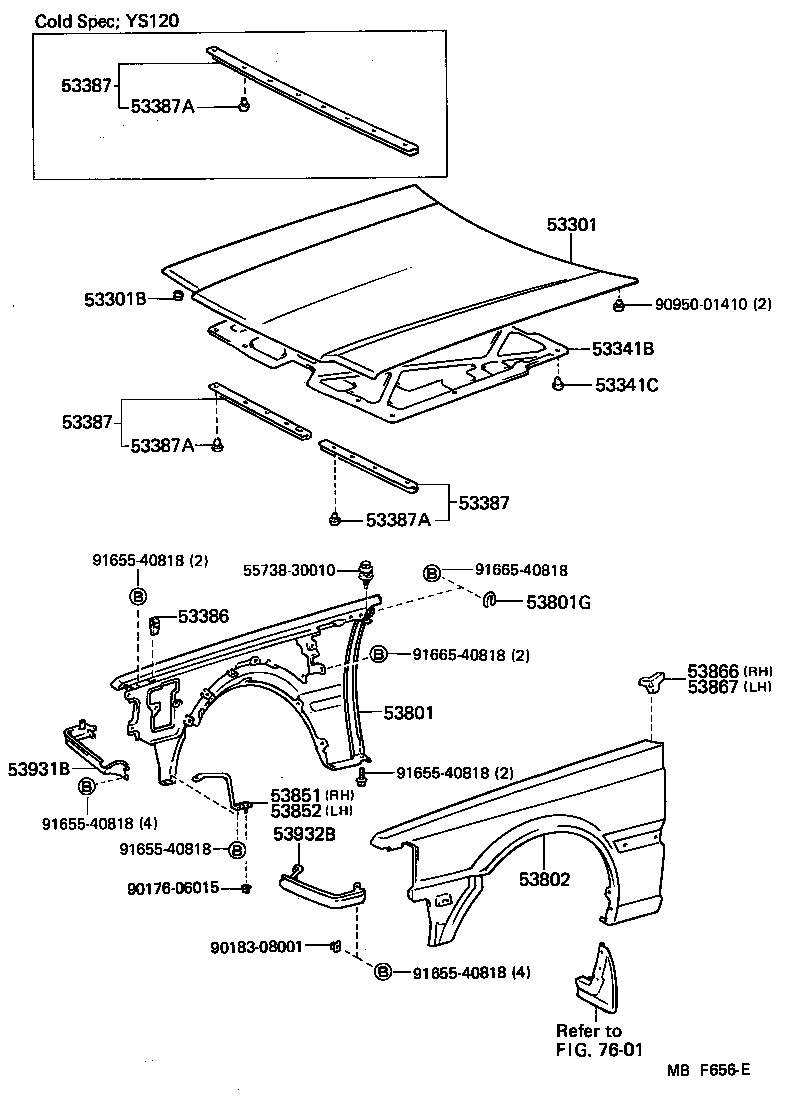

| Linked diagrams | ||||
| 7601 | ||||
