LS120-STPZT (1983)

Toyota Crown

Production Aug 1983 - Aug 1984
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

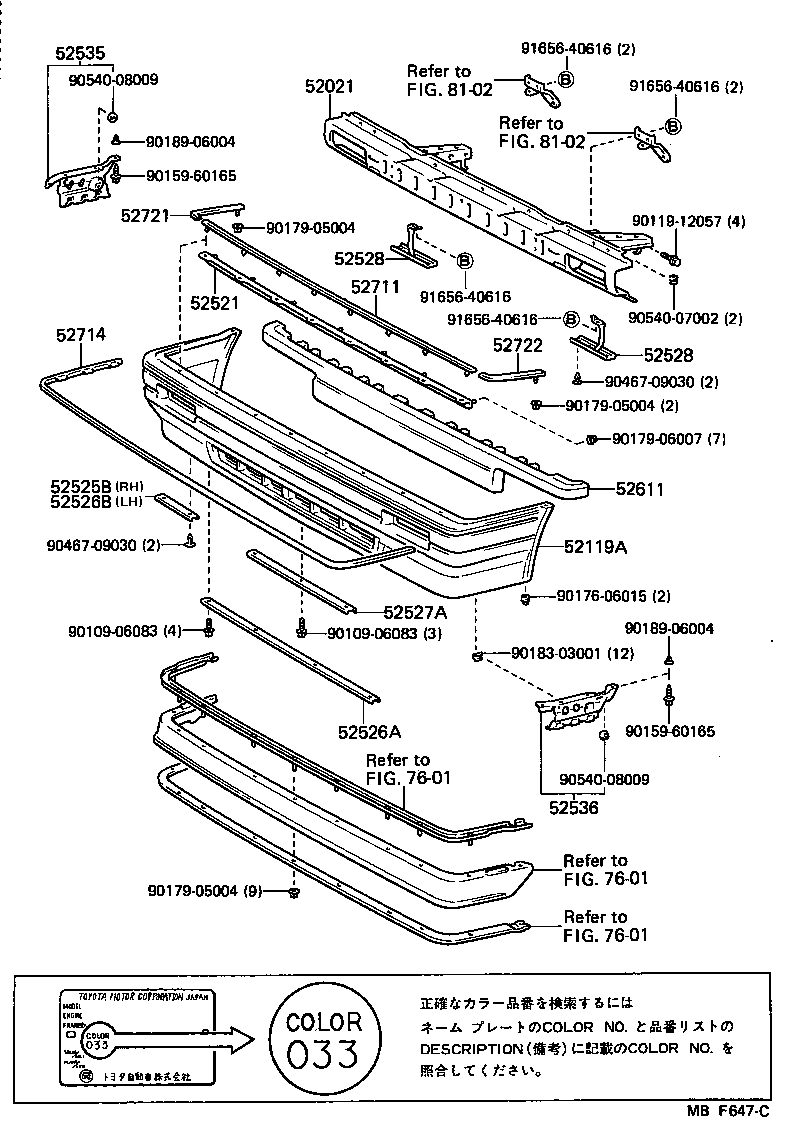

Click highlighted areas on diagram

diagram 52021 52119A 52521 52525B 52526A 52526B 52527A 52528 52528 52535 52536 52611 52711 52714 52721 52722 7601 7601 7601 8102 8102 9010906083 9010906083 9011912057 9015960165 9015960165 9017606015 9017905004 9017905004 9017905004 9017906007 9018303001 9018906004 9018906004 9046709030 9046709030 9054007002 9054008009 9054008009 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-30070

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52119A - COVER, FRONT BUMPER
52119-3005005

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

LIGHT BEIGE-M,LIGHT BEIGE METALLIC,4E3 ,2R5 ,2R3

 1
52119-3005006

GS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)

DEEP BROWN-M,BROWN,490

 1
52119-3005008

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

SUPER WHITE,IVORY,035

 1
52119-3005001

GS120,121,LS120,MS120..(HT,SED)..(ROY,SAL,SDX,SPE)

BLACK,BLACK,202

 1
52119-3005004

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

DARK BLUE-M,BLUE,869

 1
52119-3005002

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

WINE RED-M,RED/MAROON,3E2 ,2V6

 1
52119-3005003

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

SILVER-M,GRAY,150

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-30020

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52567-30010

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-30020

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52567-30010

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-30010

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-30010

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-30010

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30040

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-30040

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30020

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52711 - MOULDING, FRONT BUMPER
52711-30020

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL

 1
52714 - PLUG, FRONT BUMPER MOULDING, LH
52714-30010

GS120,121,LS120,MS120..ROY,SAL,SDX,SPE,SSL

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-30010

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52722-30010

GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL

 1
Common parts
90109-06083
90119-12057
90159-60165
90176-06015
90179-05004
90179-06007
90183-03001
90189-06004
90467-09030
90540-07002
90540-08009
91656-40616
Linked diagrams
7601
8102
