LS120-STPZT (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1984
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

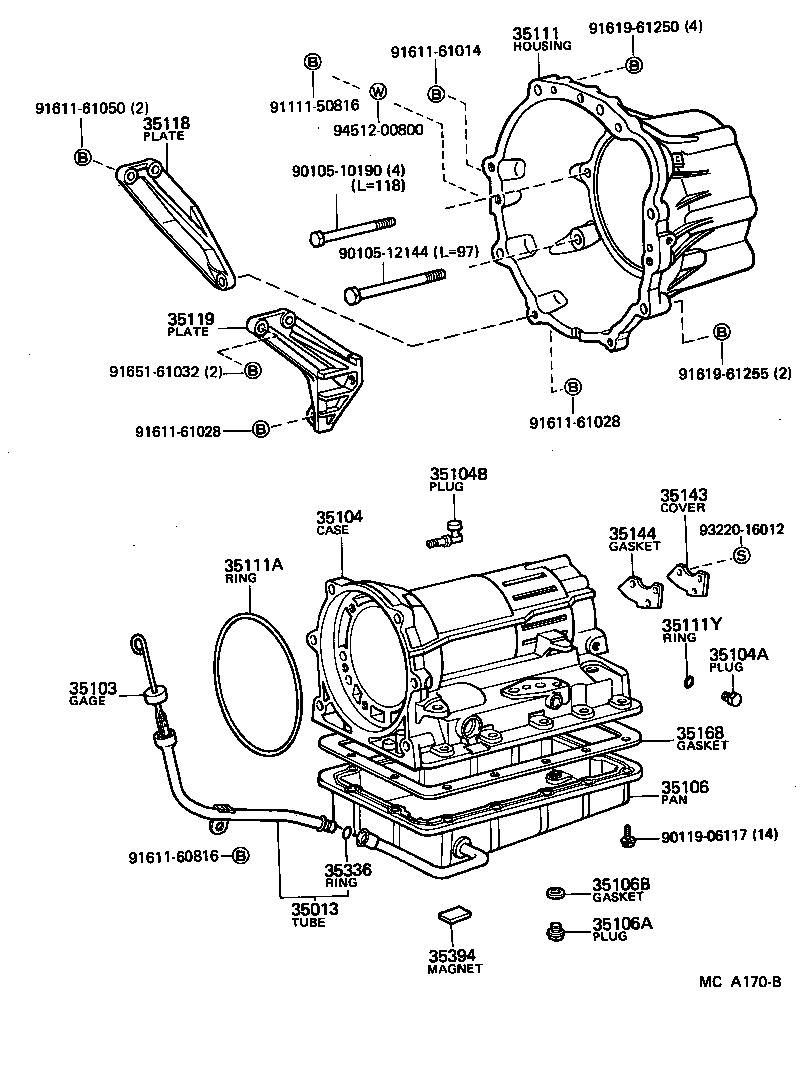

(8308- )LS12#..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30080 |
LS12#..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30101 |
LS12#..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26020 |
GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS120,121,LS12#,MS12#..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03069 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30040 |
LS12#..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22060 |
LS12#..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS120,121,LS12#,MS12#..ATM |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-25020 |
LS12#..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-25020 |
LS12#..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GS120,121,LS12#,MS12#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GS120,121,LS12#,MS12#..ATM |
4 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 91111-50816 | ||||
| 91611-60816 | ||||
| 91611-61014 | ||||
| 91611-61028 | ||||
| 91611-61050 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61032 | ||||
| 93220-16012 | ||||
| 94512-00800 | ||||
