LS120-STPGT (1983)
Toyota Crown
(8308- )GS120,121,LS120,MS12#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58902-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 58268 - BRACKET, CONSOLE BOX SUPPORT, REAR | ||||
| 58994-30020 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-3021002 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58811-3021004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 58811-3021005 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58823 - PANEL, CONSOLE, REAR | ||||
| 58903-3008002 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58903-3008005 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58903-3008004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 58824D - BOX, CONSOLE COIN | ||||
| 58824-3003002 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58824-3003005 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58824-3003004 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-3004005 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58831-3004002 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58831-3004004 |
GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 90541-04079 |
GS120,121,LS120,MS12#..4FC |
2 | ||
| 58895 - COVER, SWITCH HOLE, NO.1 | ||||
| 55549-3006002 |
GS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55549-3006004 |
GS120,121,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 55549-3006005 |
GS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3008004 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 58905-3008005 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905-3008002 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-3005002 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58901-3005004 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE,SSL) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-3005005 |
GS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30030 |
GS12#,LS12#,MS12#,YS120..4FC,5F |
1 | ||
| Common parts | ||||
| 91666-40618 | ||||
| 93530-54012 | ||||
| 93540-14012 | ||||
| 93540-54010 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||

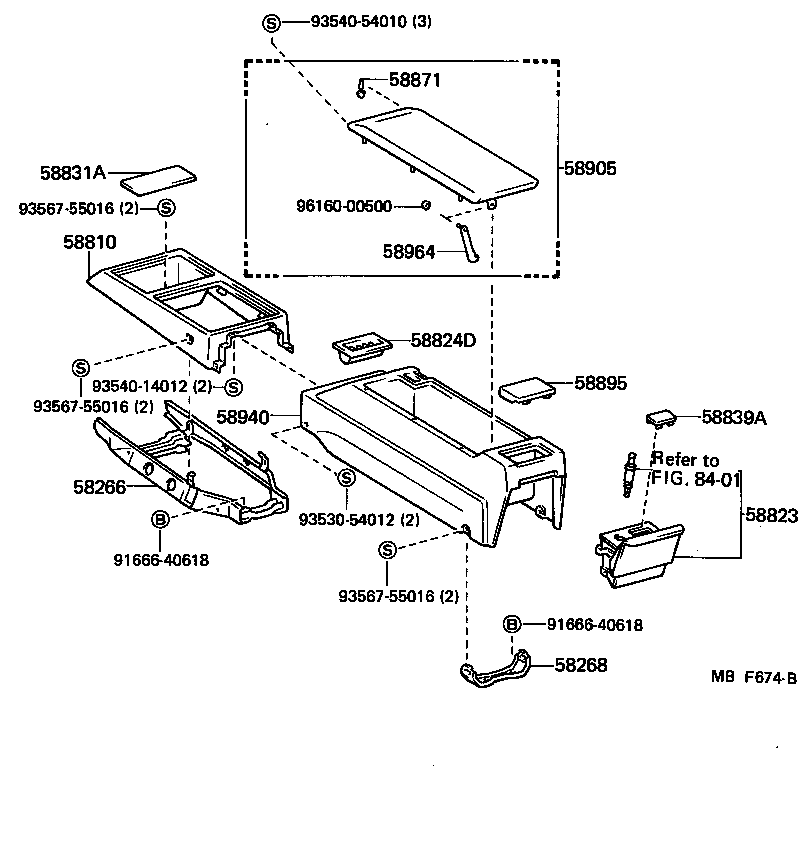

| Linked diagrams | ||||
| 8401 | ||||
