LS120-STMZX (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS126..DLX ; (8308- )GS12#,LS120,YS120..5F

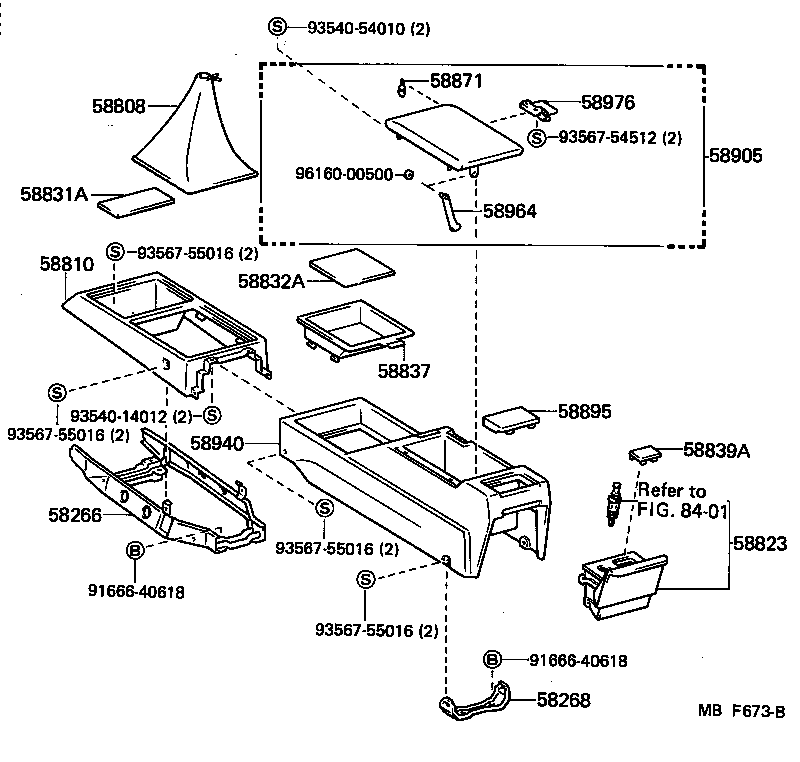

Click highlighted areas on diagram

diagram 58266 58268 58808 58810 58823 58831A 58832A 58837 58839A 58871 58895 58905 58940 58964 58976 8401 9166640618 9166640618 9354014012 9354054010 9356754512 9356755016 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58902-30020

GS12#,LS12#,MS12#,YS120..4FC,5F

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58994-30020

GS12#,LS12#,MS12#,YS120..4FC,5F

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3006002

GS120,121,LS120..5F..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58808-3006012

GS120,121,LS120..5F..(ROY,SAL,SPE)

DEEP MAROON,DEEP MAROON,TRIM3#

 1
58808-3006022

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58808-3006005

GS120,121,LS120..5F..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58808-3006004

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58808-3006006

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58810 - CONSOLE ASSY
58811-3021002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58811-3021004

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58811-3021006

GS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58811-3021012

GS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58811-3021005

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58823 - PANEL, CONSOLE, REAR
58903-3008002

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58903-3008006

GS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58903-3008005

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58903-3008004

GS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58903-3008012

GS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58837 - PANEL, CONSOLE, UPPER REAR
58822-3015005

GS120,121,LS120..5F..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58822-3015012

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58822-3015002

GS120,121,LS120..5F..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58822-3015006

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58822-3015004

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58871 - CUSHION, CONSOLE BOX
90541-04079

LS126..DLX;GS12#,LS120,YS120..5F

 1
58895 - COVER, SWITCH HOLE, NO.1
55549-3006002

GS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
55549-3006004

GS120,121,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
55549-3006005

GS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
55549-3006012

GS120,121,LS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
55549-3006006

GS120,121,LS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3009005

GS120,121,LS120..5F..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58905-3009002

GS120,121,LS120..5F..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58905-3009006

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58905-3009004

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58905-3009012

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58940 - CONSOLE ASSY, REAR
58901-3006005

GS120,121,LS120..5F..(ROY,SAL,SPE)

BEIGE,BEIGE,TRIM4#

 1
58901-3006002

GS120,121,LS120..5F..(ROY,SAL,SPE)

DEEP MAROON,RED/MAROON,TRIM3#

 1
58901-3006004

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BLUE,BLUE,TRIM8#

 1
58901-3006006

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

BROWN,BROWN,TRIM4#

 1
58901-3006012

GS120,121,LS120..5F..(ROY,SAL,SPE,SSL)

MAROON,MAROON,TRIM3#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

LS126..DLX;GS12#,LS120,YS120..5F

 1
58964-30030

GS12#,LS12#,MS12#,YS120..4FC,5F

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

LS126..DLX;GS12#,LS120,YS120..5F

 1
Common parts
91666-40618
93540-14012
93540-54010
93567-54512
93567-55016
96160-00500
Linked diagrams
8401
