LS120-STMZX (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8510)YS120 ; (8308- )GS120,LS120,MS120

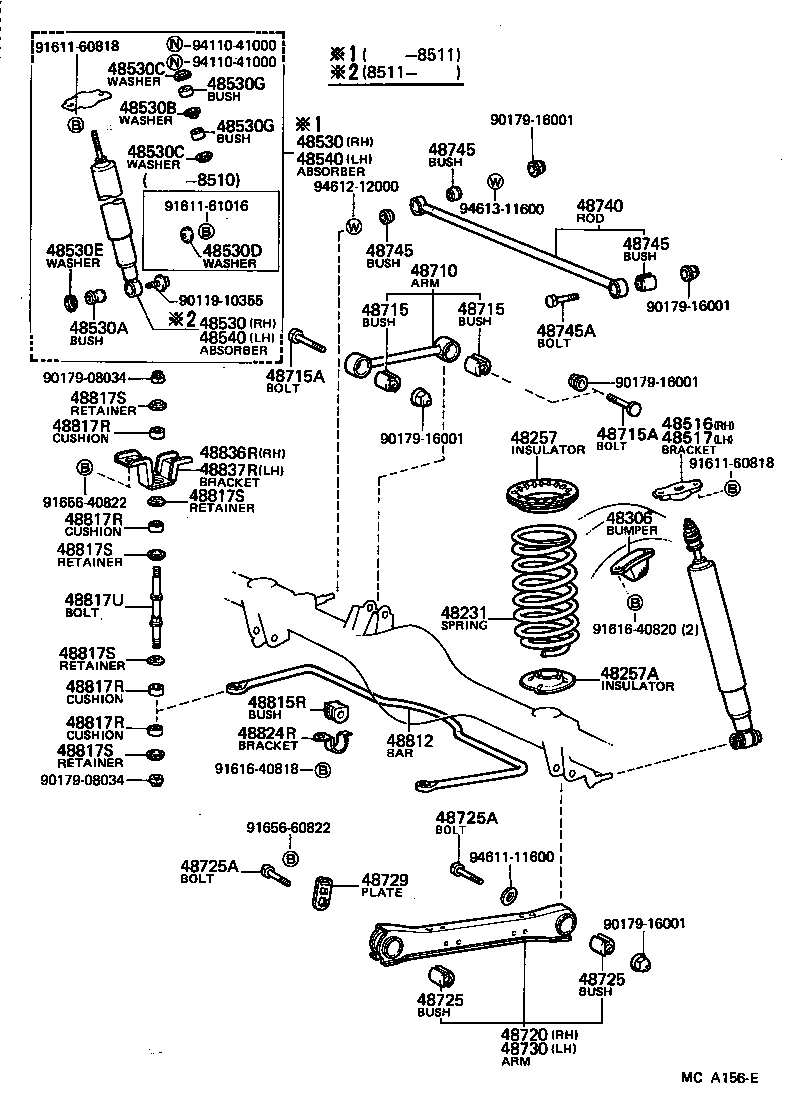

Click highlighted areas on diagram

diagram 48231 48257 48257A 48306 48516 48517 48530 48530 48530A 48530B 48530C 48530C 48530D 48530E 48530G 48530G 48540 48540 48710 48715 48715 48715A 48715A 48720 48725 48725 48725A 48725A 48729 48730 48740 48745 48745 48745 48745A 48812 48815R 48817R 48817R 48817R 48817R 48817S 48817S 48817S 48817S 48817S 48817U 48824R 48836R 48837R 9011910355 9017908034 9017908034 9017916001 9017916001 9017916001 9017916001 9017916001 9161160818 9161160818 9161161016 9161640818 9161640820 9165640822 9165660822 9411041000 9411041000 9461111600 9461212000 9461311600
Part # Description Qty Price
48231 - SPRING, COIL, REAR
48231-30440

LS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)

 2
48257 - INSULATOR, REAR COIL SPRING
48257-30020

GS120,LS120,MS120,YS120

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-30010

GS120,LS120,MS120,YS120

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-30070

GS120,LS120,MS120..(HT,SED)..(DSL,EFI,TBO,TD,TDE)

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-30030

GS120,LS120,MS120,YS120

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48516-30030

GS120,LS120,MS120,YS120

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39565

LS120..HT,SED

 1
48531-30300

GS120,LS120,MS120..HT,SED

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39565

LS120..HT,SED

 1
48531-30300

GS120,LS120,MS120..HT,SED

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001

GS12#,LS12#,MS12#,YS120

 2
90385-16004

GS12#,LS12#,MS12#

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02007

GS120,126,LS12#,MS120,YS120

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

GS120,126,LS12#,MS120,YS120

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02002

GS120,126,LS12#,MS120,YS120

 4
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

GS12#,LS12#,MS12#,YS120

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

GS12#,LS12#,MS12#,YS120

 2
90948-03004

GS12#,LS12#,MS12#

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

GS126,LS12#

UPR

 2
90540-10002

GS126,LS12#

LWR

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01003

GS126,LS12#

UPR

 2
90540-10002

GS126,LS12#

LWR

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39565

LS120..HT,SED

 1
48531-30300

GS120,LS120,MS120..HT,SED

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39565

LS120..HT,SED

 1
48531-30300

GS120,LS120,MS120..HT,SED

 1
48710 - ARM ASSY, UPPER CONTROL
48710-30080

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 1
48715 - BUSH, UPPER CONTROL ARM
48702-30080

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 2
48715 - BUSH, UPPER CONTROL ARM
48702-30080

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-16018

GS120,LS120,MS120,YS120

 2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-16018

GS120,LS120,MS120,YS120

 2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-30100

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 1
48725 - BUSH, LOWER CONTROL ARM
48702-30080

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 4
48725 - BUSH, LOWER CONTROL ARM
48702-30080

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 4
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-16018

GS120,LS120,MS120,YS120

HOUSING SIDE

 2
90101-16016

GS120,LS120,MS120,YS120

FRAME SIDE

 2
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-16018

GS120,LS120,MS120,YS120

HOUSING SIDE

 2
90101-16016

GS120,LS120,MS120,YS120

FRAME SIDE

 2
48729 - PLATE, LOWER CONTROL ARM BOLT LOCK
48729-30020

GS120,LS120,MS120,YS120

 2
48730 - ARM ASSY, LOWER CONTROL, LH
48720-30100

GS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)

 1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-30050

GS120,LS120,MS120,YS120

 1
48745 - BUSH, LATERAL CONTROL ROD
48706-22010

GS120,LS120,MS120,YS120

FRAME X ROD

 1
90385-20048

GS120,LS120,MS120,YS120

HOUSING X ROD

 2
48745 - BUSH, LATERAL CONTROL ROD
48706-22010

GS120,LS120,MS120,YS120

FRAME X ROD

 1
90385-20048

GS120,LS120,MS120,YS120

HOUSING X ROD

 2
48745 - BUSH, LATERAL CONTROL ROD
48706-22010

GS120,LS120,MS120,YS120

FRAME X ROD

 1
90385-20048

GS120,LS120,MS120,YS120

HOUSING X ROD

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-16017

GS120,LS120,MS120,YS120

 1
48812 - BAR, STABILIZER, REAR
48812-30090

LS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-30070

LS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

GS121,LS120,MS120,125

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

GS121,LS120,MS120,125

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

GS121,LS120,MS120,125

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

GS121,LS120,MS120,125

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

GS121,LS120,MS120,125

T=1.2

 8
90948-02025

GS121,LS120,MS120,125

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

GS121,LS120,MS120,125

T=1.2

 8
90948-02025

GS121,LS120,MS120,125

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

GS121,LS120,MS120,125

T=1.2

 8
90948-02025

GS121,LS120,MS120,125

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

GS121,LS120,MS120,125

T=1.2

 8
90948-02025

GS121,LS120,MS120,125

T=1.0

 2
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02024

GS121,LS120,MS120,125

T=1.2

 8
90948-02025

GS121,LS120,MS120,125

T=1.0

 2
48817U - BOLT(FOR REAR STABILIZER)
48819-12010

LS120,MS120

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48824-22010

LS120,MS120

 2
48836R - BRACKET, REAR STABILIZER END, RH
48836-30020

LS120,MS120

 1
48837R - BRACKET, REAR STABILIZER END, LH
48837-30020

LS120,MS120

 1
Common parts
90119-10355
90179-08034
90179-16001
91611-60818
91611-61016
91616-40818
91616-40820
91656-40822
91656-60822
94110-41000
94611-11600
94612-12000
94613-11600
