LS120-STMZX (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1987
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )2L,2LT

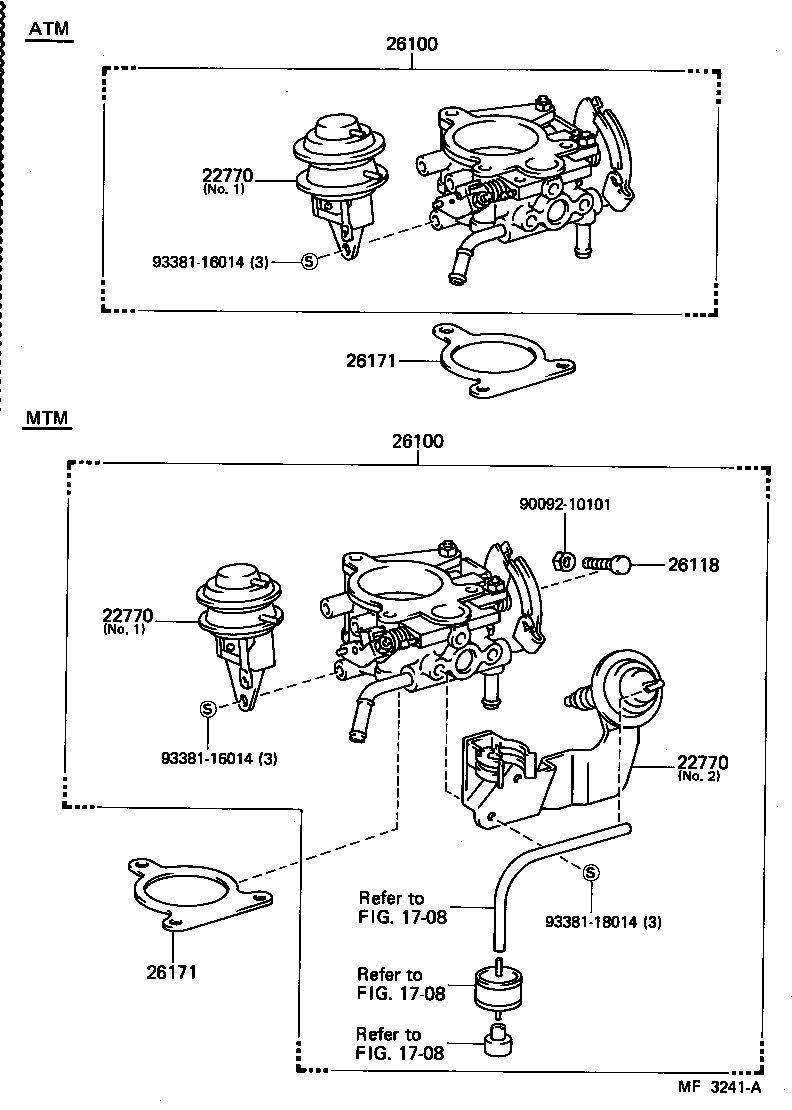

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54030 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 26133-54070 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54020 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54040 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54030 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 26133-54070 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54020 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54040 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54030 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 26133-54070 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54020 |
2L,2LT..LS12# NO.1 |
1 | ||
| 26133-54040 |
2L,2LT..LS12#..MTM NO.2 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-54031 |
2L,2LT..LS12#..MTM |
1 | ||
| 26100-54032 |
2L,2LT..LS12#..MTM |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-54031 |
2L,2LT..LS12#..MTM |
1 | ||
| 26100-54032 |
2L,2LT..LS12#..MTM |
1 | ||
| 26118 - SCREW, STOP PLATE ADJUSTING | ||||
| 26118-54030 |
2L,2LT..LS12#..MTM |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-54010 |
2L,2LT#..LS12# |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-54010 |
2L,2LT#..LS12# |
1 | ||
| Common parts | ||||
| 90092-10101 | ||||
| 93381-16014 | ||||
| 93381-18014 | ||||
| Linked diagrams | ||||
| 1708 | ||||
