LS120-STMXX (1985)
Toyota Crown
Production
Sep 1985
-
Aug 1987
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )

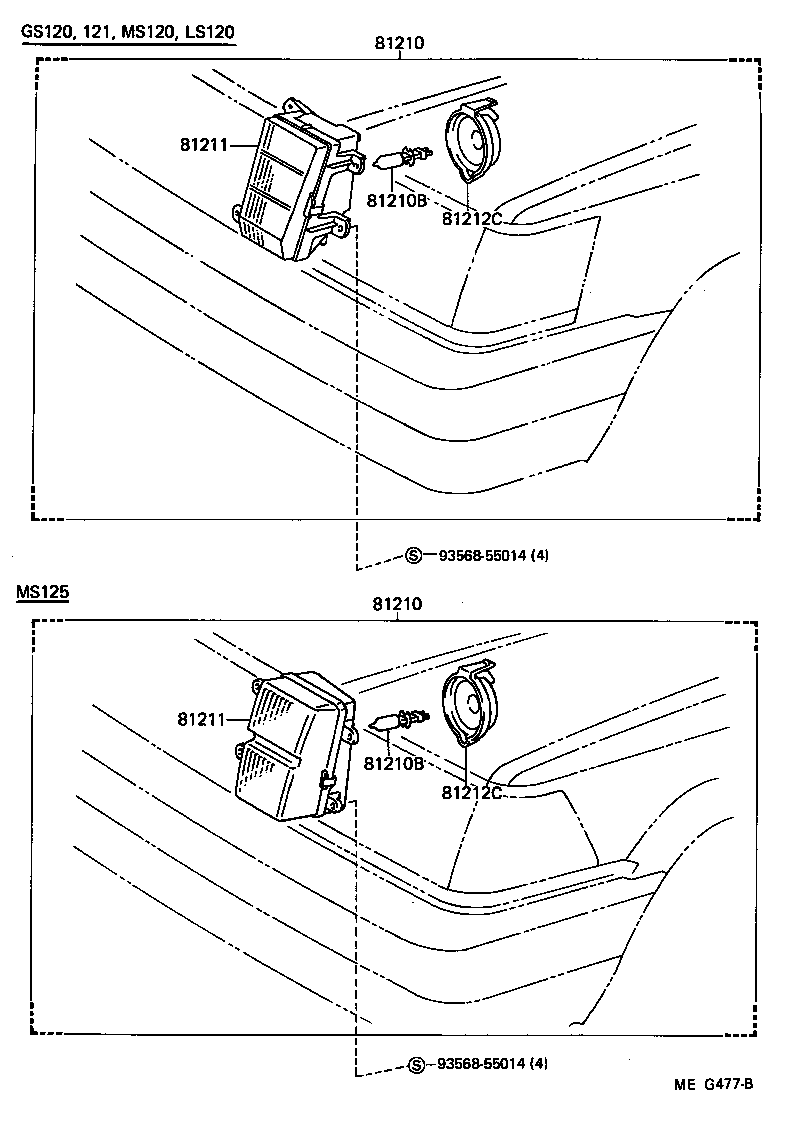

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-30031 |
GS120,121,LS120..HT RH |
1 | ||
| 81220-30021 |
GS120,121,LS120..HT LH |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-30031 |
GS120,121,LS120..HT RH |
1 | ||
| 81220-30021 |
GS120,121,LS120..HT LH |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13031 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL 12V 55W,ﾊﾛｹﾞﾝ,12V 55W |
2 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13031 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL 12V 55W,ﾊﾛｹﾞﾝ,12V 55W |
2 | ||
| 81211 - LENS, FOG LAMP | ||||
| 81211-30031 |
GS120,121,LS120..HT RH |
1 | ||
| 81221-30021 |
GS120,121,LS120..HT LH |
1 | ||
| 81211 - LENS, FOG LAMP | ||||
| 81211-30031 |
GS120,121,LS120..HT RH |
1 | ||
| 81221-30021 |
GS120,121,LS120..HT LH |
1 | ||
| 81212C - COVER, FOG LAMP | ||||
| 81212-30030 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL |
2 | ||
| 81212C - COVER, FOG LAMP | ||||
| 81212-30030 |
GS120,121,LS120,MS12#..ROY,SAL,SDX,SPE,SSL |
2 | ||
| Common parts | ||||
| 93568-55014 | ||||
