LS120-STMGX (1983)

Toyota Crown

Production Aug 1983 - Sep 1985
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LS12#..5F

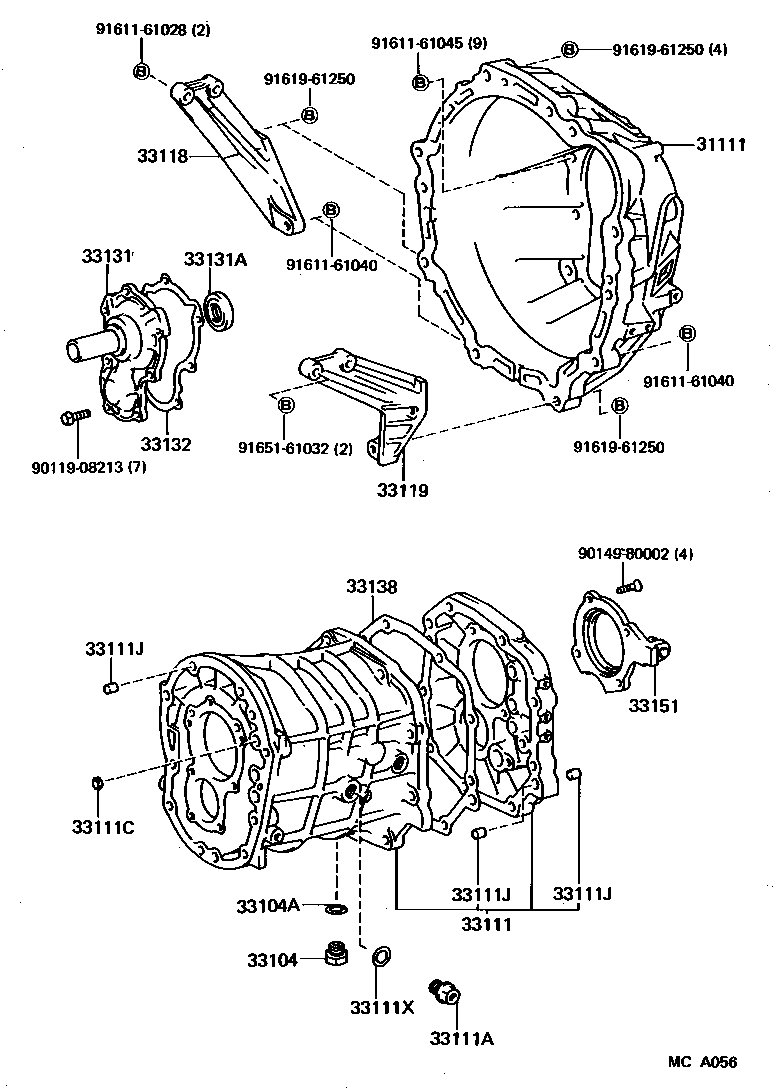

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9014980002 9161161028 9161161040 9161161040 9161161045 9161961250 9161961250 9161961250 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-22111

LS12#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GS12#,LS12#,MS120,YS120..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

GS12#,LS12#,MS120,YS120..MTM

 1
90430-18008

LS12#,YS120..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22030

LS12#..5F

 1
33101-22021

GS12#,LS12#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GS12#,LS12#,YS120..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GS12#,LS12#,MS120,YS120..MTM

外径=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS12#,LS12#,MS120,YS120..MTM

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS12#,LS12#,MS120,YS120..MTM

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GS12#,LS12#,MS120,YS120..MTM

長さ=16,外径=12

 6
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

GS12#,LS12#,MS120,YS120..MTM

 1
90430-18008

LS12#,YS120..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LS12#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-25020

LS12#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GS12#,LS12#,YS120..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GS12#,LS12#,MS120,YS120..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

GS12#,LS12#,YS120..5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

GS12#,LS12#,YS120..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GS12#,LS12#,YS120..5F

 1
Common parts
90119-08213
90149-80002
91611-61028
91611-61040
91611-61045
91619-61250
91651-61032
