LS120-SEPGT (1983)
Toyota Crown
(8308- )TDE

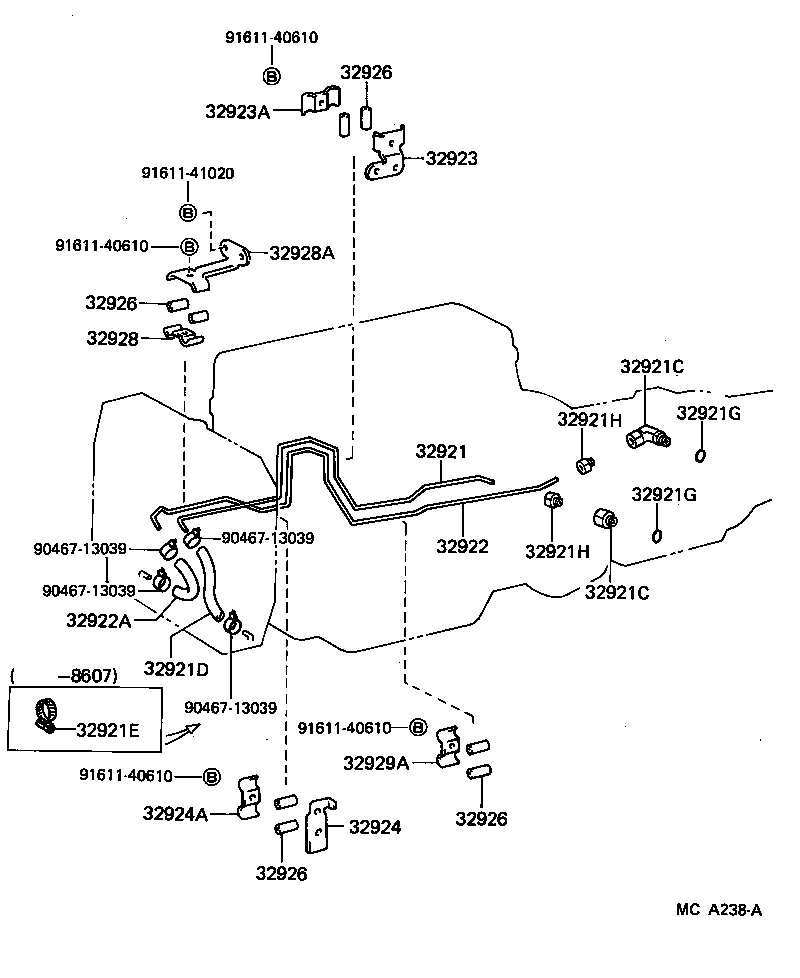

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-30310 |
LS120..TDE |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) INLET |
1 | ||
| 90407-14003 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14007 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) INLET |
1 | ||
| 90407-14003 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-22010 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
4 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 32921H - NUT, FLARE(FOR OIL COOLER TUBE) | ||||
| 90402-14004 |
GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-30310 |
LS120..TDE |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-30050 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-30090 |
LS12#..4FC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12085 |
LS12#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-30090 |
LS12#..4FC |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12085 |
LS12#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) 長さ=35,内径=8 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) 長さ=35,内径=8 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) 長さ=35,内径=8 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS120,121,LS12#..ATM..(DSL,EFI,TDE,TWC) 長さ=35,内径=8 |
8 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-30050 |
LS12#..4FC |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 32928-30060 |
LS12#..4FC |
1 | ||
| 32929A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12085 |
LS12#..4FC |
1 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-40610 | ||||
| 91611-41020 | ||||
