LS120-SEPGT (1983)
Toyota Crown
Production
Aug 1983
-
Aug 1984
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )2L,2LT

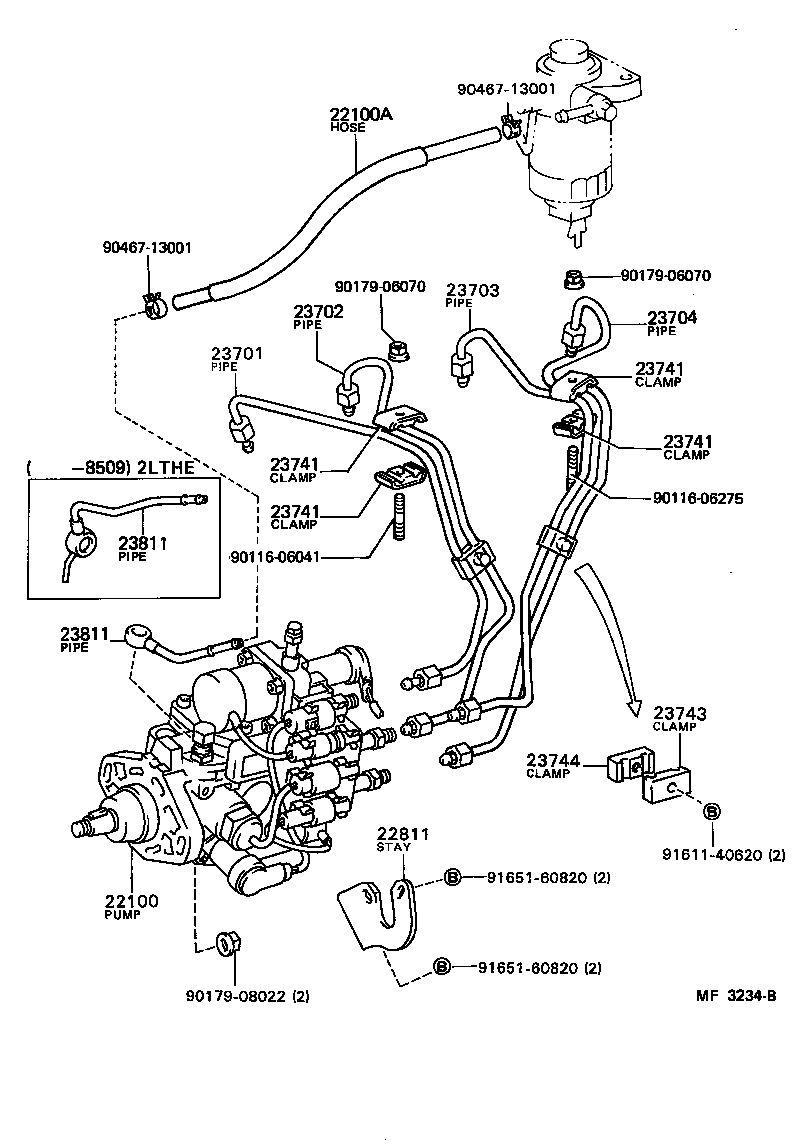

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54270 |
2LTE..LS120 |
1 | ||
| 22100-54260 |
2LT..LS120 |
1 | ||
| 22100-54271 |
2LTE..LS120 |
1 | ||
| 22100-54390 |
2L..LS12#..4FC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 90447-14011 |
2L,2LT#..LS12# 長さ=440 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54040 |
2L,2LT#..LS12# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54081 |
2L,2LT..LS12# |
1 | ||
| 23701-54090 |
2LTE,2LTHE..LS120 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54081 |
2L,2LT..LS12# |
1 | ||
| 23702-54090 |
2LTE,2LTHE..LS120 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54081 |
2L,2LT#..LS12# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54081 |
2L,2LT#..LS12# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
2L,2LT#..LS12# |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
2L,2LT#..LS12# |
2 | ||
| Common parts | ||||
| 90116-06275 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90467-13001 | ||||
| 91611-40620 | ||||
| 91651-60820 | ||||
(8308- )2LTE,2LTHE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54270 |
2LTE..LS120 |
1 | ||
| 22100-54260 |
2LT..LS120 |
1 | ||
| 22100-54271 |
2LTE..LS120 |
1 | ||
| 22100-54390 |
2L..LS12#..4FC |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 90447-14011 |
2L,2LT#..LS12# 長さ=440 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54040 |
2L,2LT#..LS12# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54081 |
2L,2LT..LS12# |
1 | ||
| 23701-54090 |
2LTE,2LTHE..LS120 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54081 |
2L,2LT..LS12# |
1 | ||
| 23702-54090 |
2LTE,2LTHE..LS120 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54081 |
2L,2LT#..LS12# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54081 |
2L,2LT#..LS12# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
2L,2LT#..LS12# |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
2L,2LT#..LS12# |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
2L,2LT#..LS12# |
2 | ||
| Common parts | ||||
| 90116-06041 | ||||
| 90116-06275 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90467-13001 | ||||
| 91611-40620 | ||||
| 91651-60820 | ||||
