LS120-SEPDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

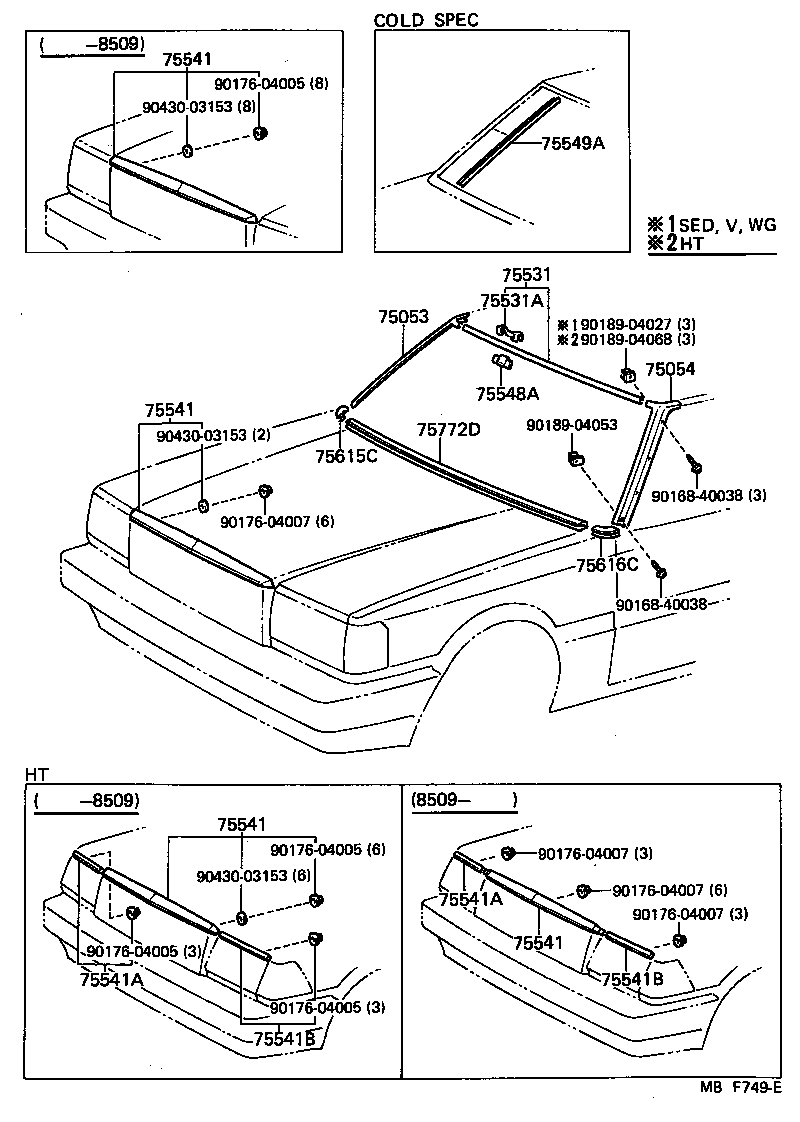

Click highlighted areas on diagram

diagram 75053 75054 75531 75531A 75541 75541 75541 75541 75541A 75541A 75541B 75541B 75548A 75549A 75615C 75616C 75772D 9016840038 9016840038 9017604005 9017604005 9017604005 9017604005 9017604007 9017604007 9017604007 9017604007 9018904027 9018904053 9018904068 9043003153 9043003153 9043003153
Part # Description Qty Price
75053 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH
75533-30170

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
75054 - GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH
75534-30150

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-30160

GS12#,LS12#,MS12#,YS120..SED,V,WG

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75546-32010

GS12#,LS12#,MS12#,YS120

 1
75546-32010

GS12#,LS12#,MS12#,YS120

 3
75541 - MOULDING, HOOD, FRONT
75770-39105

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75770-30101

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75541 - MOULDING, HOOD, FRONT
75770-39105

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75770-30101

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75541 - MOULDING, HOOD, FRONT
75770-39105

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75770-30101

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75541 - MOULDING, HOOD, FRONT
75770-39105

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75770-30101

GS12#,LS12#,MS120,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-22060

GS12#,LS12#,MS12#,YS120

 6
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-30030

GS12#,LS12#,MS12#,YS120..SED,V,WG

COLD SPEC

 1
75615C - MOULDING, FRONT FENDER, REAR RH
75615-30070

GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75616C - MOULDING, FRONT FENDER, REAR LH
75616-30070

GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
75772D - MOULDING, HOOD, REAR
75772-30070

GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(DLX,ROY,SAL,SDX)

 1
Common parts
90168-40038
90176-04005
90176-04007
90189-04027
90189-04053
90189-04068
90430-03153
