LS120-SEMFS (1985)

Toyota Crown

Production Sep 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )SED..DLX,ROY,SAL,SDX

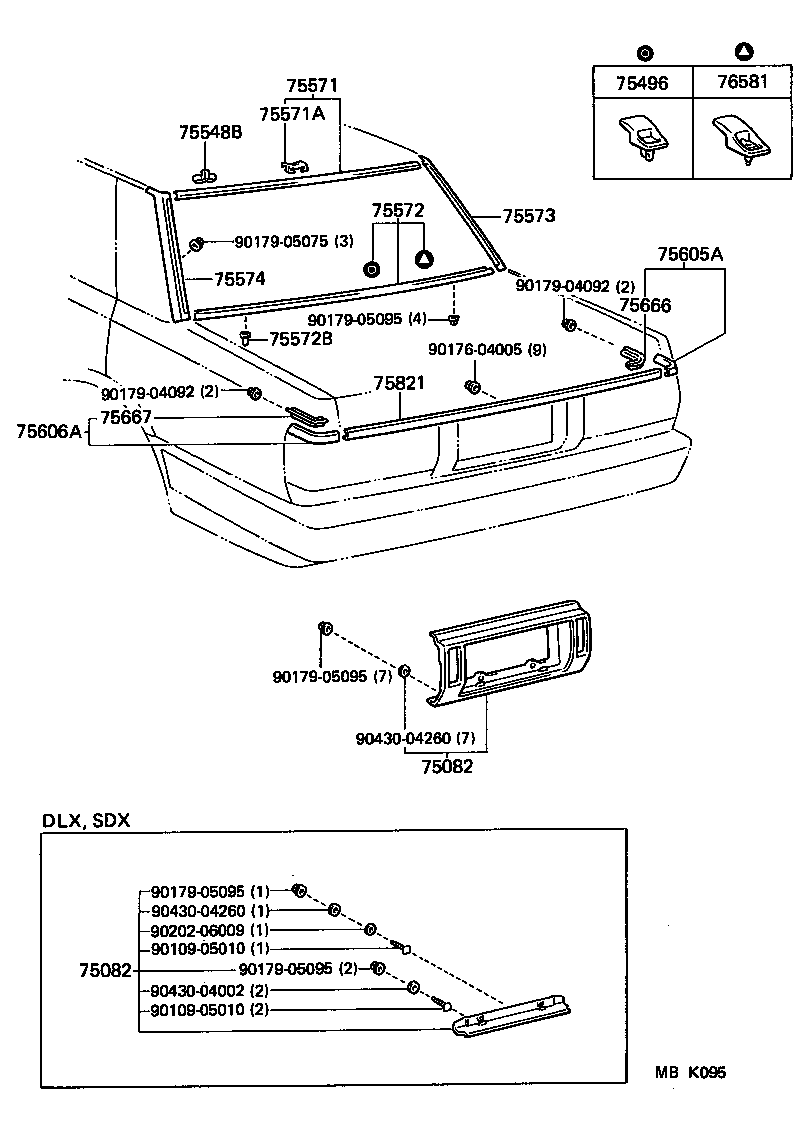

Click highlighted areas on diagram

diagram 75082 75082 75496 75548B 75571 75571A 75572 75572B 75573 75574 75605A 75606A 75666 75667 75821 76581 9010905010 9010905010 9017604005 9017904092 9017904092 9017905075 9017905095 9017905095 9017905095 9017905095 9020206009 9043004002 9043004260 9043004260
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75831-39015

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75831-39015

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-30020

GS120,121,LS120,MS12#,YS120..SED

 2
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-22060

GS120,121,LS120,MS12#,YS120..SED

 6
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-30180

GS120,121,LS120,MS12#,YS120..SED

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75546-32010

GS120,121,LS120,MS12#,YS120..SED

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-30130

GS120,121,LS120,MS12#,YS120..SED

 1
75572B - CLIP(FOR BACK WINDOW MOULDING SET)
67772-20021

GS120,121,LS120,MS12#,YS120..HT,SED

 2
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-30200

GS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-30200

GS120,121,LS120,MS12#..SED..(ROY,SAL,SDX)

 1
75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75605-39045

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75605-30120

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75606-30120

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75606-39045

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-30110

GS120,121,LS120,MS12#,YS120..SED..(DLX,ROY,SAL,SDX)

 1
75801-39075

GS120,LS120,MS120,YS120..SED..(DLX,SDX)

 1
76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING
76581-30030

GS120,121,LS120,MS12#,YS120..SED

 1
Common parts
90109-05010
90176-04005
90179-04092
90179-05075
90179-05095
90202-06009
90430-04002
90430-04260
