LS120-SEMDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

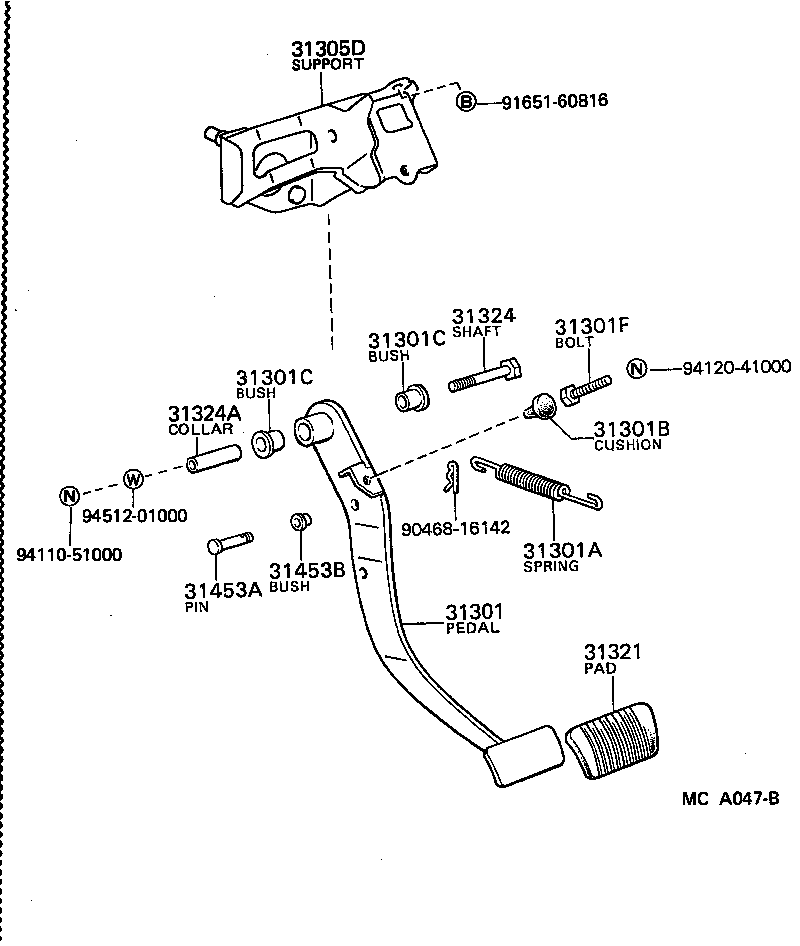

ILLUST NO. 1 OF 2(8308- )MTM..DSL,EFI

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305D 31321 31324 31324A 31453A 31453B 9046816142 9165160816 9411051000 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-30170

GS120,126,LS12#..MTM..(DSL,EFI)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-12026

GS120,126,LS12#..MTM..(DSL,EFI)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07010

GS12#,LS12#,MS120,YS120..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS12#,LS12#,MS120,YS120..MTM

 2
90386-13192

GS12#,LS12#,MS120,YS120..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GS12#,LS12#,MS120,YS120..MTM

 2
90386-13192

GS12#,LS12#,MS120,YS120..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GS12#,LS12#,MS120,YS120..MTM

 1
31305D - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-30130

GS120,126,LS12#..MTM..(DSL,EFI)

 1
31321 - PAD, CLUTCH PEDAL
31321-30040

GS12#,LS12#,MS120,YS120..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GS12#,LS12#,MS120,YS120..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GS12#,LS12#,MS120,YS120..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

GS12#,LS12#,MS120,YS120..MTM

長さ=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

GS12#,LS12#,MS120,YS120..MTM

 1
Common parts
90468-16142
91651-60816
94110-51000
94120-41000
94512-01000

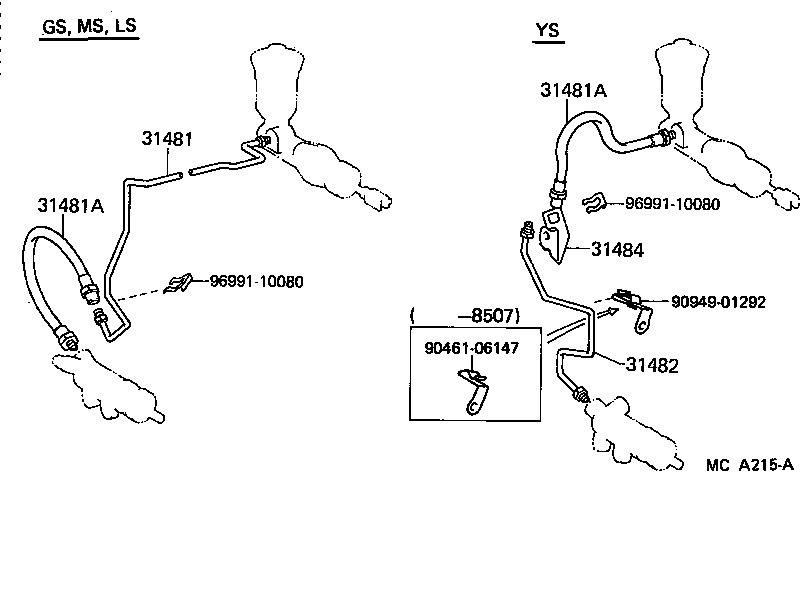

ILLUST NO. 2 OF 2(8308- )MTM

Click highlighted areas on diagram

diagram 31481 31481A 31481A 31482 31484 9046106147 9094901292 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-30130

GS12#,LS12#,MS120..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50335

GS12#,LS12#,MS120..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96812-50335

GS12#,LS12#,MS120..MTM

 1
Common parts
90461-06147
90949-01292
96991-10080
