LS120-SEBRS (1983)
Toyota Crown

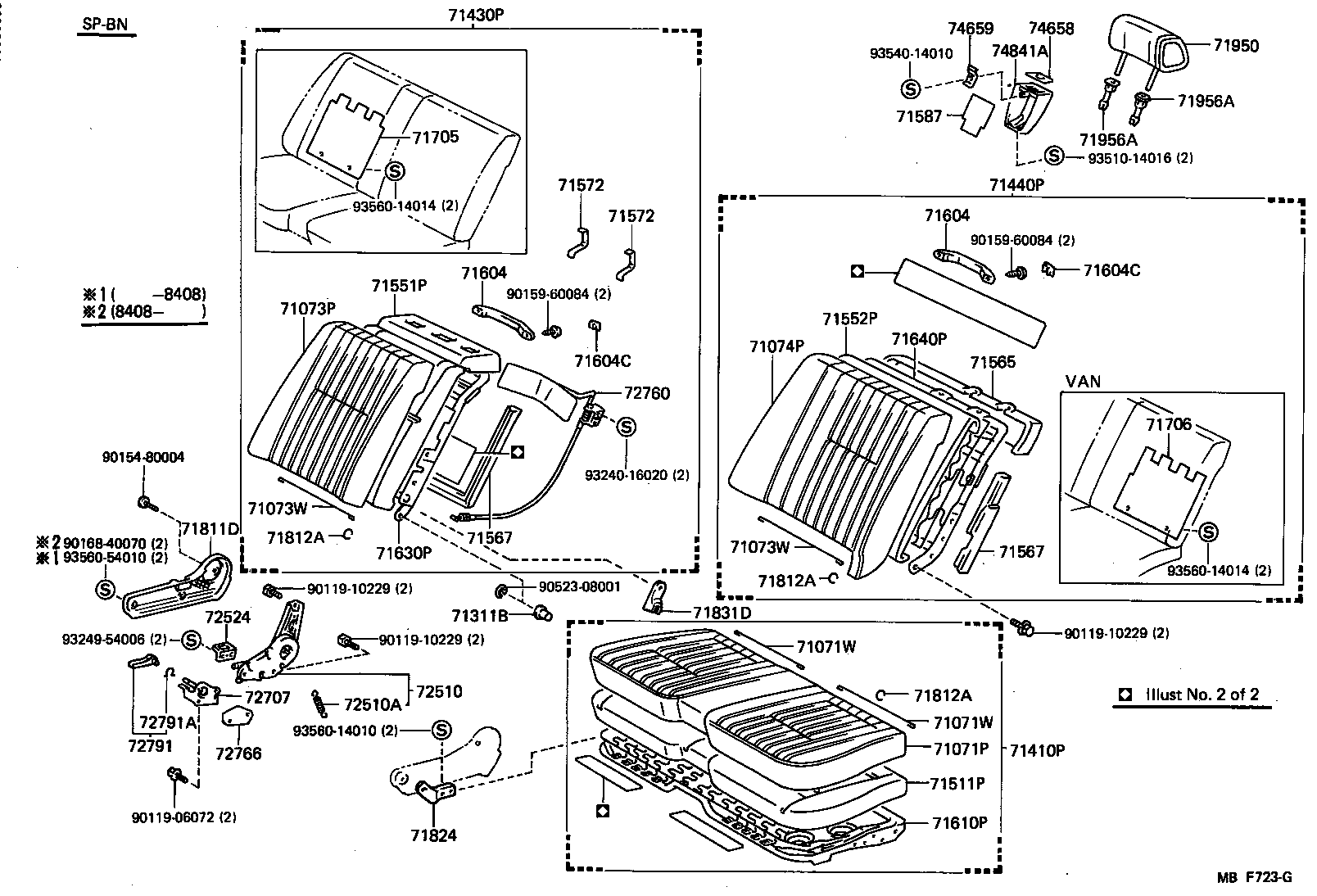

ILLUST NO. 1 OF 3(8308- )4H..STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-3A11004 |
GS120,126,LS12#,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3A11004 |
GS120,LS120,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
LS120,YS120..4H..STD SP-BN,L=500 |
1 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-20103 |
GS120,126,LS12#,YS120..4H..STD BN,L=1150 |
1 | ||
| 90580-20139 |
LS120,YS120..4H..STD SP,BN,L=1020 |
2 | ||
| 90580-20130 |
LS120,YS120..4H..STD SP-BN,L=700 |
1 | ||
| 90580-20139 |
GS120,126,LS12#,YS120..4H..STD BN,L=1020 |
2 | ||
| 90580-29012 |
GS120,126,LS12#,YS120..4H..STD BN,L=380 |
2 | ||
| 90580-29012 |
LS120,YS120..4H..STD SP-BN,L=380 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
LS120,YS120..4H..STD SP-BN,L=500 |
1 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-20103 |
GS120,126,LS12#,YS120..4H..STD BN,L=1150 |
1 | ||
| 90580-20139 |
LS120,YS120..4H..STD SP,BN,L=1020 |
2 | ||
| 90580-20130 |
LS120,YS120..4H..STD SP-BN,L=700 |
1 | ||
| 90580-20139 |
GS120,126,LS12#,YS120..4H..STD BN,L=1020 |
2 | ||
| 90580-29012 |
GS120,126,LS12#,YS120..4H..STD BN,L=380 |
2 | ||
| 90580-29012 |
LS120,YS120..4H..STD SP-BN,L=380 |
2 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-3088104 |
GS120,LS120,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3088004 |
GS120,126,LS12#,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3088004 |
GS120,LS120,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20033 |
LS120,YS120..4H..STD SP-BN,L=670 |
4 | ||
| 90580-20007 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=20 |
3 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-29045 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=2.9 |
1 | ||
| 90580-29005 |
LS120,YS120..4H..STD SP-BN,L=435 |
2 | ||
| 90580-20099 |
LS120,YS120..4H..STD SP-BN,L=400 |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20033 |
LS120,YS120..4H..STD SP-BN,L=670 |
4 | ||
| 90580-20007 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=20 |
3 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-29045 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=2.9 |
1 | ||
| 90580-29005 |
LS120,YS120..4H..STD SP-BN,L=435 |
2 | ||
| 90580-20099 |
LS120,YS120..4H..STD SP-BN,L=400 |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-3A20004 |
GS120,126,LS12#,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A20004 |
GS120,LS120,YS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-3A34104 |
GS120,LS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A34004 |
GS120,LS120..4H..STD VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71511-30590 |
GS120,126,LS12#,YS120..4H..STD |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71505-30040 |
GS120,126,LS12#,YS120..4H..STD |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71567-30070 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30060 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71567-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3004004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
2 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74627-3003004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
4 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-30360 |
GS120,126,LS12#,YS120..4H..STD |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-30410 |
GS120,126,LS12#..4H..STD |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71706-30110 |
LS120,YS120..4H..STD SP-BN,W/ASSIST GRIP |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3037004 |
GS120,126,LS12#,MS120,YS120..DLX,SDX,STD BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 72750-30130 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2201014 |
GS120,126,LS12#,YS120..4H..STD BN,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002014 |
LS120,YS120..4H..STD SP-BN,BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 90520-01002 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| Common parts | ||||
| 90119-10229 | ||||
| 90151-50002 | ||||
| 90159-60084 | ||||
| 93319-15010 | ||||
| 93560-14014 | ||||
ILLUST NO. 1 OF 3(8308- )4H,4HC..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A36004 |
LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
LS120,YS120..4H..STD SP-BN,L=500 |
1 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-20103 |
GS120,126,LS12#,YS120..4H..STD BN,L=1150 |
1 | ||
| 90580-20139 |
LS120,YS120..4H..STD SP,BN,L=1020 |
2 | ||
| 90580-20130 |
LS120,YS120..4H..STD SP-BN,L=700 |
1 | ||
| 90580-20139 |
GS120,126,LS12#,YS120..4H..STD BN,L=1020 |
2 | ||
| 90580-29012 |
GS120,126,LS12#,YS120..4H..STD BN,L=380 |
2 | ||
| 90580-29012 |
LS120,YS120..4H..STD SP-BN,L=380 |
2 | ||
| 71071W - WIRE, FRONT SEAT CUSHION COVER | ||||
| 90580-20106 |
LS120,YS120..4H..STD SP-BN,L=500 |
1 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-20103 |
GS120,126,LS12#,YS120..4H..STD BN,L=1150 |
1 | ||
| 90580-20139 |
LS120,YS120..4H..STD SP,BN,L=1020 |
2 | ||
| 90580-20130 |
LS120,YS120..4H..STD SP-BN,L=700 |
1 | ||
| 90580-20139 |
GS120,126,LS12#,YS120..4H..STD BN,L=1020 |
2 | ||
| 90580-29012 |
GS120,126,LS12#,YS120..4H..STD BN,L=380 |
2 | ||
| 90580-29012 |
LS120,YS120..4H..STD SP-BN,L=380 |
2 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A01004 |
LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20033 |
LS120,YS120..4H..STD SP-BN,L=670 |
4 | ||
| 90580-20007 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=20 |
3 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-29045 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=2.9 |
1 | ||
| 90580-29005 |
LS120,YS120..4H..STD SP-BN,L=435 |
2 | ||
| 90580-20099 |
LS120,YS120..4H..STD SP-BN,L=400 |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20033 |
LS120,YS120..4H..STD SP-BN,L=670 |
4 | ||
| 90580-20007 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=20 |
3 | ||
| 90580-29003 |
LS120,YS120..4H..STD SP-BN,L=300 |
2 | ||
| 90580-29045 |
GS120,126,LS12#,YS120..4H..STD BN,L=1200,WD=2.9 |
1 | ||
| 90580-29005 |
LS120,YS120..4H..STD SP-BN,L=435 |
2 | ||
| 90580-20099 |
LS120,YS120..4H..STD SP-BN,L=400 |
1 | ||
| 71074P - COVER, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71074-3061004 |
LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3048004 |
LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 90386-12030 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3A23004 |
LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3A23004 |
GS120,LS120,YS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3A39004 |
GS120,LS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3A36004 |
LS120,YS120..4H..STD PF,W/ASSIST GRIP BLUE,BLUE,TRIM8# |
1 | ||
| 71440P - BACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71440-3A12004 |
LS120,YS120..4H..STD PF,W/ASSIST GLIP,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A14004 |
GS120,LS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A14104 |
GS120,LS120..4H..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3A12104 |
LS120,YS120..4H..STD PF,W/ASSIST GLIP,BLUE,BLUE,TRIM8# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30600 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30530 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71505-30050 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71565 - PAD, FRONT SEAT BACK, INSIDE | ||||
| 71566-30040 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71567-30070 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30060 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71567-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30100 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71567-30070 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30060 |
GS120,126,LS12#..4H..STD BN |
1 | ||
| 71567-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71567-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,YS120..4H..STD SP-BN |
2 | ||
| 71572-30050 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,YS120..4H..STD SP-BN |
2 | ||
| 71572-30050 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3004004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
2 | ||
| 71604 - GRIP SUB-ASSY, ASSIST(FOR SEAT BACK) | ||||
| 74620-3004004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
2 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74627-3003004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
4 | ||
| 71604C - PLUG, HOLE(FOR ASSIST GRIP) | ||||
| 74627-3003004 |
LS120..4H..STD BLUE,BLUE,TRIM8# |
4 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30370 |
GS120,126,LS120,MS120,YS120..(4H,4HC)..(DLX,STD) SP-BN |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30440 |
GS120,LS120..(4H,4HC)..(DLX,STD) SP-BN |
1 | ||
| 71630-30430 |
LS120,YS120..4H..STD SP-BN,W/ASSIST GLIP |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30260 |
GS120,LS120..(4H,4HC)..(DLX,STD) SP-BN |
1 | ||
| 71640-30250 |
LS120,YS120..4H..STD SP-BN,W/ASSIST GRIP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71706-30110 |
LS120,YS120..4H..STD SP-BN,W/ASSIST GRIP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3021004 |
LS120,YS120..4H..STD SP-BN,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3021104 |
GS120,LS120,YS120..4H..STD SP-BN,BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GS12#,LS12#,MS12#,YS120 |
1 | ||
| 71824 - BRACKET, FRONT SEAT SIDE, NO.1 RH | ||||
| 71821-30270 |
GS120,121,LS120,MS125,YS120..(SED,WG)..(4H,4HC) SP-BN,SM-SP |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3002004 |
GS120,LS120,MS120,YS120..(4H,4HC)..(DLX,STD) SP-BN,BLUE,BLUE,TRIM8# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3037004 |
GS120,126,LS12#,MS120,YS120..DLX,SDX,STD BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
GS12#,LS12#,MS12#,YS120 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-30280 |
GS120..4H..DLX;GS120..(4FC,5F)..(DLX,STD);LS120,MS120,YS120..DLX,STD |
1 | ||
| 72510-30281 |
GS120,LS120,MS120,YS120..DLX,STD |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-15002 |
GS120,121,LS120,MS12#,YS120..SED RH |
1 | ||
| 90506-15002 |
GS120..4H..DLX;GS120..SED..(4FC,4HC,5F);GS121,LS120,MS12#,YS120..SED RH |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005024 |
GS120..5F..STD;LS120,YS120..STD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005024 |
GS120,LS120,YS120..STD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72707 - LEVER SUB-ASSY, LUMBER SUPPORT, RH | ||||
| 72707-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30080 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 72750-30130 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 72766 - PATCH, LUMBAR SUPPORT BRACKET | ||||
| 72766-30010 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2201014 |
GS120,126,LS12#,YS120..4H..STD BN,BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3002014 |
LS120,YS120..4H..STD SP-BN,BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 90520-01002 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-10229 | ||||
| 90154-80004 | ||||
| 90159-60084 | ||||
| 90168-40070 | ||||
| 90523-08001 | ||||
| 93240-16020 | ||||
| 93249-54006 | ||||
| 93510-14016 | ||||
| 93540-14010 | ||||
| 93560-14010 | ||||
| 93560-14014 | ||||
| 93560-54010 | ||||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-30300 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-30250 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-2201004 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP,BLUE,BLUE,TRIM8# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08079 | ||||
| 90119-10349 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-08006 | ||||
| 91611-40616 | ||||
| 94543-01000 | ||||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90507-18007 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-30110 |
GS12#,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-08079 | ||||
| 90119-08086 | ||||
| 90119-10349 | ||||
| 90179-06034 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90540-17004 | ||||
ILLUST NO. 2 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-30260 |
GS12#,LS12#,MS12#,YS120 |
2 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71522A - PAD, FRONT SEAT CUSHION SILENCER, B | ||||
| 71622-30120 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71532-30070 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-BN |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71523-30020 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71672-30030 |
GS120,126,LS12#,MS120,YS120..(4H,4HC)..(DLX,STD) BN,SP-BN |
4 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71531-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71531-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71531-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71531-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30060 |
GS120,126,LS12#,MS12#,YS120..(SED,V,WG)..(4H,4HC) BN,SP-BN,SM-SP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30280 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71554-30300 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71554-30290 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30100 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71571-30090 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30100 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71571-30130 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS120,YS120..4H..STD SP-BN |
2 | ||
| 71572-30050 |
GS120,126,LS12#,YS120..4H..STD BN |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30090 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71573-30070 |
GS120,126,LS12#,YS120..4H..STD BN |
2 | ||
| 71573-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30090 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71573-30070 |
GS120,126,LS12#,YS120..4H..STD BN |
2 | ||
| 71573-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30090 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71573-30070 |
GS120,126,LS12#,YS120..4H..STD BN |
2 | ||
| 71573-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30090 |
LS120,YS120..4H..STD RH,SP-BN |
1 | ||
| 71573-30070 |
GS120,126,LS12#,YS120..4H..STD BN |
2 | ||
| 71573-30080 |
LS120,YS120..4H..STD LH,SP-BN |
1 | ||
| 71584 - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71631-30030 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71584-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71631-30030 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71584 - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71631-30030 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71584-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71631-30030 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71584 - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71584-30020 |
LS120,YS120..4H..STD SP-BN |
1 | ||
| 71631-30030 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71584-30020 |
GS120,126,LS12#..4H..STD BN |
2 | ||
| 71631-30030 |
LS120,YS120..4H..STD SP-BN |
1 | ||
ILLUST NO. 3 OF 3(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-3001004 |
GS12#,LS12#,MS12#,YS120 BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-08085 | ||||
| 90119-10349 | ||||
| 90168-40068 | ||||
| 90179-10015 | ||||
| 91112-40612 | ||||
| 91131-40650 | ||||
| 91611-40612 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
