LS120-SEBDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8611)GS120,LS120,MS120,YS120..DLX,STD

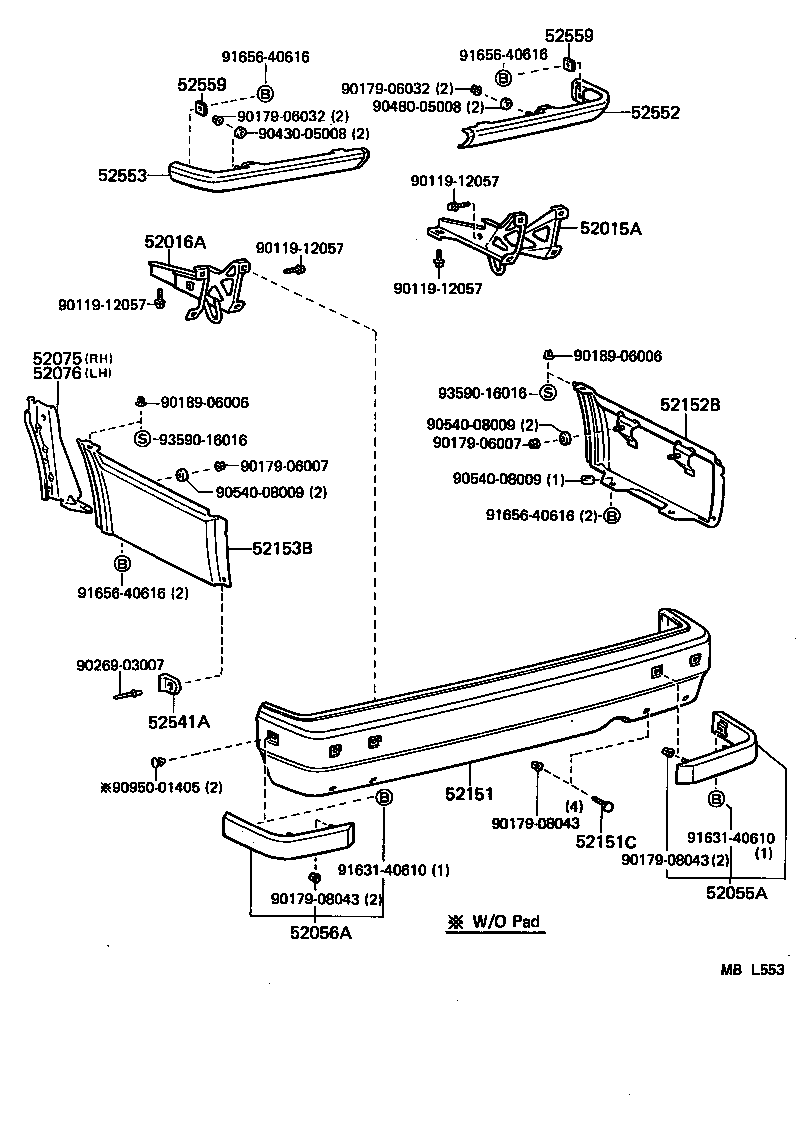

Click highlighted areas on diagram

diagram 52015A 52016A 52055A 52056A 52075 52076 52151 52151C 52152B 52153B 52541A 52552 52553 52559 52559 9011912057 9011912057 9011912057 9011912057 9017906007 9017906007 9017906032 9017906032 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9043005008 9043005009 9043005009 9048005008 9054008009 9054008009 9054008009 9095001405 9163140610 9163140610 9165640616 9165640616 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-30070

GS120,LS120,MS120,YS120..DLX,STD

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-30070

GS120,LS120,MS120,YS120..DLX,STD

 1
52055A - PAD SUB-ASSY, REAR BUMPER, RH
52055-39055

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52056A - PAD SUB-ASSY, REAR BUMPER, LH
52056-39025

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-30010

GS120,121,LS120,MS12#,YS120..HT,SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-30010

GS120,121,LS120,MS12#,YS120..HT,SED

 1
52151 - BUMPER ASSY, REAR
52151-30180

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52151-39125

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08031

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 4
52152B - EXTENSION, REAR BUMPER, RH
52106-30010

GS120,LS120,MS120,YS120..DLX,STD

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30030

GS120,LS120,MS120,YS120..DLX,STD

 1
52541A - PROTECTOR, REAR BUMPER
52541-30030

GS120,LS120,MS120,YS120..DLX,STD

 2
52552 - FILLER, REAR BUMPER, RH
52506-30020

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

 1
52553 - FILLER, REAR BUMPER, LH
52507-30020

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

 1
52559 - SEAL, REAR BUMPER FILLER
52559-30020

GS120,121,LS120,MS12#,YS120..HT,SED

 2
52559 - SEAL, REAR BUMPER FILLER
52559-30020

GS120,121,LS120,MS12#,YS120..HT,SED

 2
Common parts
90119-12057
90179-06007
90179-06032
90179-08043
90189-06006
90269-03007
90430-05008
90430-05009
90480-05008
90540-08009
90950-01405
91631-40610
91656-40616
93590-16016

(8611- )GS120,LS120,MS120,YS120..DLX,STD

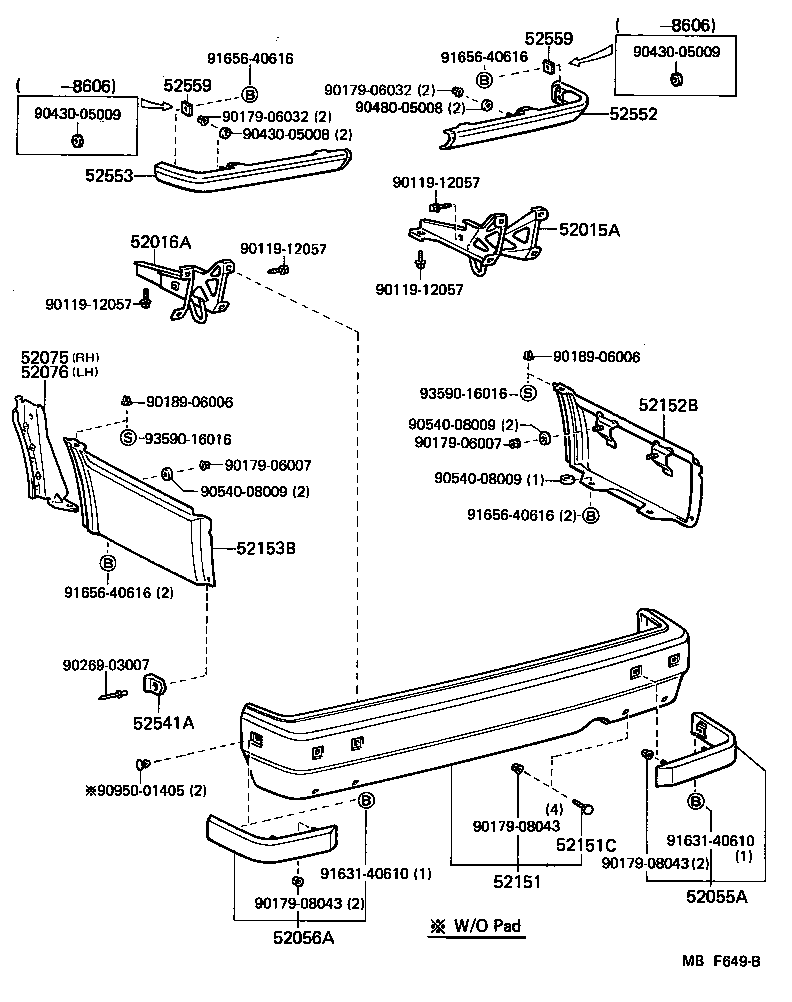

Click highlighted areas on diagram

diagram 52015A 52016A 52055A 52056A 52075 52076 52151 52151C 52152B 52153B 52541A 52552 52553 52559 52559 9011912057 9011912057 9011912057 9011912057 9017906007 9017906007 9017906032 9017906032 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9043005008 9048005008 9054008009 9054008009 9054008009 9095001405 9163140610 9163140610 9165640616 9165640616 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-30070

GS120,LS120,MS120,YS120..DLX,STD

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-30070

GS120,LS120,MS120,YS120..DLX,STD

 1
52055A - PAD SUB-ASSY, REAR BUMPER, RH
52055-39055

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52056A - PAD SUB-ASSY, REAR BUMPER, LH
52056-39025

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-30010

GS120,121,LS120,MS12#,YS120..HT,SED

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-30010

GS120,121,LS120,MS12#,YS120..HT,SED

 1
52151 - BUMPER ASSY, REAR
52151-30180

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52151-39125

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08031

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 4
52152B - EXTENSION, REAR BUMPER, RH
52106-30010

GS120,LS120,MS120,YS120..DLX,STD

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30030

GS120,LS120,MS120,YS120..DLX,STD

 1
52541A - PROTECTOR, REAR BUMPER
52541-30030

GS120,LS120,MS120,YS120..DLX,STD

 2
52552 - FILLER, REAR BUMPER, RH
52506-30020

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

 1
52553 - FILLER, REAR BUMPER, LH
52507-30020

GS120,LS120,MS120,YS120..SED..(DLX,SDX,STD)

 1
52559 - SEAL, REAR BUMPER FILLER
52559-30020

GS120,121,LS120,MS12#,YS120..HT,SED

 2
52559 - SEAL, REAR BUMPER FILLER
52559-30020

GS120,121,LS120,MS12#,YS120..HT,SED

 2
Common parts
90119-12057
90179-06007
90179-06032
90179-08043
90189-06006
90269-03007
90430-05008
90480-05008
90540-08009
90950-01405
91631-40610
91656-40616
93590-16016
