LS120-SEBDS (1983)

Toyota Crown

Production Aug 1983 - Aug 1987
Engine 2L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

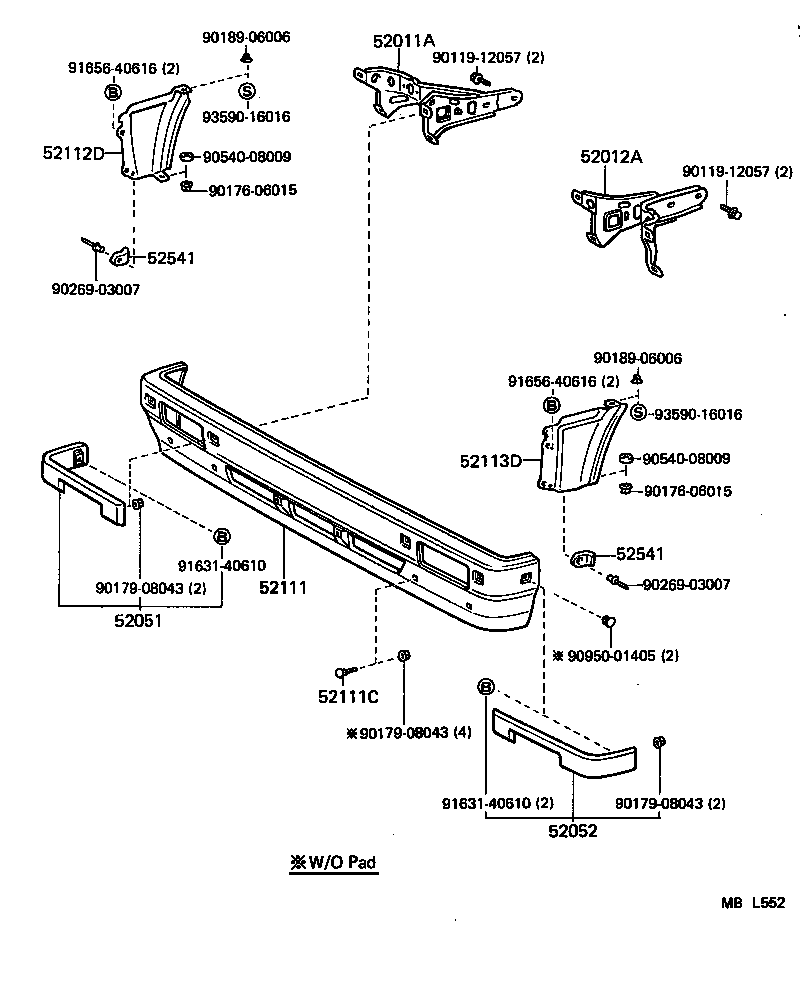

(8308-8611)GS126 ; (8308-8611)GS120,LS12#,MS120,YS120..DLX,STD

Click highlighted areas on diagram

diagram 52011A 52012A 52051 52052 52111 52111C 52112D 52113D 52541 52541 9011912057 9011912057 9017606015 9017606015 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9026903007 9054008009 9054008009 9095001405 9163140610 9163140610 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30140

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30150

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-39075

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-39055

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52111 - BUMPER ASSY, FRONT
52111-39415

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52111-30160

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 4
52112D - EXTENSION, FRONT BUMPER, RH
52112-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-30010

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 2
Common parts
90119-12057
90176-06015
90179-08043
90189-06006
90269-03007
90540-08009
90950-01405
91631-40610
91656-40616
93590-16016

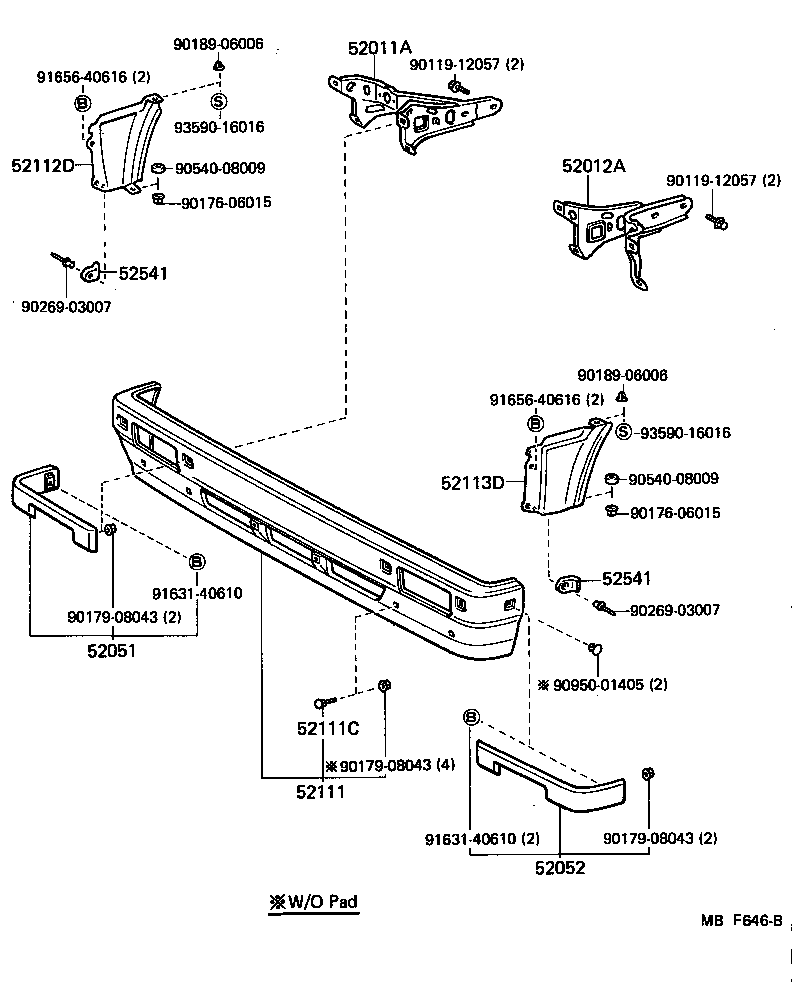

(8611- )GS126 ; (8611- )GS120,LS12#,MS120,YS120..DLX,STD

Click highlighted areas on diagram

diagram 52011A 52012A 52051 52052 52111 52111C 52112D 52113D 52541 52541 9011912057 9011912057 9017606015 9017606015 9017908043 9017908043 9017908043 9018906006 9018906006 9026903007 9026903007 9054008009 9054008009 9095001405 9163140610 9163140610 9165640616 9165640616 9359016016 9359016016
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-30140

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-30150

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52051 - PAD SUB-ASSY, FRONT BUMPER, RH
52051-39075

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52052 - PAD SUB-ASSY, FRONT BUMPER, LH
52052-39055

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 1
52111 - BUMPER ASSY, FRONT
52111-39415

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52111-30160

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08031

GS126..DLX,SDX;GS120,LS12#,MS120,YS120..DLX

 4
52112D - EXTENSION, FRONT BUMPER, RH
52112-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-30010

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30030

GS126;GS120,LS12#,MS120,YS120..DLX,STD

 2
Common parts
90119-12057
90176-06015
90179-08043
90189-06006
90269-03007
90540-08009
90950-01405
91631-40610
91656-40616
93590-16016
