LS117V-SXJRSY (1979)
Toyota Crown

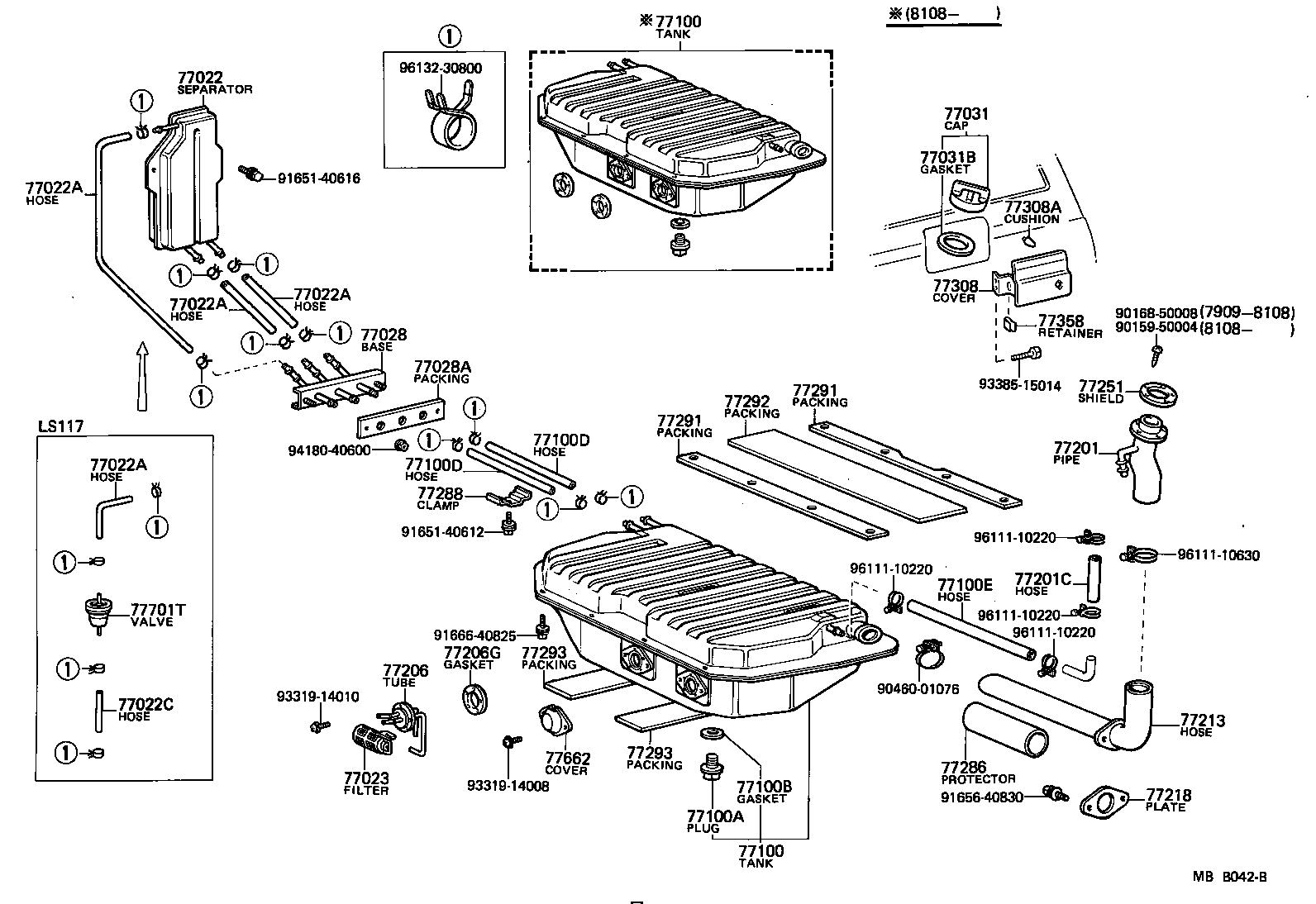

ILLUST NO. 1 OF 2(7909-8302)GS117,LS117,MS117
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-91701 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS117,LS117,MS117 *H,L=120,内径=7.6 |
2 | ||
| 95332-08020 |
LS110,117..V,WG *H,L=110,内径=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS117,LS117,MS117 *H,L=120,内径=7.6 |
2 | ||
| 95332-08020 |
LS110,117..V,WG *H,L=110,内径=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS117,LS117,MS117 *H,L=120,内径=7.6 |
2 | ||
| 95332-08020 |
LS110,117..V,WG *H,L=110,内径=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
GS117,LS117,MS117 *H,L=120,内径=7.6 |
2 | ||
| 95332-08020 |
LS110,117..V,WG *H,L=110,内径=7.6 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08040 |
LS110,117..V,WG *H,L=340 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LS110,117,MS110,117..V,WG |
1 | ||
| 77028 - BASE SUB-ASSY, BREATHER JOINT, NO.1 | ||||
| 77803-91702 |
LS117 |
1 | ||
| 77028A - PACKING, NO.1 (FOR BREATHER JOINT, NO.1) | ||||
| 77893-91702 |
LS117 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
LS11#,MS11#..CBR,DSL,EFI,TBO |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LS11#,MS11#..CBR,DSL,EFI,TBO |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91707 |
LS117 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91707 |
LS117 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95332-08040 |
GS117,LS117,MS117 *H,L=340,内径=7.6 |
2 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95332-08040 |
GS117,LS117,MS117 *H,L=340,内径=7.6 |
2 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-21883 |
GS117,LS117,MS117 長さ=320 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91703 |
LS11#,MS110,117..V,WG |
1 | ||
| 77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE) | ||||
| 90445-21880 |
GS117,LS117,MS117 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-91702 |
LS117,MS117 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91701 |
GS117,LS117,MS117 |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77215-91701 |
GS110,LS11#,MS110,117..V,WG |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77286-91501 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77288 - CLAMP, BREATHER HOSE | ||||
| 77288-91701 |
GS117,LS117,MS117 |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77185-91701 |
GS117,LS117,MS117 FR |
1 | ||
| 77186-91701 |
GS117,LS117,MS117 RR |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77185-91701 |
GS117,LS117,MS117 FR |
1 | ||
| 77186-91701 |
GS117,LS117,MS117 RR |
1 | ||
| 77292 - PACKING, FUEL TANK, CENTER | ||||
| 77242-91501 |
LS117,MS117 |
1 | ||
| 77293 - PACKING, FUEL TANK, LOWER | ||||
| 51912-91601 |
LS117,MS117 |
2 | ||
| 77293 - PACKING, FUEL TANK, LOWER | ||||
| 51912-91601 |
LS117,MS117 |
2 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91702 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-06001 |
GS11#,LS11#,MS110,112..HT,V,WG |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77358-20010 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-13010 |
GS11#,LS110,117,MS110,117..V,WG |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10012 |
LS110,117..V,WG |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90168-50008 | ||||
| 90460-01076 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40830 | ||||
| 91666-40825 | ||||
| 93319-14008 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 94180-40600 | ||||
| 96111-10220 | ||||
| 96111-10630 | ||||
| 96132-30800 | ||||

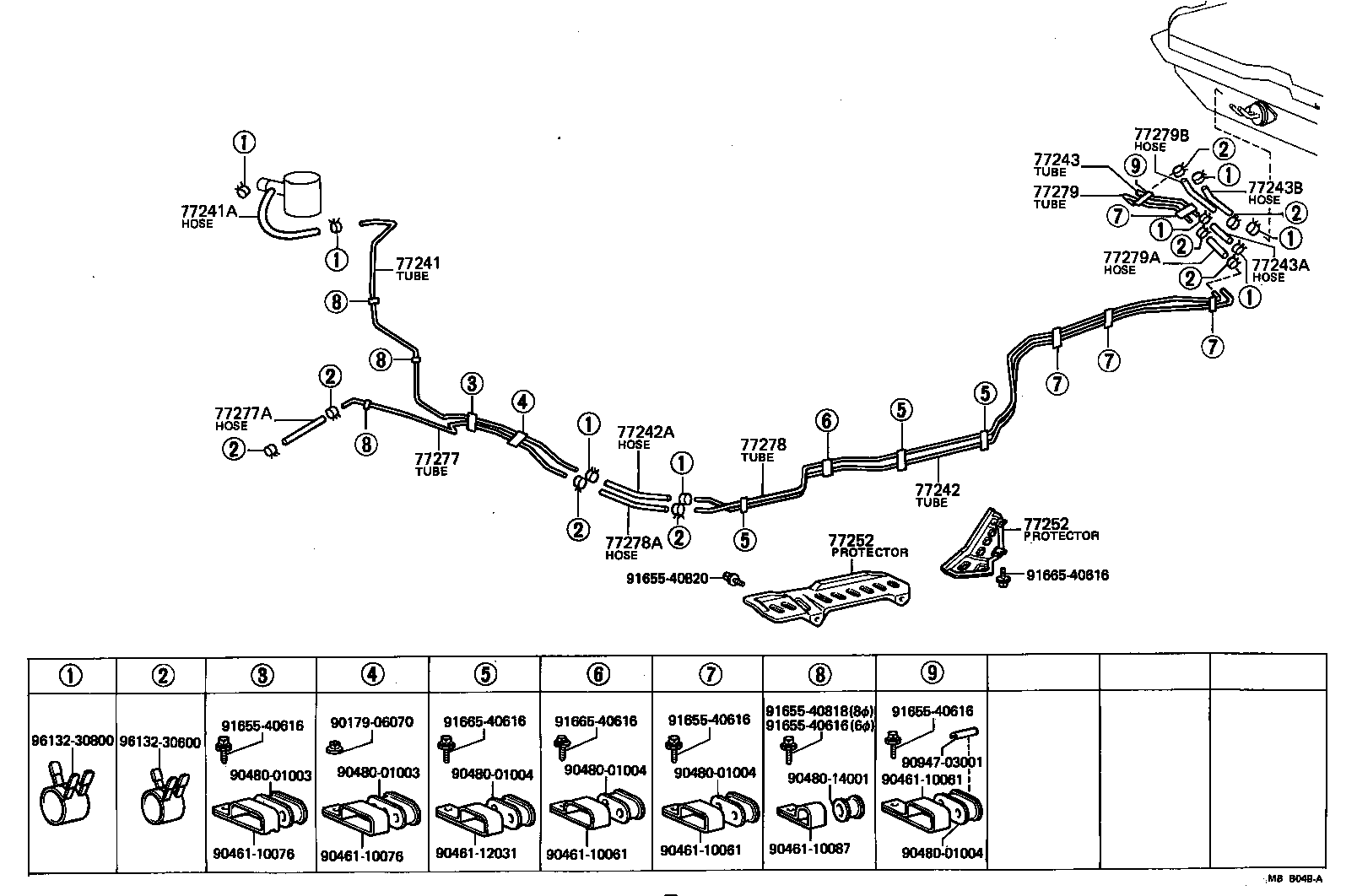

ILLUST NO. 2 OF 2(7909- )LS117
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-30120 |
LS11# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95335-08020 |
LS11# L=200 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77253-31030 |
LS117,MS117 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95335-08020 |
LS11#,MS110,117..CBR,DSL L=200 |
1 | ||
| 77243 - TUBE, FUEL MAIN, NO.3 | ||||
| 77254-31041 |
LS117,MS117 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-08020 |
LS117,MS117 *H,L=110,内径=7.6 |
1 | ||
| 77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) | ||||
| 95332-08020 |
LS117,MS117 *H,L=150,内径=7.6 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
GS11#,LS11#,MS11#,RS110 FR |
1 | ||
| 77039-91702 |
GS117,LS117,MS117 RR |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
GS11#,LS11#,MS11#,RS110 FR |
1 | ||
| 77039-91702 |
GS117,LS117,MS117 RR |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30080 |
LS11# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06040 |
LS11# *H,L=360 |
1 | ||
| 90445-05001 |
LS11# L=385 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77257-31060 |
LS117,MS117 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
LS11#,MS110,117..CBR,DSL *H,L=200 |
1 | ||
| 77279 - TUBE, FUEL RETURN, NO.3 | ||||
| 77258-31021 |
LS117,MS117 |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 95332-06010 |
LS117,MS117 *H,L=100 |
1 | ||
| 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) | ||||
| 95332-06020 |
LS117,MS117 *H,L=150 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90461-10061 | ||||
| 90461-10076 | ||||
| 90461-10087 | ||||
| 90461-12031 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-14001 | ||||
| 90947-03001 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91655-40820 | ||||
| 91665-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
