LS117V-SXJRSY (1979)

Toyota Crown

Production Sep 1979 - Oct 1980
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )GS117,LS117,MS117

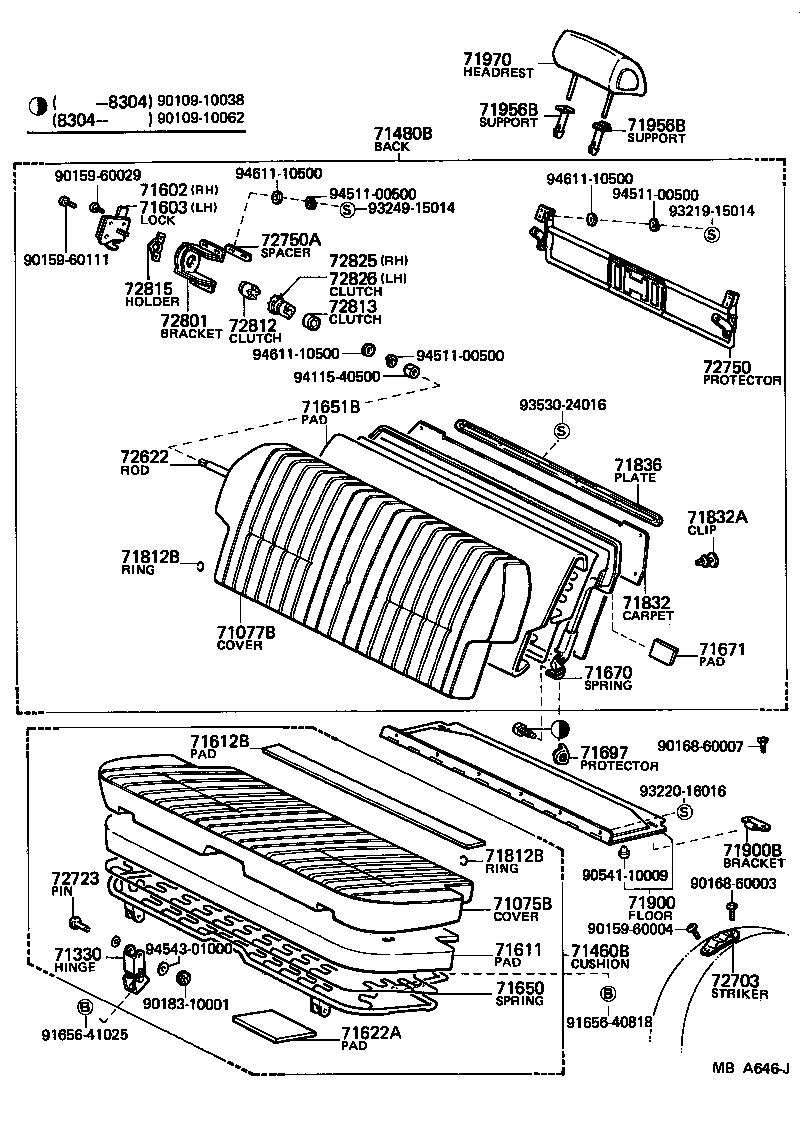

Click highlighted areas on diagram

diagram 71075B 71077B 71330 71460B 71480B 71602 71603 71611 71612B 71622A 71650 71651B 71670 71671 71697 71812B 71812B 71832 71832A 71836 71900 71900B 71956B 71956B 71970 72622 72703 72723 72750 72750A 72801 72812 72813 72815 72825 72826 9010910038 9010910062 9015960004 9015960029 9015960111 9016860003 9016860007 9018310001 9054110009 9165640818 9165641025 9321915014 9322016016 9324915014 9353024016 9411540500 9451100500 9451100500 9451100500 9454301000 9461110500 9461110500 9461110500
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9171905

LS117,MS117..STD

VL,GREIGE,BEIGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9172105

LS117,MS117..STD

VL,GREIGE,BEIGE,TRIM4#

 1
71330 - HINGE ASSY, REAR SEAT CUSHION
71301-91701

GS11#,LS110,117,MS110,117..V,WG

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9171905

LS117,MS117..STD

VL,GREIGE,BEIGE,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-9174105

LS117,MS117..STD

W/HEADREST,VL,GREIGE,BEIGE,TRIM4#

 1
71480-9173605

LS117,MS117..STD

VL,GREIGE,BEIGE,TRIM4#

 1
71602 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72603-91701

GS117,LS117,MS117..4H

 1
71603 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72604-91701

GS117,LS117,MS117..4H

 1
71611 - PAD, REAR SEAT CUSHION
71503-91701

GS11#,LS110,117,MS110,117..V,WG

 1
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-91701

GS11#,LS110,117,MS110,117..V,WG

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-91703

GS117,LS117,MS117

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-91703

GS117,LS117,MS117

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-91706

GS117,LS117,MS117..4H

 1
71670-91709

GS117,LS117,MS117..4H

W/HEADREST

 1
71697 - PROTECTOR, REAR SEAT BACK EDGE
71695-91701

GS11#,LS110,117,MS110,117..V,WG

 2
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GS11#,LS11#,MS11#,RS110

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GS11#,LS11#,MS11#,RS110

 1
71832 - CARPET OR MAT, REAR SEAT BACK
71885-9170105

LS117,MS117..4H

GREIGE,BEIGE,TRIM4#

 1
71885-9170104

LS117,MS117..4H

BLUE,BLUE,TRIM8#

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0700504

LS11#,MS110,117..V,WG

BLUE,BLUE,TRIM8#

 4
90467-0700505

LS11#,MS110,117..V,WG

GREIGE,BEIGE,TRIM4#

 4
71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER
71837-91701

GS11#,LS110,117,MS110,117..V,WG

 1
71900 - FLOOR ASSY, REAR SEAT
72706-9170104

LS117,MS117..DLX,STD

BLUE,BLUE,TRIM8#

 1
72706-9170105

LS117,MS117..DLX,STD

GREIGE,BEIGE,TRIM4#

 1
71900B - BRACKET (FOR REAR SEAT FLOOR)
71957-91501

GS11#,LS110,117,MS110,117..V,WG

 2
71956B - SUPPORT, REAR SEAT HEADREST
71956-3002004

LS117,MS117

ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8#

 2
71990-3002005

LS117,MS117

ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71990-3002004

LS117,MS117

ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8#

 2
71956-3002005

LS117,MS117

ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71956-3002004

LS117,MS117

ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8#

 2
71990-3002005

LS117,MS117

ﾛｯｸ付,W/LOCK,GREIGE,BEIGE,TRIM4#

 2
71990-3002004

LS117,MS117

ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8#

 2
71956-3002005

LS117,MS117

ﾛｯｸ無,W/O LOCK,GREIGE,BEIGE,TRIM4#

 2
71970 - HEADREST ASSY, REAR SEAT
71910-3022005

LS117,MS117

GREIGE,BEIGE,TRIM4#

 2
71910-3022004

LS117,MS117

BLUE,BLUE,TRIM8#

 2
72622 - ROD, REAR SEAT BACK STOPPER CONNECTING
72622-91501

GS117,LS117,MS117..4H

 1
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72610-91701

GS11#,LS110,117,MS110,117..V,WG

 2
72723 - PIN, REAR SEAT CUSHION, NO.2
90240-10119

GS11#,LS110,117,MS110,117..V,WG

 2
Common parts
90109-10038
90109-10062
90159-60004
90159-60029
90159-60111
90168-60003
90168-60007
90183-10001
90541-10009
91656-40818
91656-41025
93219-15014
93220-16016
93249-15014
93530-24016
94115-40500
94511-00500
94543-01000
94611-10500
