LS117V-SXJRSY (1979)

Toyota Crown

Production Sep 1979 - Oct 1980
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

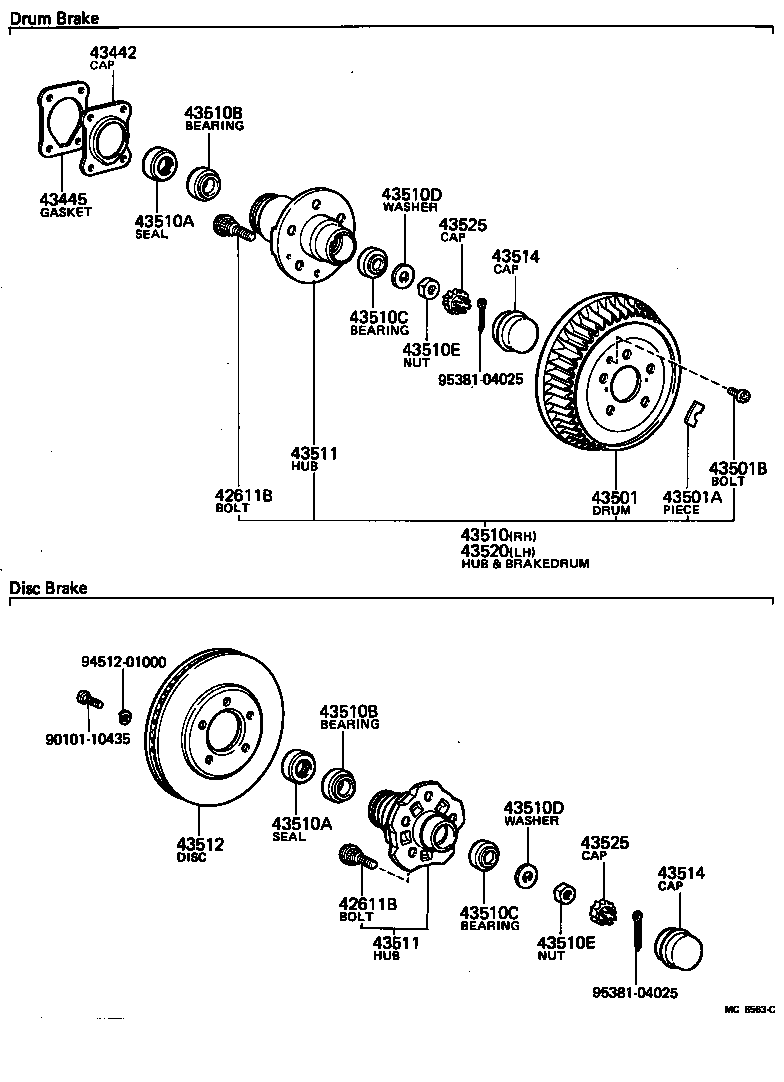

Click highlighted areas on diagram

diagram 42611B 42611B 43442 43445 43501 43501A 43501B 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43511 43511 43512 43514 43514 43520 43525 43525 9010110435 9451201000 9538104025 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE

*12-1.5PX33-20.5,FR DISC BRAKE

 10
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE

*12-1.5PX33-20.5,FR DISC BRAKE

 10
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-48122

GS11#,LS11#,MS11#,RS110

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-48122

GS11#,LS11#,MS11#,RS110

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34083

GS11#,LS11#,MS11#,RS110

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34083

GS11#,LS11#,MS11#,RS110

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21082

GS11#,LS11#,MS11#,RS110

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21082

GS11#,LS11#,MS11#,RS110

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20005

GS11#,LS11#,MS11#,RS110

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20005

GS11#,LS11#,MS11#,RS110

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

GS11#,LS11#,MS11#,RS110

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

GS11#,LS11#,MS11#,RS110

 2
43511 - HUB, FRONT AXLE
43511-30904

GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE

 2
43511 - HUB, FRONT AXLE
43511-30904

GS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE

 2
43512 - DISC, FRONT
43512-30090

LS117,MS117;LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
43514 - CAP, FRONT HUB GREASE
43514-22020

GS11#,LS11#,MS11#,RS110

 2
43514 - CAP, FRONT HUB GREASE
43514-22020

GS11#,LS11#,MS11#,RS110

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

GS11#,LS11#,MS11#,RS110

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

GS11#,LS11#,MS11#,RS110

 2
Common parts
90101-10435
94512-01000
95381-04025
