LS117V-SXJRSY (1979)

Toyota Crown

Production Sep 1979 - Oct 1980
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8010)L

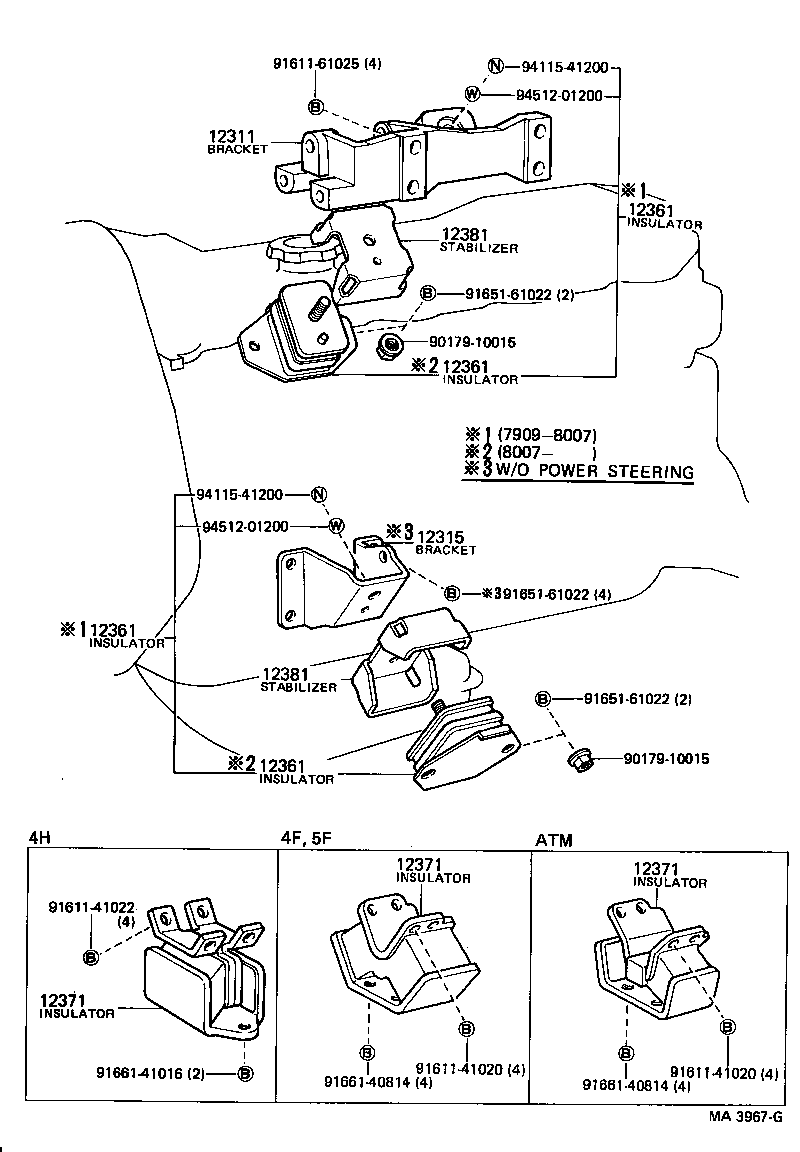

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12361 12361 12371 12371 12371 12381 12381 9017910015 9017910015 9161141020 9161141020 9161141022 9161161025 9165161022 9165161022 9165161022 9166140814 9166140814 9166141016 9411541200 9411541200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54010

L..LS11#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54011

L..LS110,117

W/O POWER STEERING

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-59016

L..LS11#

LH

 1
12361-59046

L..LS11#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-59016

L..LS11#

LH

 1
12361-59046

L..LS11#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-59016

L..LS11#

LH

 1
12361-59046

L..LS11#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-59016

L..LS11#

LH

 1
12361-59046

L..LS11#

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45011

L..LS11#..4H

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45011

L..LS11#..4H

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45011

L..LS11#..4H

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

L,2LT#..LS11#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

L,2LT#..LS11#

 2
Common parts
90179-10015
91611-41020
91611-41022
91611-61025
91651-61022
91661-40814
91661-41016
94115-41200
94512-01200
