LS111-SEMGX (1982)

Toyota Crown

Production Aug 1982 - Jul 1983
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2LT#

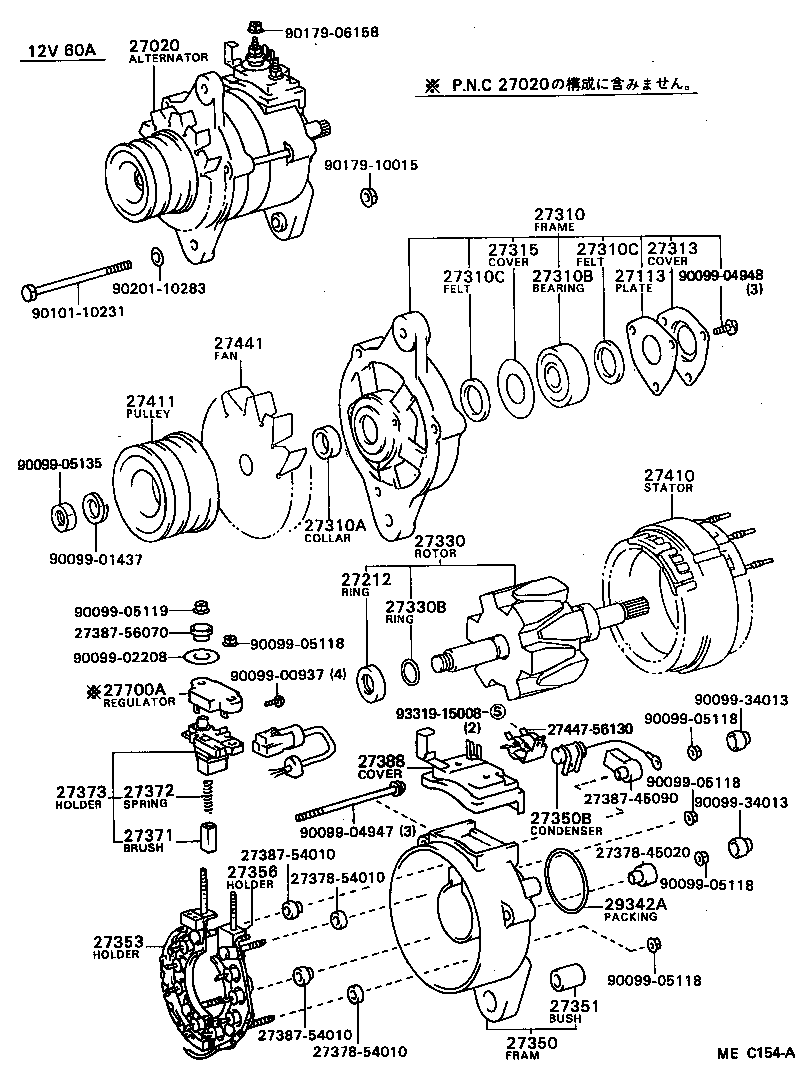

Click highlighted areas on diagram

diagram 27020 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27353 27356 27371 27372 27373 2737845020 2737854010 2737854010 2738745090 2738754010 2738754010 2738756070 27388 27410 27411 27441 2744756130 27700A 29342A 9009900937 9009901437 9009902208 9009904947 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9009934013 9009934013 9010110231 9017906158 9017910015 9020110283 9331915008
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-54060

L..LS11#

12V 55A,IC REGULAT.(COLD SPEC)

 1
27020-54170

2LT..LS111

12V 60A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-57060

2LT#..LS111

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27333-57060

2LT#..LS111

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54011

L..LS11#

12V 55A

 1
27310-54130

2LT#..LS111

12V 60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-57060

2LT#..LS111

12V 60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137

2LT#..LS111

12V 60A

 1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2LT#..LS111

12V 60A

 2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02209

2LT#..LS111

12V 60A

 2
27313 - COVER, ALTERNATOR FELT, INNER NO.2
27313-57060

2LT#..LS111

12V 60A

 1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060

2LT#..LS111

12V 60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64030

2LT#..LS111

12V 60A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

2LT#..LS111

12V 60A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-54130

2LT#..LS111

12V 60A

 1
27350-54010

L..LS11#

12V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52066

L..LS11#

12V 55A,IC REGULATOR

 1
90099-52082

2LT#..LS111

12V 60A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013

L,2LT#..LS11#

12V 55A,60A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-54060

L..LS11#

12V 55A,IC REGULATOR

 1
27353-57070

2LT..LS111

12V 60A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-54060

L..LS11#

12V 55A,IC REGULATOR

 1
27356-54170

2LT..LS111

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

L,2LT#..LS11#

12V 55A,60A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070

L,2LT#..LS11#

12V 55A,60A

 2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-57070

2LT#..LS111

12V 60A

 1
27388 - COVER, ALTERNATOR BRUSH
27388-54011

L..LS11#

12V 55A

 1
27388-54070

2LT#..LS111

12V 60A

 1
27410 - STATOR ASSY, ALTERNATOR
27410-54060

L..LS11#

12V 55A,IC REGULATOR

 1
27410-54010

L..LS11#

12V 55A,STANDARD REGULATOR

 1
27411 - PULLEY, ALTERNATOR
27411-54170

2LT#..LS111

12V 60A

 1
27441 - FAN, ALTERNATOR
27441-54040

L..LS11#

12V 55A

 1
27441-64030

2LT#..LS111

12V 60A

 1
29342A - PACKING, VACUUM PUMP
90099-14055

2LT#..LS111

12V 60A

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
27447-56130
90099-00937
90099-01437
90099-02208
90099-04947
90099-04948
90099-05118
90099-05119
90099-05135
90099-34013
90101-10231
90179-06158
90179-10015
90201-10283
93319-15008
