LS111-SEMFX (1982)
Toyota Crown
Production
Aug 1982
-
Jul 1983
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )LS111

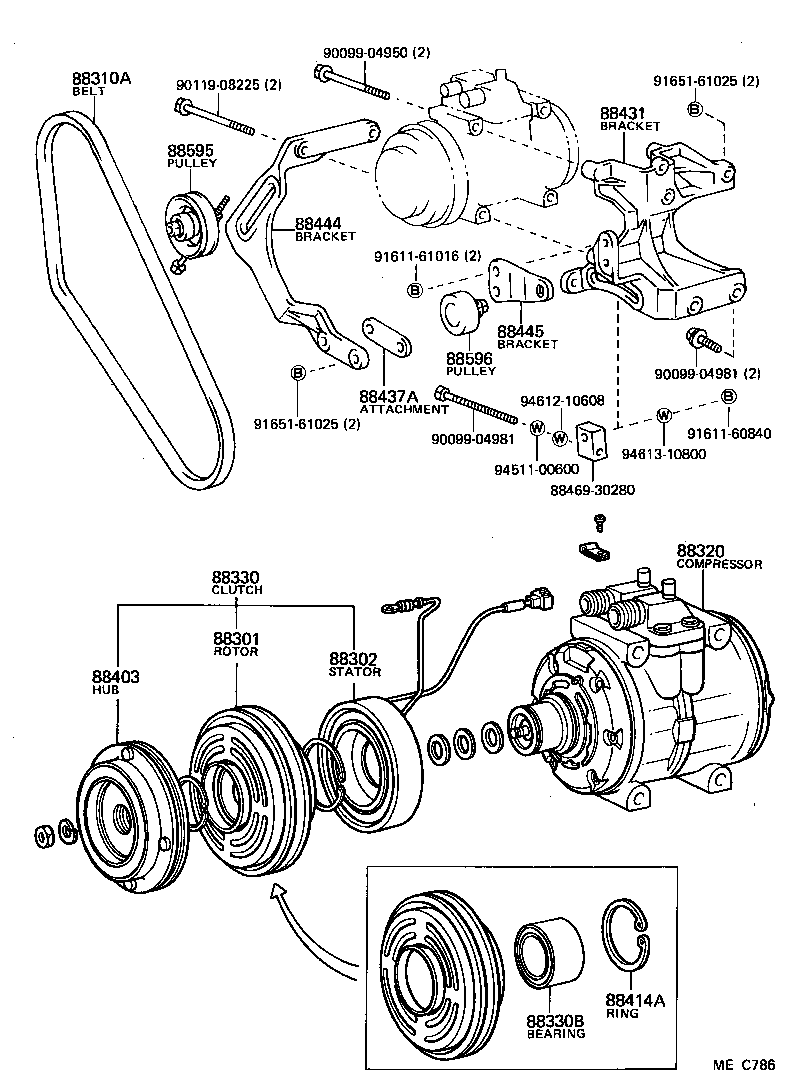

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26010 |
LS11# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30360 |
LS11# |
1 | ||
| 88411-14050 |
LS111 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-11250 |
LS111 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30320 |
LS111 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-30340 |
LS11# |
1 | ||
| 88410-22080 |
LS111 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10127 |
LS11# |
2 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-22030 |
LS11# |
1 | ||
| 88414A - RING, SHIELD SNAP | ||||
| 90099-07094 |
LS11# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26170 |
LS111 |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-22050 |
LS11# |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22060 |
LS111 |
1 | ||
| 88444-22040 |
LS11# |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26070 |
LS111 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-16010 |
LS111 |
1 | ||
| 88596 - PULLEY ASSY, IDLE, NO.2 | ||||
| 88440-26070 |
LS111 |
1 | ||
| Common parts | ||||
| 88469-30280 | ||||
| 90099-04950 | ||||
| 90099-04981 | ||||
| 90119-08225 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91651-61025 | ||||
| 94511-00600 | ||||
| 94612-10608 | ||||
| 94613-10800 | ||||
