LS111-SEMFX (1982)

Toyota Crown

Production Aug 1982 - Jul 1983
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

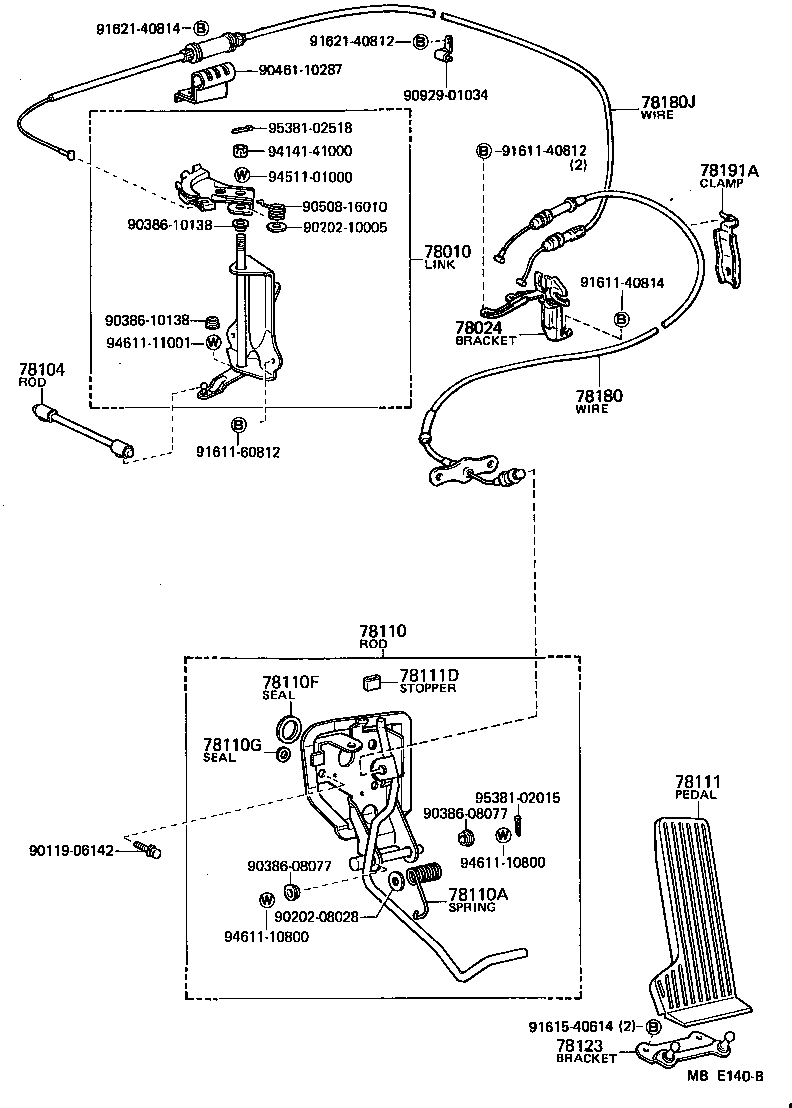

ILLUST NO. 1 OF 2(8208- )TD

Click highlighted areas on diagram

diagram 78010 78024 78104 78110 78110A 78110F 78110G 78111 78111D 78123 78180 78180J 78191A 9011906142 9020208028 9020210005 9038608077 9038608077 9038610138 9038610138 9046110287 9050816010 9092901034 9161140812 9161140814 9161160812 9161540614 9162140812 9162140814 9414141000 9451101000 9461110800 9461110800 9461111001 9538102015 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-30470

LS111..TD

 1
78100-30410

LS11#..MTM

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30040

LS111

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100

LS11#

 1
78104-30120

LS111..TD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30280

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
78120-30300

LS111;GS110,MS110,112..ATM..(CBR,EFI,TBO,TWC)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29011

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
90508-18016

LS111

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS11#,LS11#,MS11#,RS110

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS11#,LS11#,MS11#,RS110

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS11#,LS11#,MS11#,RS110

 1
78111-12100

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS11#,LS11#,MS11#,RS110

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30040

GS11#,LS11#,MS11#,RS110

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30130

LS11#

 1
78180-30350

LS111

 1
78180J - WIRE ASSY, ACCELERATOR, NO.2
21960-54010

LS111..TD

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-30060

LS111

 1
Common parts
90119-06142
90202-08028
90202-10005
90386-08077
90386-10138
90461-10287
90508-16010
90929-01034
91611-40812
91611-40814
91611-60812
91615-40614
91621-40812
91621-40814
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518

ILLUST NO. 2 OF 2(8208- )TD

Click highlighted areas on diagram

diagram 78010 78024 78104 78110 78110A 78110F 78110G 78111 78111A 78111C 78111D 78180 78180J 78191A 9011906142 9020208028 9020210005 9038608077 9038608077 9038610138 9038610138 9046110287 9050816010 9092901034 9161140812 9161140814 9161160812 9162140812 9162140814 9414141000 9451101000 9461110800 9461110800 9461111001 9538102015 9538102518 9616000400
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-30470

LS111..TD

 1
78100-30410

LS11#..MTM

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-30040

LS111

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100

LS11#

 1
78104-30120

LS111..TD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30280

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
78120-30300

LS111;GS110,MS110,112..ATM..(CBR,EFI,TBO,TWC)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29011

GS11#,LS11#,MS11#,RS110..MTM

COLD SPEC

 1
90508-18016

LS111

 1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050

GS11#,LS11#,MS11#,RS110

 1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050

GS11#,LS11#,MS11#,RS110

 3
78111 - PEDAL, ACCELERATOR
78111-30080

GS11#,LS11#,MS11#,RS110

 1
78111-12100

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16002

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GS11#,LS11#,MS11#,RS110

COLD SPEC

 1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050

GS11#,LS11#,MS11#,RS110

 1
78180 - WIRE ASSY, ACCELERATOR
78180-30130

LS11#

 1
78180-30350

LS111

 1
78180J - WIRE ASSY, ACCELERATOR, NO.2
21960-54010

LS111..TD

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-30060

LS111

 1
Common parts
90119-06142
90202-08028
90202-10005
90386-08077
90386-10138
90461-10287
90508-16010
90929-01034
91611-40812
91611-40814
91611-60812
91621-40812
91621-40814
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518
96160-00400
