LS111-SEMFX (1982)
Toyota Crown
Production
Aug 1982
-
Jul 1983
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )2LT#

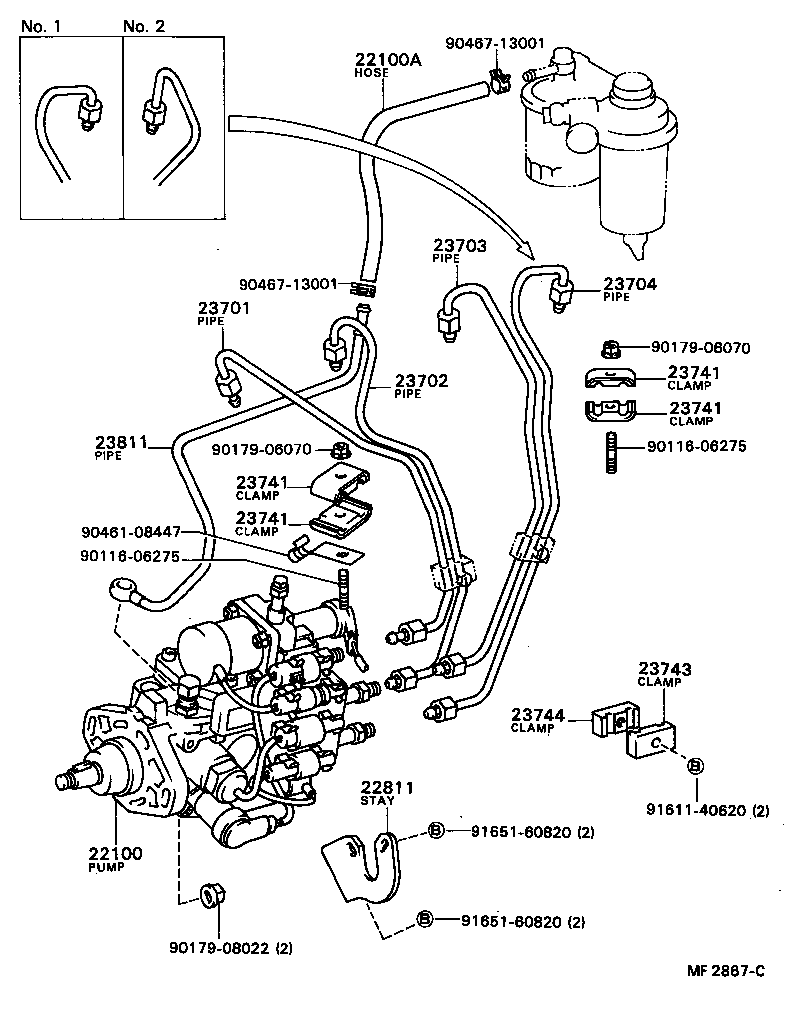

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-54060 |
L..LS11#..MTM |
1 | ||
| 22100-54260 |
2LT..LS111 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 95332-08040 |
L..LS11# *H,L=340,内径=7.6 |
1 | ||
| 95332-08030 |
L,2LT#..LS11# *H,L=300,内径=7.6 |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54020 |
L..LS11# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54080 |
2LT#..LS111 NO.1 |
1 | ||
| 23701-54030 |
L..LS11# |
1 | ||
| 23701-54081 |
2LT#..LS111 NO.2 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54080 |
2LT#..LS111 NO.1 |
1 | ||
| 23702-54081 |
2LT#..LS111 NO.2 |
1 | ||
| 23702-54030 |
L..LS11# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54030 |
L..LS11# |
1 | ||
| 23703-54080 |
2LT#..LS111 NO.1 |
1 | ||
| 23703-54081 |
2LT#..LS111 NO.2 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54081 |
2LT#..LS111 NO.2 |
1 | ||
| 23704-54030 |
L..LS11# |
1 | ||
| 23704-54080 |
2LT#..LS111 NO.1 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2LT#..LS11# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2LT#..LS11# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2LT#..LS11# |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-56010 |
L,2LT#..LS11# |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 23741-54010 |
L,2LT#..LS11# |
2 | ||
| 23744 - CLAMP, INJECTION PIPE, NO.4 | ||||
| 23742-54010 |
L,2LT#..LS11# |
2 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54040 |
L..LS11# |
1 | ||
| 23811-54090 |
L,2LT#..LS11# |
1 | ||
| Common parts | ||||
| 90116-06275 | ||||
| 90179-06070 | ||||
| 90179-08022 | ||||
| 90461-08447 | ||||
| 90467-13001 | ||||
| 91611-40620 | ||||
| 91651-60820 | ||||
