LS111-SEMFX (1982)

Toyota Crown

Production Aug 1982 - Jul 1983
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2LT

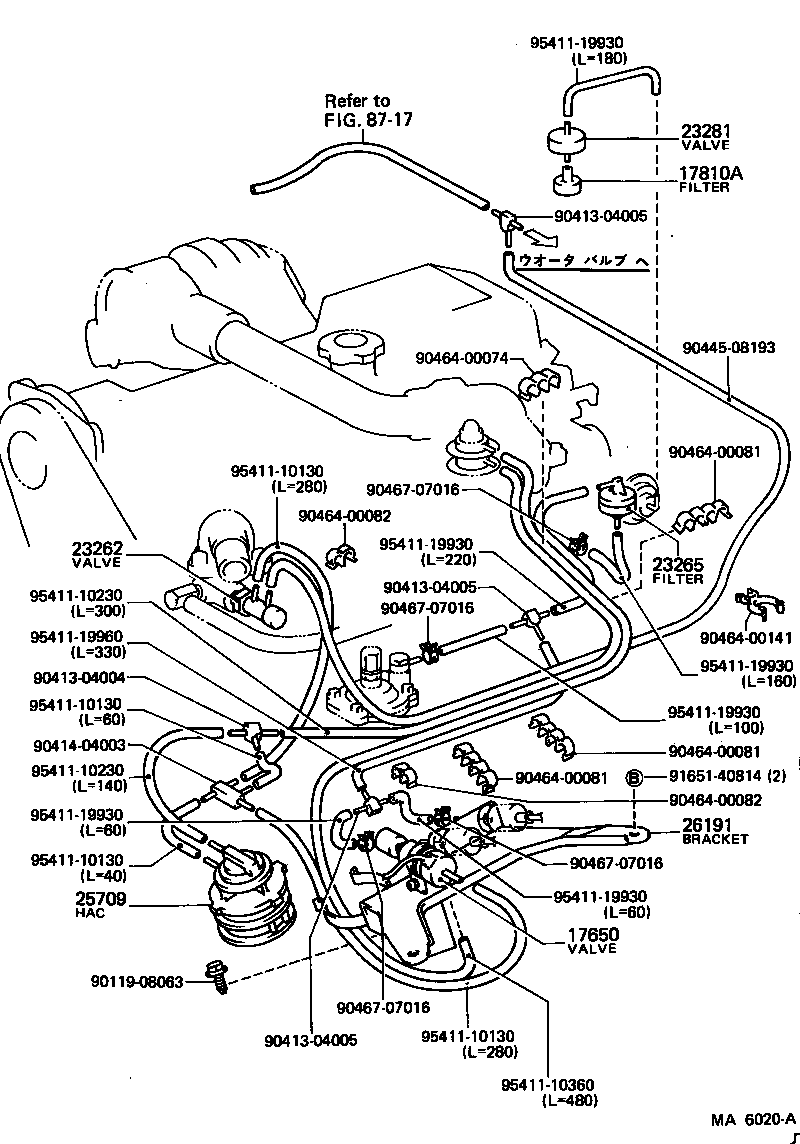

Click highlighted areas on diagram

diagram 17650 17810A 23262 23265 23281 25709 26191 8717 9011908063 9041304004 9041304005 9041304005 9041304005 9041404003 9044508193 9046400074 9046400081 9046400081 9046400081 9046400082 9046400082 9046400141 9046707016 9046707016 9046707016 9046707016 9165140814 9541110130 9541110130 9541110130 9541110130 9541110230 9541110230 9541110360 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-30070

2LT..LS111

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25820-34020

2LT..LS111

 1
23265 - FILTER, GAS, NO.1
90917-11009

2LT#..LS111

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01015

2LT..LS111

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-37010

2LT..LS111

 1
26191 - BRACKET, INTAKE AIR CONTROL VALVE
26191-54010

2LT..LS111

 1
Common parts
90119-08063
90413-04004
90413-04005
90414-04003
90445-08193
90464-00074
90464-00081
90464-00082
90464-00141
90467-07016
91651-40814
95411-10130
95411-10230
95411-10360
95411-19930
95411-19960
Linked diagrams
8717
