LS111-SEMFX (1982)

Toyota Crown

Production Aug 1982 - Jul 1983
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2LT#

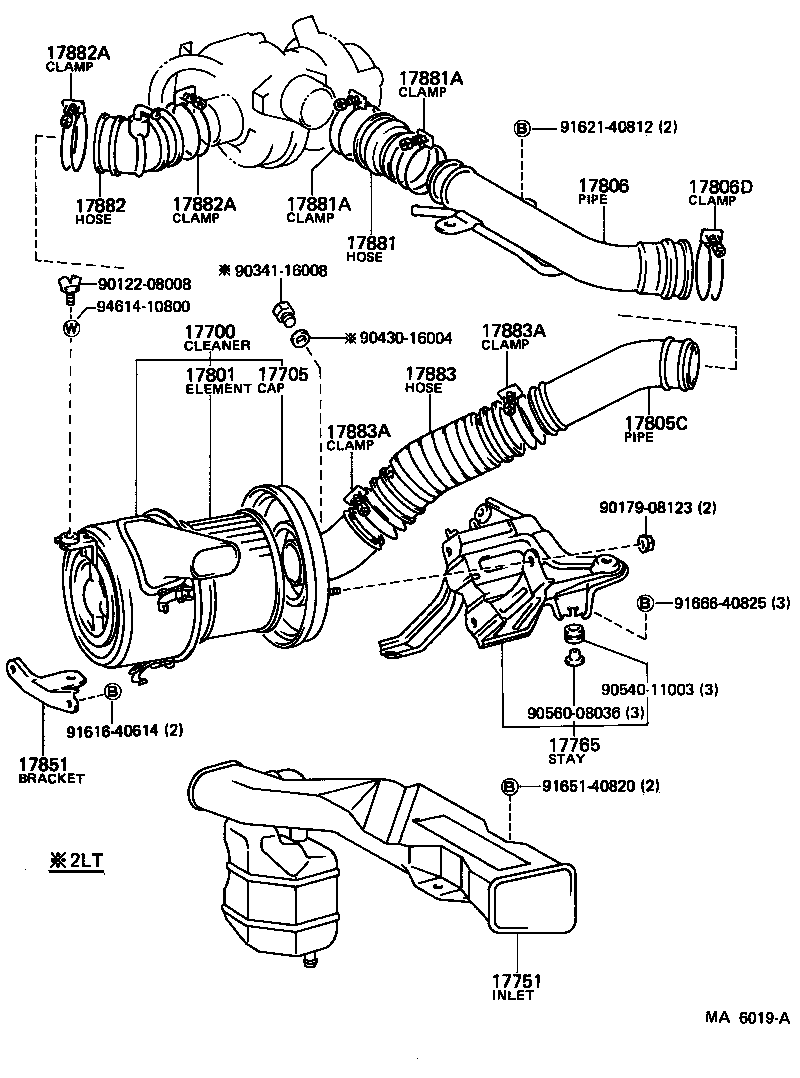

Click highlighted areas on diagram

diagram 17700 17705 17751 17765 17801 17805C 17806 17806D 17851 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 9012208008 9017908123 9034116008 9043016004 9054011003 9056008036 9161640614 9162140812 9165140820 9166640825 9461410800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54170

2LT#..LS111

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54080

2LT#..LS111

 1
17751 - INLET, AIR CLEANER, NO.1
53207-30110

2LT#..LS111

 1
17765 - STAY, AIR CLEANER, NO.1
17706-54010

2LT#..LS111

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54060

2LT#..LS111

 1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17885-54060

2LT#..LS111

 1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17103-54010

2LT#..LS111

 1
17806D - CLAMP(FOR AIR CLEANER PIPE)
96111-10710

2LT#..LS111

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-54010

2LT#..LS111

 1
17881 - HOSE, AIR CLEANER, NO.1
17349-54010

2LT#..LS111

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10630

2LT#..LS111

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10630

2LT#..LS111

 2
17882 - HOSE, AIR CLEANER, NO.2
17881-54150

2LT#..LS111

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

2LT#..LS111

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10690

2LT#..LS111

 2
17883 - HOSE, AIR CLEANER, NO.3
17882-54110

2LT#..LS111

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10690

2LT#..LS111

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10690

2LT#..LS111

 2
Common parts
90122-08008
90179-08123
90341-16008
90430-16004
90540-11003
90560-08036
91616-40614
91621-40812
91651-40820
91666-40825
94614-10800
