LS111-SEMFX (1982)

Toyota Crown

Production Aug 1982 - Jul 1983
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2LT#

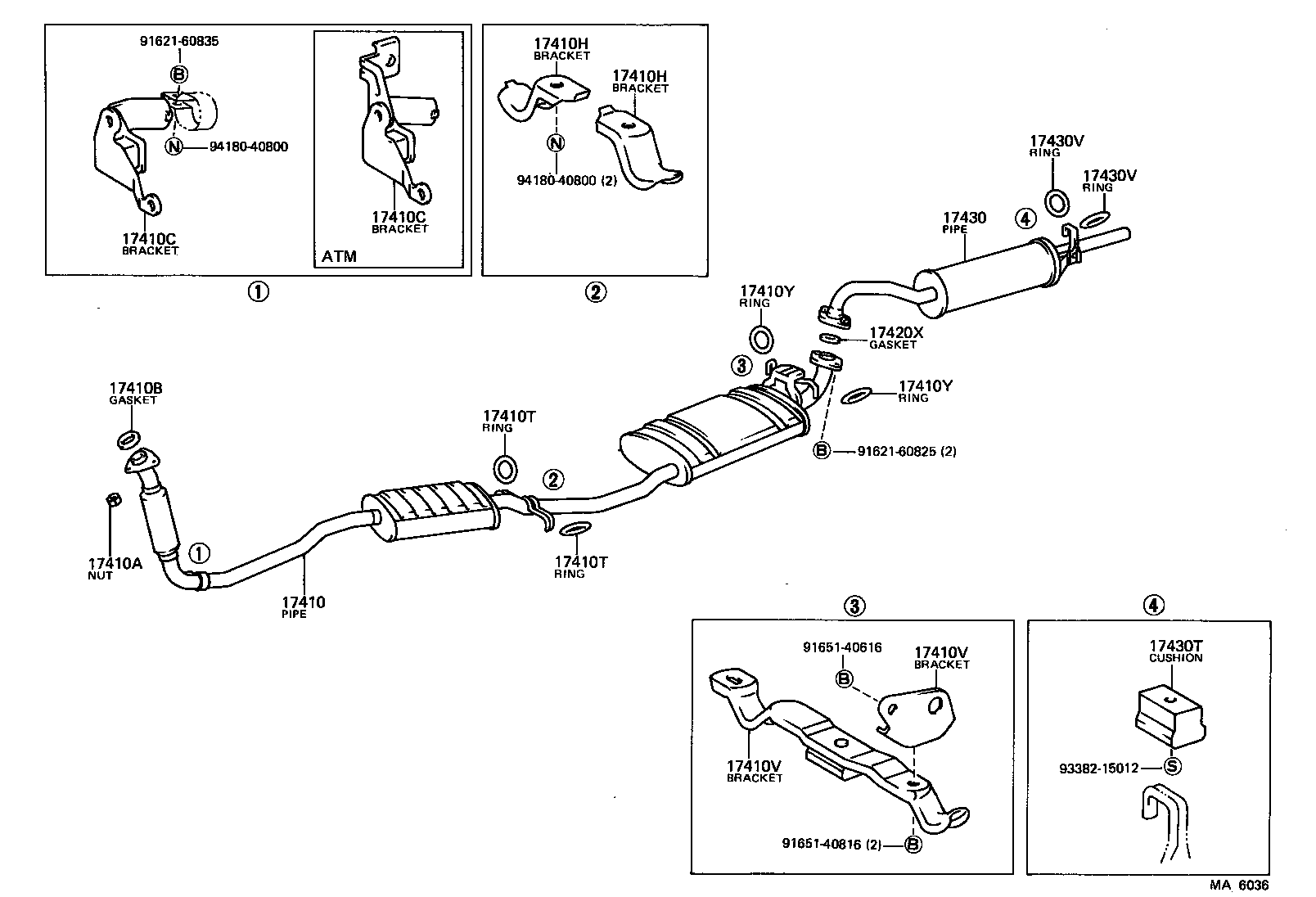

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410C 17410H 17410H 17410T 17410T 17410V 17410V 17410Y 17410Y 17420X 17430 17430T 17430V 17430V 9162160825 9162160835 9165140616 9165140816 9338215012 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54180

2LT#..LS111

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

L,MEU,1GE#,MJ,2LT#,5M#,MTEU,MU..GS11#,LS11#,MS11#

 3
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17561-54030

2LT..LS111

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17561-54030

2LT..LS111

 1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41030

L,MJ,2LT#..LS11#,MS117

 2
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41030

L,MJ,2LT#..LS11#,MS117

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-45010

L,MJ,2LT#..LS11#,MS117

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-45010

L,MJ,2LT#..LS11#,MS117

 2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-54010

L,2LT#..LS110,111

LWR

 1
17575-54010

L,2LT#..LS110,111

UPR

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17505-54010

L,2LT#..LS110,111

LWR

 1
17575-54010

L,2LT#..LS110,111

UPR

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

L,MJ,2LT#..LS11#,MS117

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17565-45010

L,MJ,2LT#..LS11#,MS117

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06012

MEU,1GEU,2LT#,5M#,5RU,MTEU,MU..GS110,LS111,MS110,112,RS110

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54280

2LT#..LS111

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17591-36010

L,MEU,1GEU,2LT#,5M#,5RU,MTEU,MU..GS110,LS110,111,MS110,112,RS110..HT,SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

L,MEU,1GE#,MJ,2LT#,5M#,5RU,MTEU,MU..GS11#,LS11#,MS11#,RS110

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

L,MEU,1GE#,MJ,2LT#,5M#,5RU,MTEU,MU..GS11#,LS11#,MS11#,RS110

 2
Common parts
91621-60825
91621-60835
91651-40616
91651-40816
93382-15012
94180-40800
