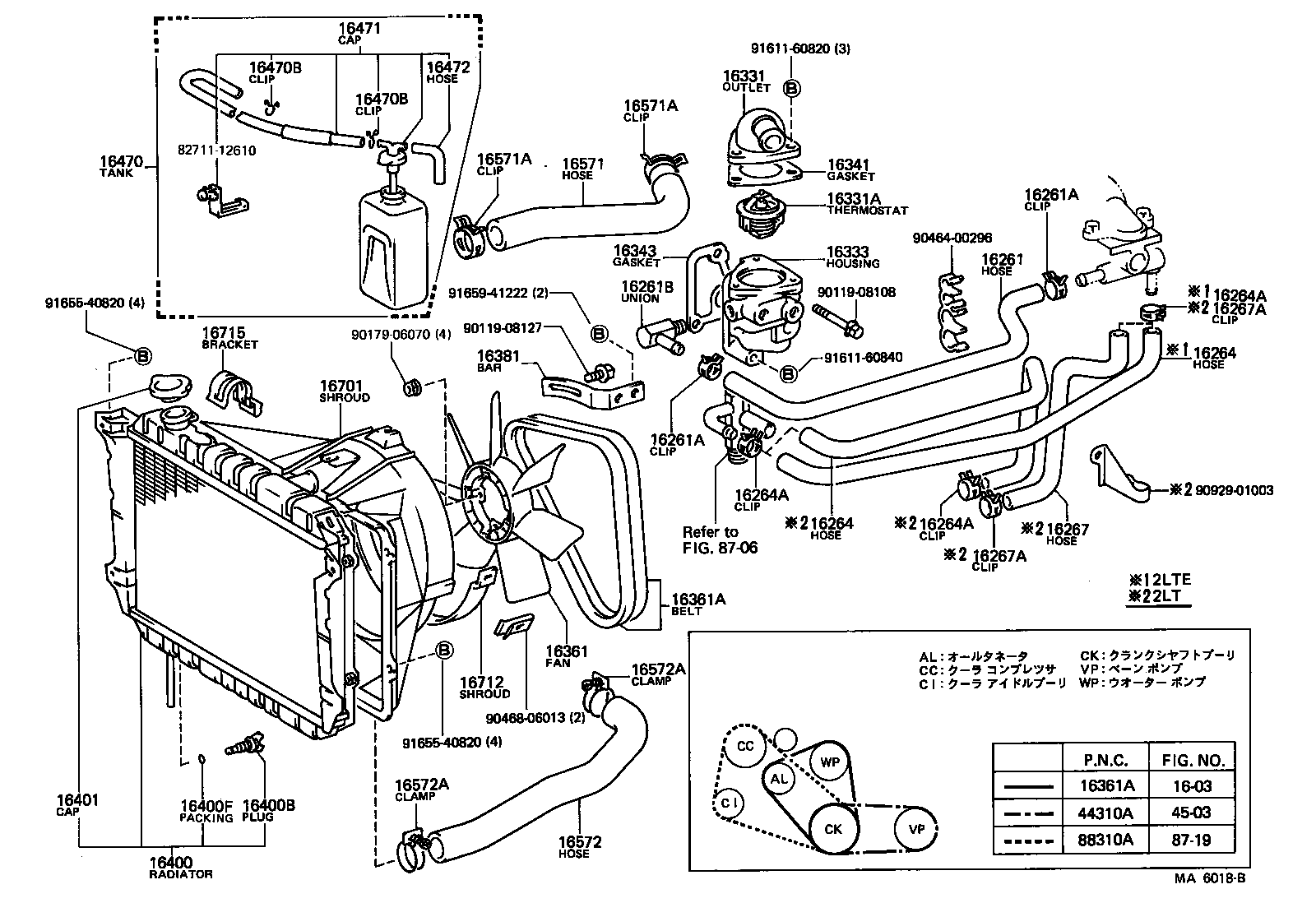

LS111-SEMFX (1982)
Toyota Crown
(8208- )2LT#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54020 |
2LT#..LS111 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52015 |
2LT#..LS111 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-54010 |
2LT..LS111 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15004 |
2LT..LS111 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15004 |
2LT..LS111 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2LT#..LS111 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03043 |
L..LS11# COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 90916-03042 |
L..LS11# *WAX 82-95,*(F) |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54010 |
L..LS11# |
1 | ||
| 16333-54030 |
2LT..LS111 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54010 |
2LT#..LS111 |
1 | ||
| 16341-38010 |
L..LS11# |
1 | ||
| 16341-54011 |
2LT#..LS111 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LS11# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
2LT#..LS111 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02119 |
2LT#..LS111 DOUBLE V BELTS |
1 | ||
| 90916-02132 |
2LT#..LS111 DOUBLE V BELTS |
1 | ||
| 99332-00985 |
L..LS11# L=985 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02119 |
2LT#..LS111 DOUBLE V BELTS |
1 | ||
| 90916-02132 |
2LT#..LS111 DOUBLE V BELTS |
1 | ||
| 99332-00985 |
L..LS11# L=985 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
L,2LT#..LS11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54060 |
L,2LT..LS11#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
L,2LT#..LS11# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
L..LS11# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
L,2LT#..LS11# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-41130 |
L..LS11# |
1 | ||
| 16480-45030 |
2LT#..LS111 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2LT#..LS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2LT#..LS11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41030 |
L..LS11# |
1 | ||
| 16405-54020 |
2LT#..LS111 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
2LT#..LS111 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54040 |
L,2LT#..LS11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54040 |
L,2LT#..LS11# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L..LS11# BELT CASE SIDE,ID=50 |
1 | ||
| 96111-10460 |
L,2LT#..LS11# RADIATOR SIDE,ID=46 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
L..LS11# BELT CASE SIDE,ID=50 |
1 | ||
| 96111-10460 |
L,2LT#..LS11# RADIATOR SIDE,ID=46 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54060 |
L..LS11# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
L,2LT#..LS11# |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-41010 |
L,2LT#..LS11# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02080 |
LS11#..BTP,CTE,DLX,SAL,SDX,SPE |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-11250 |
LS111 |
1 | ||
| Common parts | ||||
| 82711-12610 | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 90464-00296 | ||||
| 90468-06013 | ||||
| 90929-01003 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 91659-41222 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8706 | ||||
| 8719 | ||||
