LS110G-SWMDSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

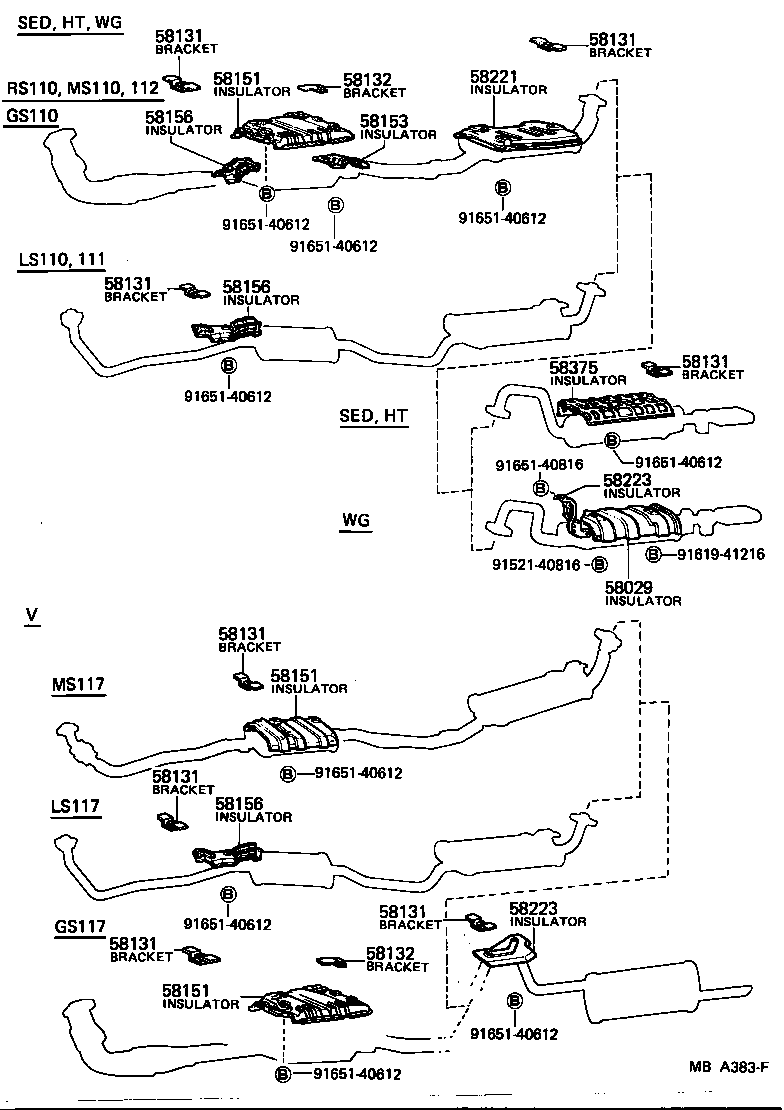

Click highlighted areas on diagram

diagram 58029 58131 58131 58131 58131 58131 58131 58131 58131 58132 58132 58151 58151 58151 58153 58156 58156 58156 58221 58223 58223 58375 9152140816 9161941216 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612 9165140816
Part # Description Qty Price
58029 - INSULATOR SUB-ASSY, DIFFUSER HEAT
58045-91702

GS110,LS110,MS110..WG

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-12020

GS11#,LS11#,MS11#,RS110

 5
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-30010

GS11#,LS11#,MS11#,RS110

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-30010

GS11#,LS11#,MS11#,RS110

 2
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30030

LS11#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30030

LS11#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-30030

LS11#

 1
Common parts
91521-40816
91619-41216
91651-40612
91651-40816
