LS110-STHXSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4DH

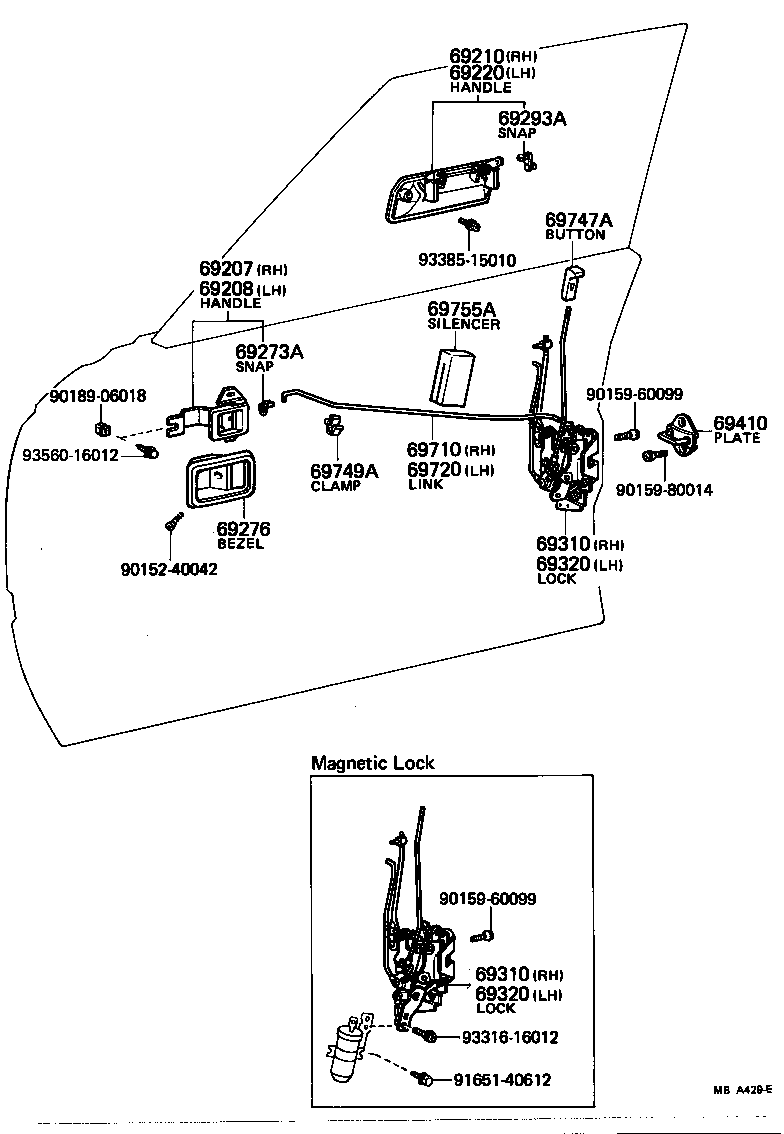

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69273A 69276 69293A 69310 69310 69320 69320 69410 69710 69720 69747A 69749A 69755A 9015240042 9015960099 9015960099 9015980014 9018906018 9165140612 9331616012 9338515010 9356016012
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30010

GS11#,LS11#,MS11#,RS110

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

GS11#,LS11#,MS11#,RS110..4D

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30090

LS110,MS110,112..HT

 1
69210-30090

GS110,LS110,111,MS110..HT

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-30090

GS110,LS110,111,MS110,112..HT

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69288-12010

GS11#,LS11#,MS11#,RS110..4D

LH

 1
69279-12020

GS11#,LS11#,MS11#,RS110

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-30030

GS110,LS110,111,MS110,112,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..4D

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12020

GS11#,LS11#,MS11#,RS110

RH

 1
69293-12010

GS11#,LS11#,MS11#,RS110

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30310

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30312

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30311

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30312

GS110,LS110..CTE

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30310

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30312

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30311

LS110,MS110..4DH..(CTE,DLX)

 1
69310-30312

GS110,LS110..CTE

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30320

LS110,MS110..4DH..(CTE,DLX)

 1
69320-30321

LS110,MS110..4DH..(CTE,DLX)

 1
69320-30321

GS110,LS110..CTE

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30320

LS110,MS110..4DH..(CTE,DLX)

 1
69320-30321

LS110,MS110..4DH..(CTE,DLX)

 1
69320-30321

GS110,LS110..CTE

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12040

GS11#,LS11#,MS11#,RS110

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-30060

LS110,MS110,112..4DH

 1
69711-30061

GS110,LS110,111,MS110,112..4DH

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-30071

GS110,LS110,111,MS110,112..4DH

 1
69712-30070

LS110,MS110,112..4DH

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3002002

LS11#,MS11#,RS110..4D

DARK WINE,RED/MAROON,TRIM3#

 2
69741-3002004

GS11#,LS11#,MS11#,RS110..4D

BLUE,BLUE,TRIM8#

 2
69741-3002005

LS11#,MS11#,RS110..4D

GREIGE,BEIGE,TRIM4#

 2
69741-3002003

GS11#,LS11#,MS11#,RS110..4D

GRAY,GRAY,TRIM1#

 2
69741-3002004

LS11#,MS11#,RS110..4D

BLUE,BLUE,TRIM8#

 2
69741-3002025

GS11#,LS11#,MS11#,RS110..4D

BEIGE,BEIGE,TRIM4#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-30020

GS11#,LS11#,MS11#,RS110

 2
69749-12010

GS110,LS11#,MS11#,RS110

 2
69755A - SILENCER, FRONT DOOR LOCK LINK
69759-30021

GS11#,LS11#,MS11#,RS110

 2
Common parts
90152-40042
90159-60099
90159-80014
90189-06018
91651-40612
93316-16012
93385-15010
93560-16012
