LS110-SENDSY (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

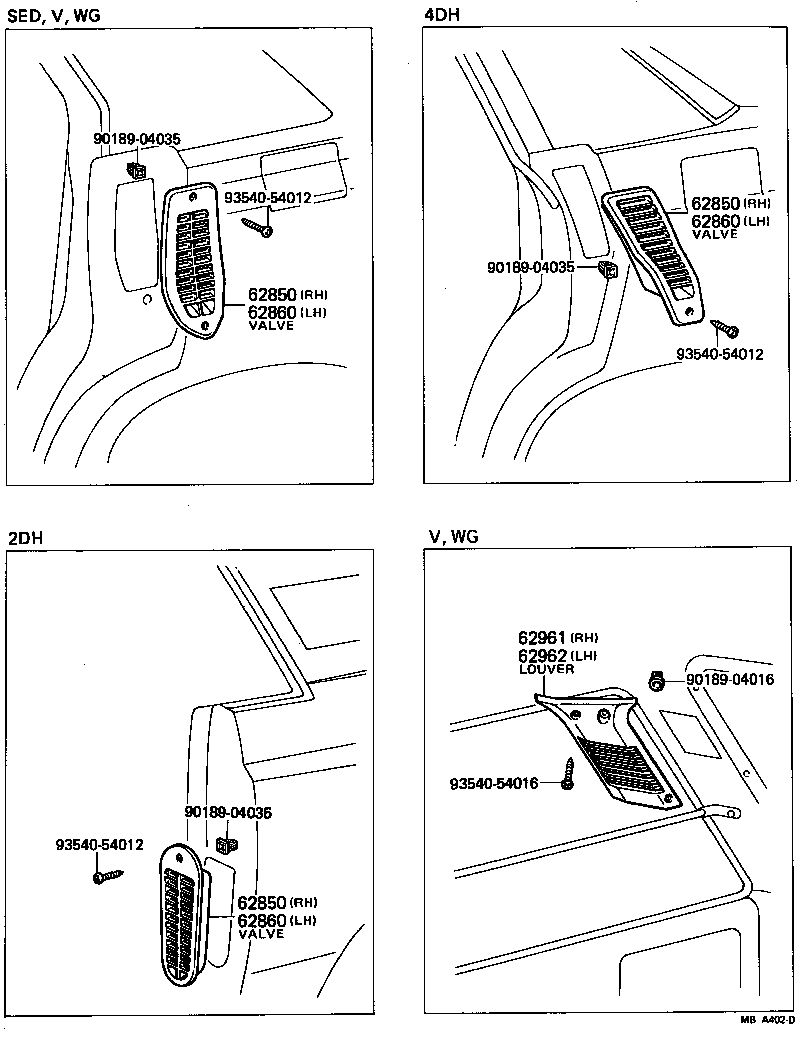

Click highlighted areas on diagram

diagram 62850 62850 62850 62860 62860 62860 62961 62962 9018904016 9018904035 9018904035 9018904035 9354054012 9354054012 9354054012 9354054016
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62850-30010

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
Common parts
90189-04016
90189-04035
93540-54012
93540-54016
