LS110-SENBSY (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

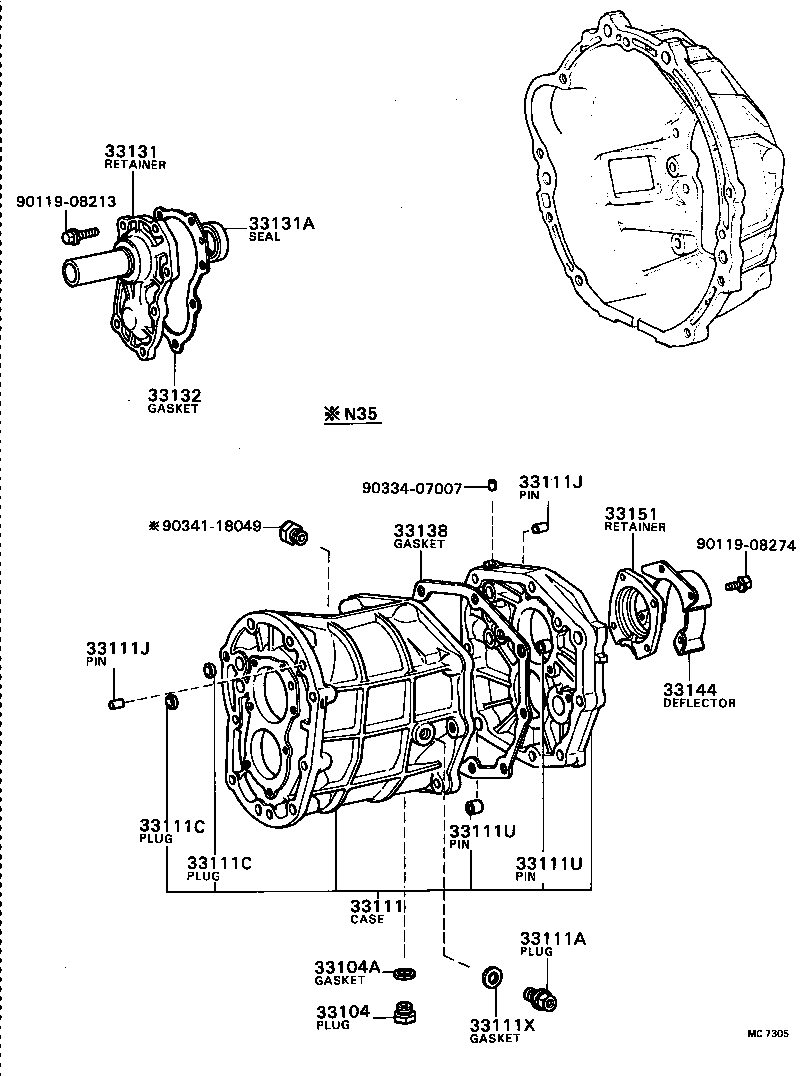

ILLUST NO. 2 OF 2(8010- )3H,4H

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111C 33111C 33111J 33111J 33111U 33111U 33111X 33131 33131A 33132 33138 33144 33151 9011908213 9011908274 9033407007 9034118049
Part # Description Qty Price
33111 - CASE, MANUAL TRANSMISSION
33101-30011

LS11#..4H

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

LS11#,MS110,117,RS110..3H,4H

外径=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LS11#,MS110,117,RS110..3H,4H

長さ=16,外径=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LS11#,MS110,117,RS110..3H,4H

長さ=16,外径=12

 2
33138 - GASKET, INTERMEDIATE PLATE
33142-31010

LS11#..4F,4H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-31010

LS11#..4F,4H

 1
Common parts
90119-08213
90119-08274
90334-07007
90341-18049
