LS110-SEMFSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

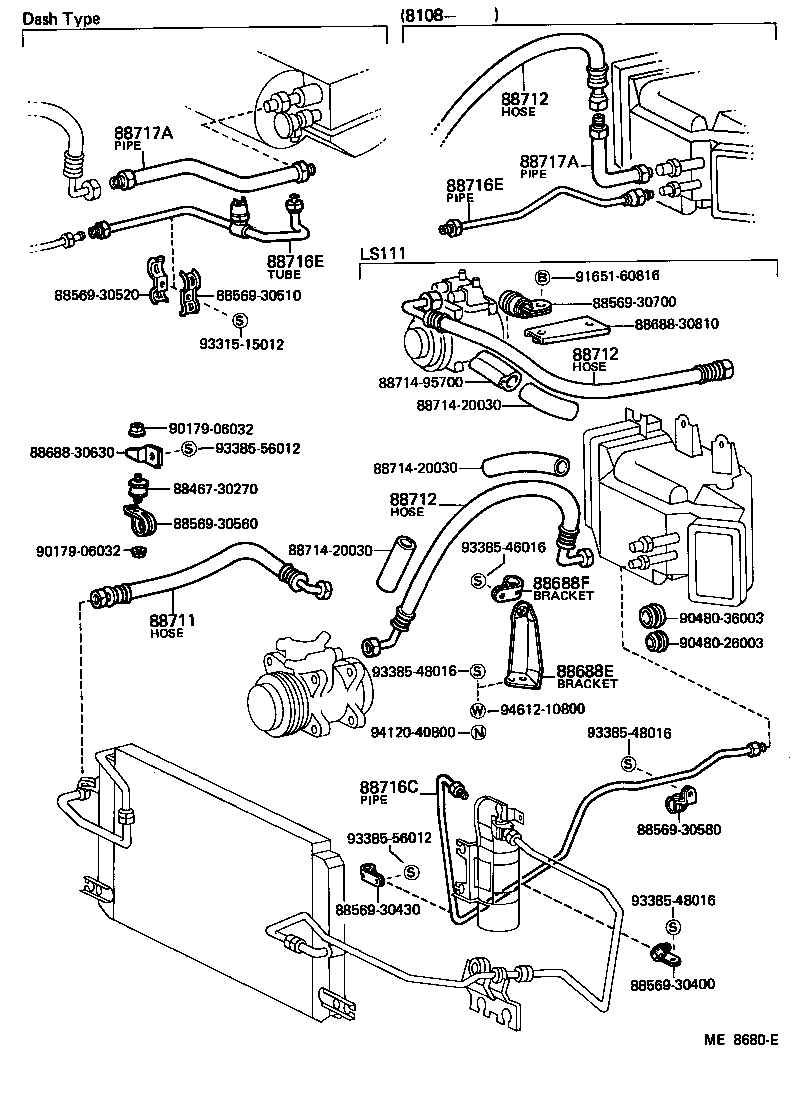

ILLUST NO. 2 OF 3(7909- )LS11#

Click highlighted areas on diagram

diagram 8846730270 8856930400 8856930430 8856930510 8856930520 8856930560 8856930580 8856930700 8868830630 8868830810 88688E 88688F 88711 88712 88712 88712 8871420030 8871420030 8871420030 8871495700 88716C 88716E 88716E 88717A 88717A 9017906032 9017906032 9048026003 9048036003 9165160816 9331515012 9338546016 9338548016 9338548016 9338548016 9338556012 9338556012 9412040800 9461210800
Part # Description Qty Price
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-30770

LS11#..CTE,DLX,SAL,SDX,SPE,STD

 1
88688-30690

LS11#

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88569-30620

LS11#

 1
88569-30660

LS11#..CTE,DLX,SAL,SDX,SPE,STD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30510

LS110,117

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30580

LS11#

 1
88712-30650

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30580

LS11#

 1
88712-30650

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-30580

LS11#

 1
88712-30650

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-30510

LS110,MS110,RS110..DSL,LPG

 1
88726-30310

GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30580

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30580

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30460

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30460

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
Common parts
88467-30270
88569-30400
88569-30430
88569-30510
88569-30520
88569-30560
88569-30580
88569-30700
88688-30630
88688-30810
88714-20030
88714-95700
90179-06032
90480-26003
90480-36003
91651-60816
93315-15012
93385-46016
93385-48016
93385-56012
94120-40800
94612-10800

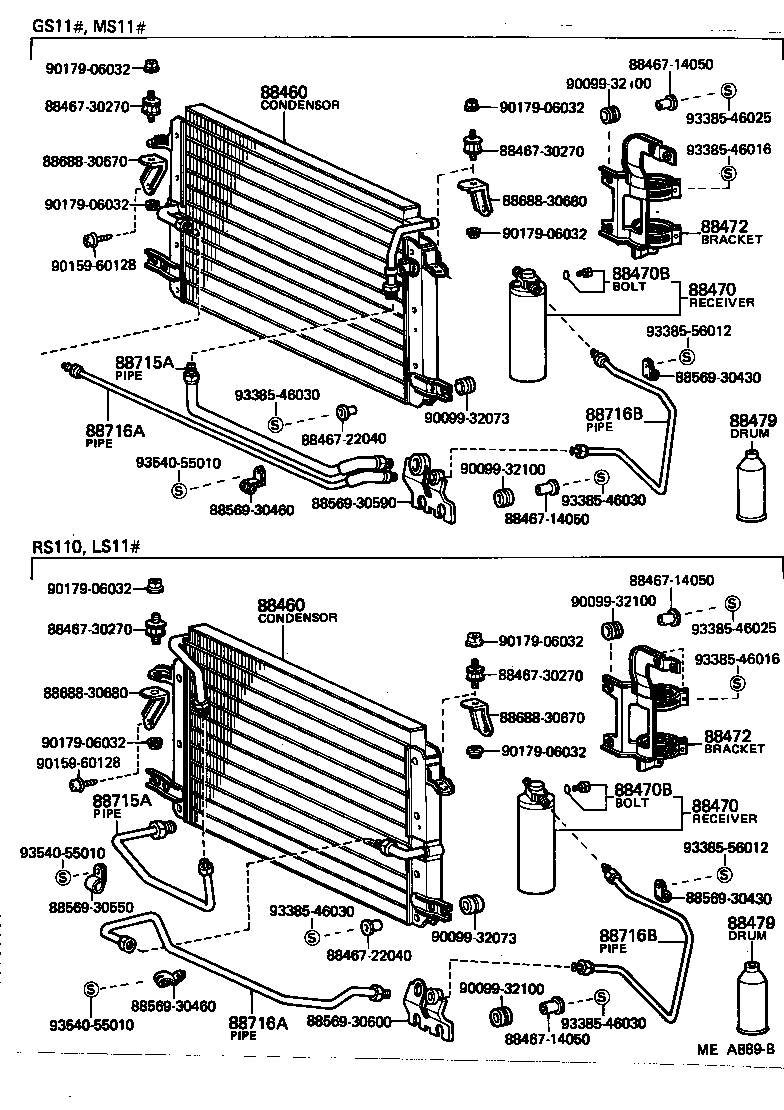

ILLUST NO. 1 OF 3(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

Click highlighted areas on diagram

diagram 88460 88460 8846714050 8846714050 8846714050 8846714050 8846722040 8846722040 8846730270 8846730270 8846730270 8846730270 88470 88470 88470B 88470B 88472 88472 88479 88479 8856930430 8856930430 8856930460 8856930460 8856930550 8856930590 8856930600 8868830670 8868830670 8868830680 8868830680 88715A 88715A 88716A 88716A 88716B 88716B 9009932073 9009932073 9009932100 9009932100 9009932100 9009932100 9015960128 9015960128 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9338546016 9338546016 9338546025 9338546025 9338546030 9338546030 9338546030 9338546030 9338556012 9338556012 9354055010 9354055010 9354055010
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30440

LS11#,RS110

 1
88460 - CONDENSER ASSY, COOLER
88460-30440

LS11#,RS110

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

LS11#..CTE,DLX,SAL,SDX,SPE,STD

 1
88470-14010

LS11#,MS110,RS110..DSL,LPG

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-30280

LS11#..CTE,DLX,SAL,SDX,SPE,STD

 1
88470-14010

LS11#,MS110,RS110..DSL,LPG

 1
88470B - BOLT, FUSE
90099-04579

GS11#,LS11#,MS11#,RS110

 1
88470B - BOLT, FUSE
90099-04579

GS11#,LS11#,MS11#,RS110

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30250

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002

GS11#,LS11#,MS11#,RS110

300G

 3
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02002

GS11#,LS11#,MS11#,RS110

300G

 3
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30310

LS11#,RS110

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30310

LS11#,RS110

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30450

LS11#,RS110

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30450

LS11#,RS110

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300

GS11#,LS11#,MS11#,RS110

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-30300

GS11#,LS11#,MS11#,RS110

 1
Common parts
88467-14050
88467-22040
88467-30270
88569-30430
88569-30460
88569-30550
88569-30590
88569-30600
88688-30670
88688-30680
90099-32073
90099-32100
90159-60128
90179-06032
93385-46016
93385-46025
93385-46030
93385-56012
93540-55010

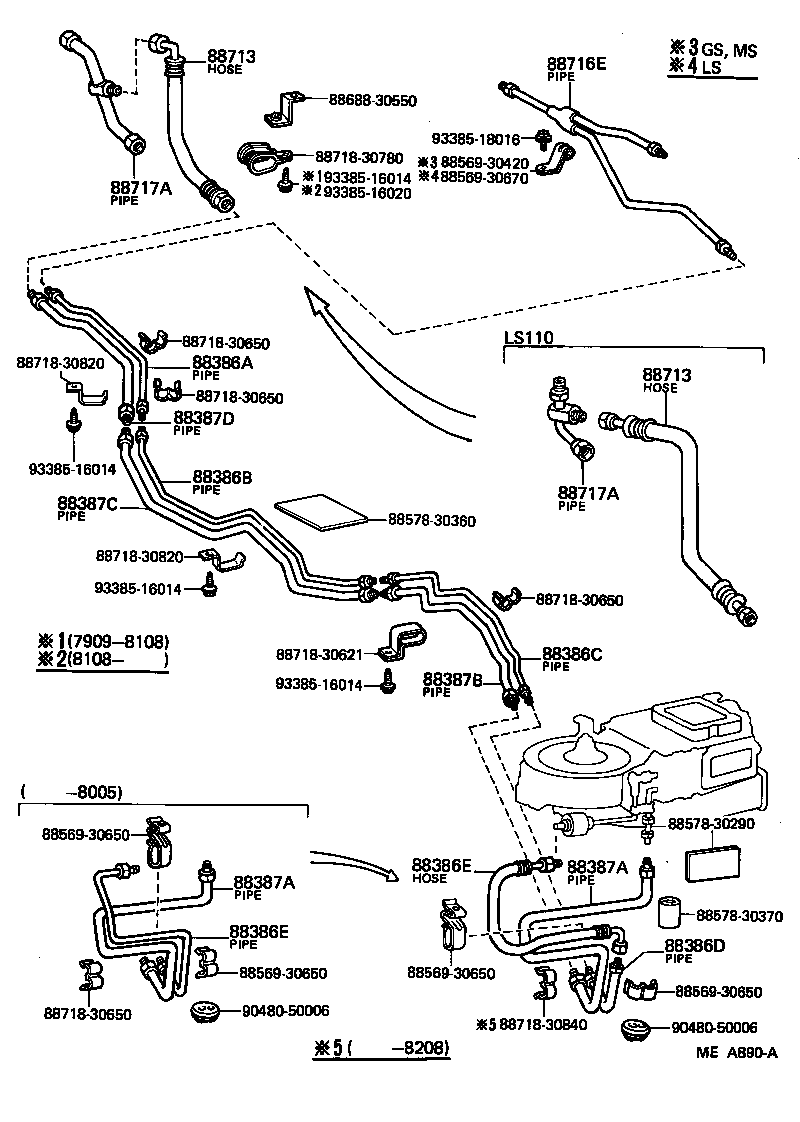

ILLUST NO. 3 OF 3(7909- )HT,SED..BTP,CTE,DLX,SAL,SDX,SPE..CBR,EFI,TBO,TD,TDE ; (8108- )LS110..

Click highlighted areas on diagram

diagram 88386A 88386B 88386C 88386D 88386E 88386E 88387A 88387A 88387B 88387C 88387D 8856930420 8856930650 8856930650 8856930650 8856930650 8856930670 8857830290 8857830360 8857830370 8868830550 88713 88713 88716E 88717A 88717A 8871830621 8871830650 8871830650 8871830650 8871830650 8871830780 8871830820 8871830820 8871830840 9048050006 9048050006 9338516014 9338516014 9338516014 9338516014 9338516020 9338518016
Part # Description Qty Price
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-30580

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30460

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30460

LS110,117..CTE,DLX,SAL,SDX,SPE,STD

 1
Common parts
88569-30420
88569-30650
88569-30670
88578-30290
88578-30360
88578-30370
88688-30550
88718-30621
88718-30650
88718-30780
88718-30820
88718-30840
90480-50006
93385-16014
93385-16020
93385-18016
