LS110-SEMFSY (1979)
Toyota Crown

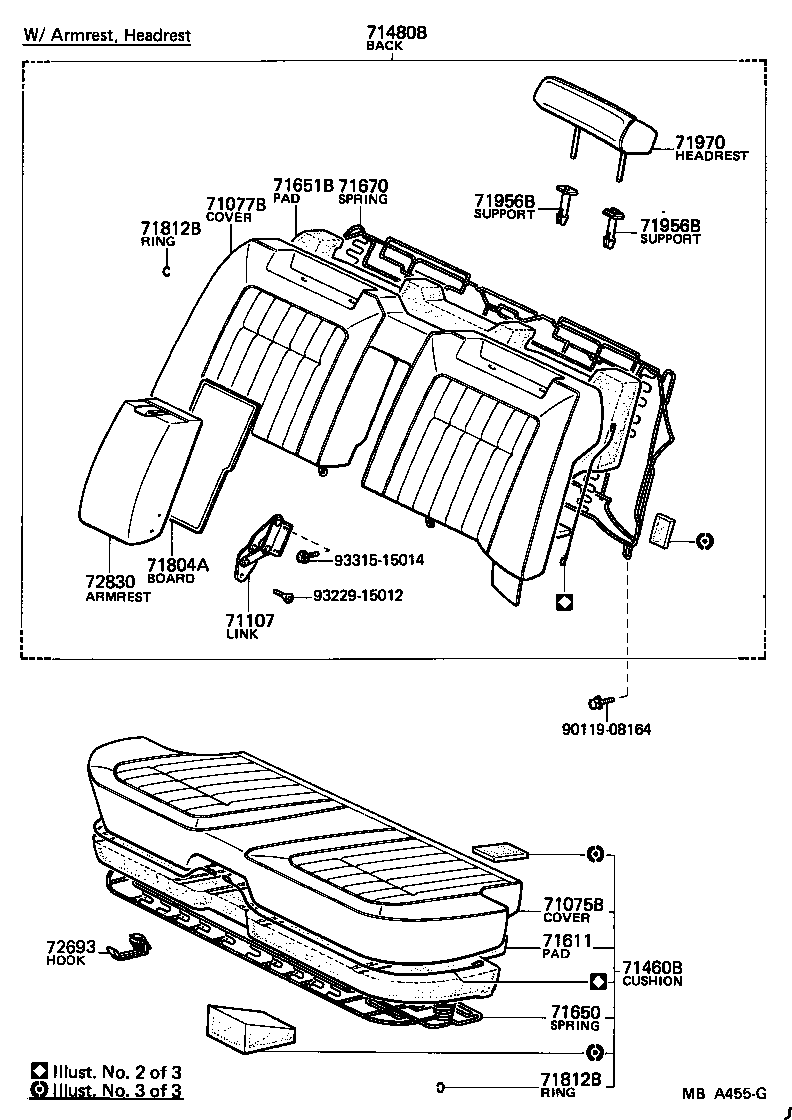

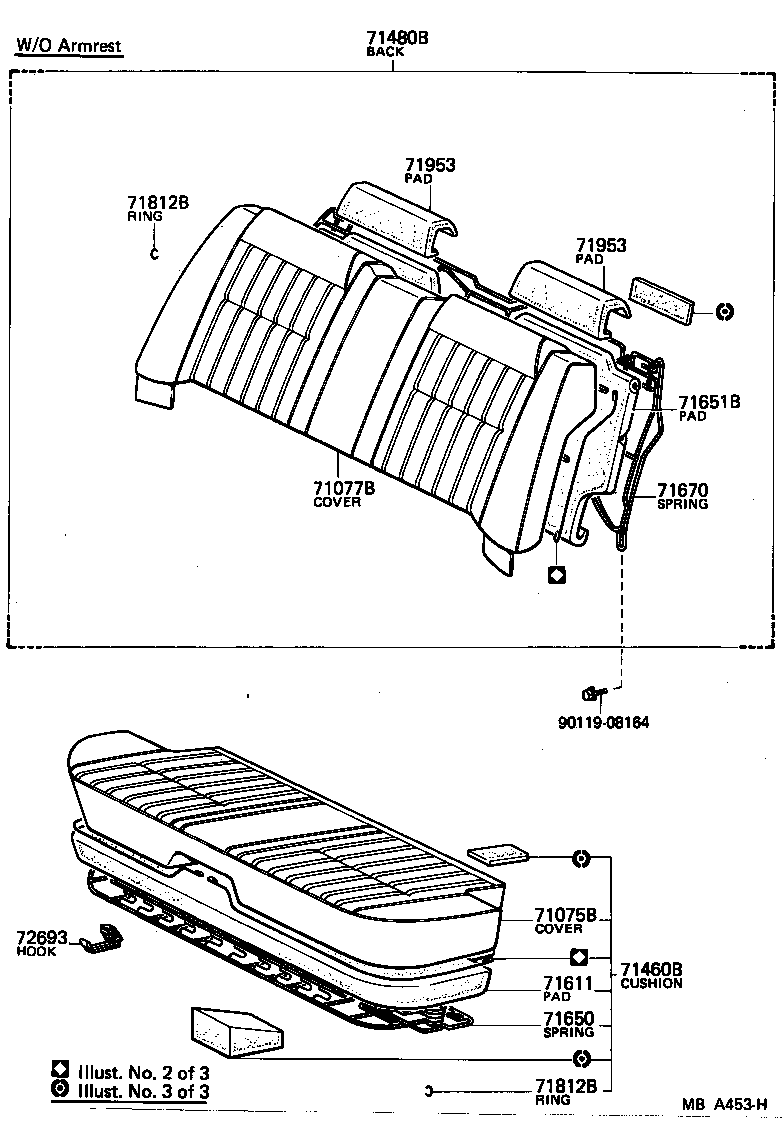

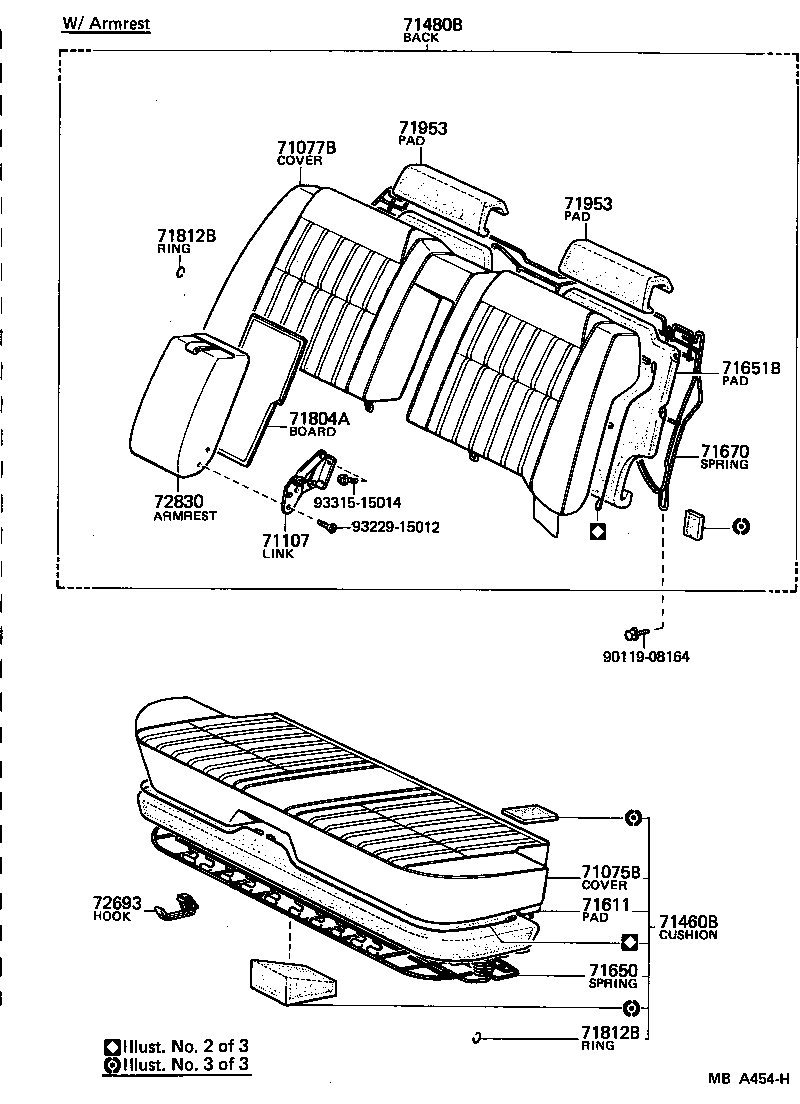

ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3066004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3066005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3066103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-3066105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3073004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3073005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3072004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3072005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3078005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3078004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3078103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3078105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30400 |
LS110,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71611-30401 |
GS110,LS110,111..SED..(SAL,SDX) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30210 |
GS110,LS110,111,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30410 |
LS110,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71651-30410 |
LS110,MS110..SDX |
1 | ||
| 71507-30020 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30240 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30060 |
GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX,STD,TAX) |
2 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30060 |
GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX,STD,TAX) |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| Common parts | ||||
| 90119-08164 | ||||
ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3066004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3066005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3066103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-3066105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3073004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3073005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72808-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 72807-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72807-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72808-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3072004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3072005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3078005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3078004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3078103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3078105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30400 |
LS110,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71611-30401 |
GS110,LS110,111..SED..(SAL,SDX) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30210 |
GS110,LS110,111,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30410 |
LS110,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71651-30410 |
LS110,MS110..SDX |
1 | ||
| 71507-30020 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30240 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011003 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) GRAY,GRAY,TRIM1# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71803-3011015 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011014 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30060 |
GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX,STD,TAX) |
2 | ||
| 71953 - PAD, REAR SEAT HEADREST | ||||
| 71953-30060 |
GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX,STD,TAX) |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3004004 |
LS110,MS110..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3004005 |
LS110,MS110..SDX GREIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3004103 |
GS110,LS110,111..SED..SDX GRAY,GRAY,TRIM1# |
1 | ||
| 72830-3004105 |
GS110,LS110,111..SED..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3066004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3066005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3066103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-3066105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3073004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3073005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72808-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 72807-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72807-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72808-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3072004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3072005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3078005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3078004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3078103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3078105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30400 |
LS110,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71611-30401 |
GS110,LS110,111..SED..(SAL,SDX) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30210 |
GS110,LS110,111,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30410 |
LS110,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71651-30410 |
LS110,MS110..SDX |
1 | ||
| 71507-30020 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30240 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011003 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) GRAY,GRAY,TRIM1# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71803-3011015 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011014 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-30011 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 72693-30011 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72693-30010 |
LS110,MS110,112,RS110..HT,SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3004004 |
LS110,MS110..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3004005 |
LS110,MS110..SDX GREIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3004103 |
GS110,LS110,111..SED..SDX GRAY,GRAY,TRIM1# |
1 | ||
| 72830-3004105 |
GS110,LS110,111..SED..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||

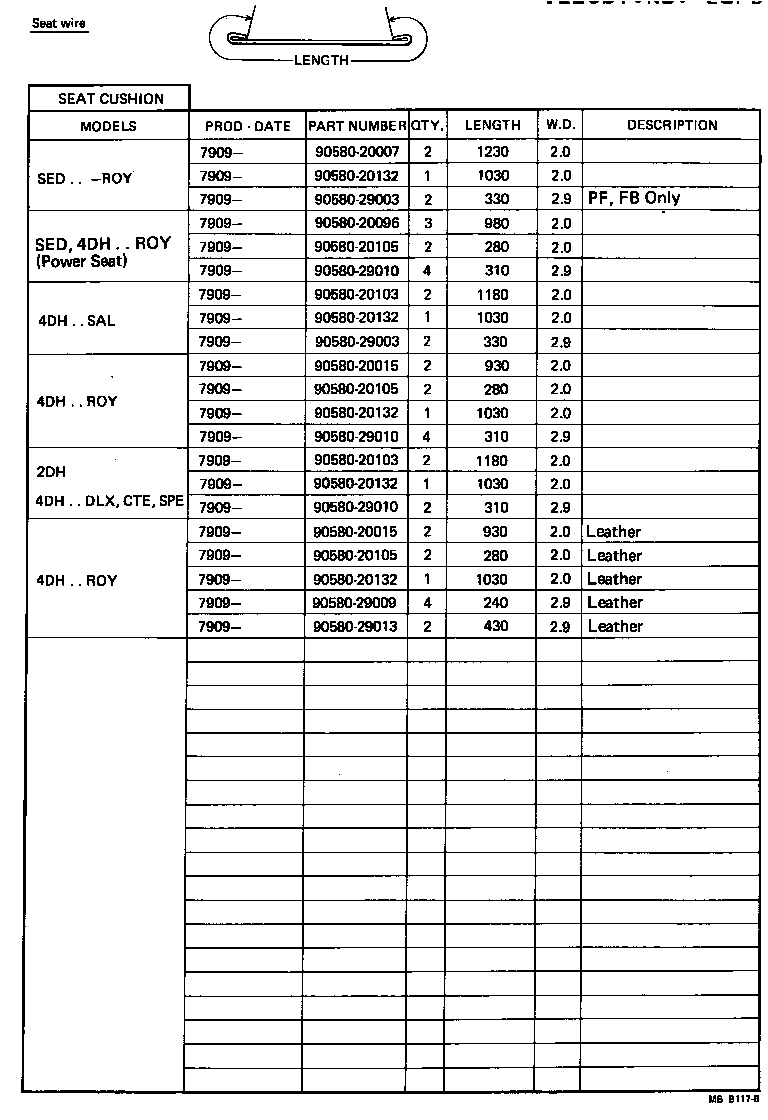

ILLUST NO. 2 OF 3(7909-8108)HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20007 | ||||
| 90580-20015 | ||||
| 90580-20096 | ||||
| 90580-20103 | ||||
| 90580-20105 | ||||
| 90580-20132 | ||||
| 90580-29003 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29013 | ||||

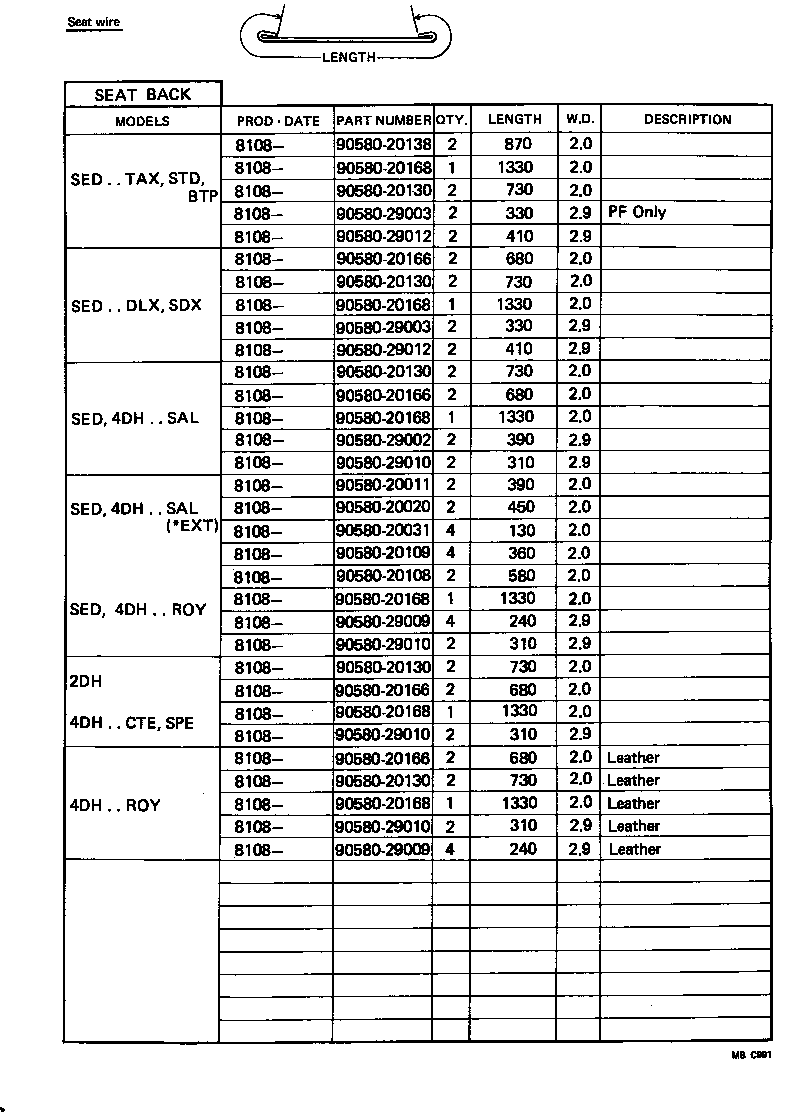

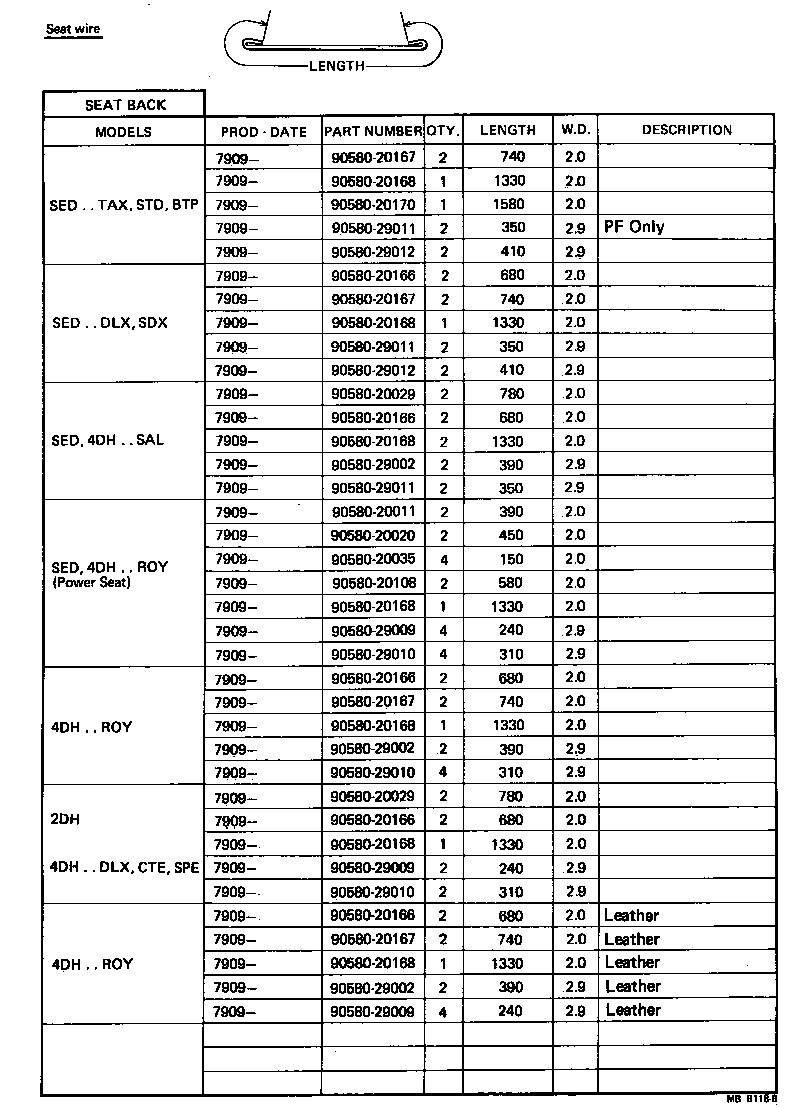

ILLUST NO. 2 OF 3(7909-8108)HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20020 | ||||
| 90580-20029 | ||||
| 90580-20035 | ||||
| 90580-20108 | ||||
| 90580-20166 | ||||
| 90580-20167 | ||||
| 90580-20168 | ||||
| 90580-20170 | ||||
| 90580-29002 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29011 | ||||
| 90580-29012 | ||||

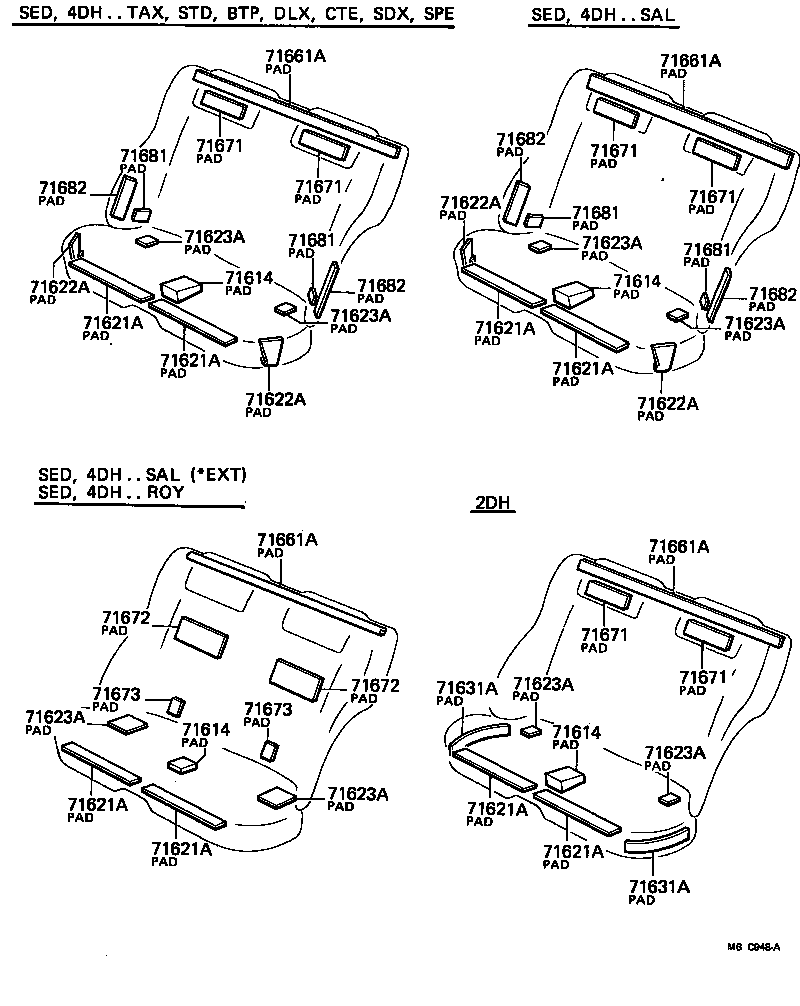

ILLUST NO. 3 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
GS110,LS110,111,MS110,RS110..HT,SED |
1 | ||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
GS110,LS110,111,MS110,RS110..HT,SED |
1 | ||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
GS110,LS110,111,MS110,RS110..HT,SED |
1 | ||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-30110 |
GS110,LS110,111,MS110,RS110..HT,SED |
1 | ||
| 71614-30110 |
LS110,MS110,112,RS110..HT,SED |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-30220 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30090 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30090 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30090 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-30090 |
GS110,LS110,111,MS110,RS110..(HT,SED)..4D |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71623A - PAD, REAR SEAT CUSHION SILENCER, C | ||||
| 71623-30010 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 60X110 |
2 | ||
| 71623-30040 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX 70X110 |
2 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30080 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30080 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30080 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71662-30080 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(BTP,CTE,DLX,SDX,SPE,STD,TAX) |
1 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-30110 |
MS112..2D;GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX) |
2 | ||
| 71681 - PAD, REAR SEAT BACK CORNER, A | ||||
| 71681-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71681 - PAD, REAR SEAT BACK CORNER, A | ||||
| 71681-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71681 - PAD, REAR SEAT BACK CORNER, A | ||||
| 71681-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71681 - PAD, REAR SEAT BACK CORNER, A | ||||
| 71681-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71584-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71584-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71584-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71584-30020 |
GS110,LS110,111,MS110,RS110..SED |
2 | ||

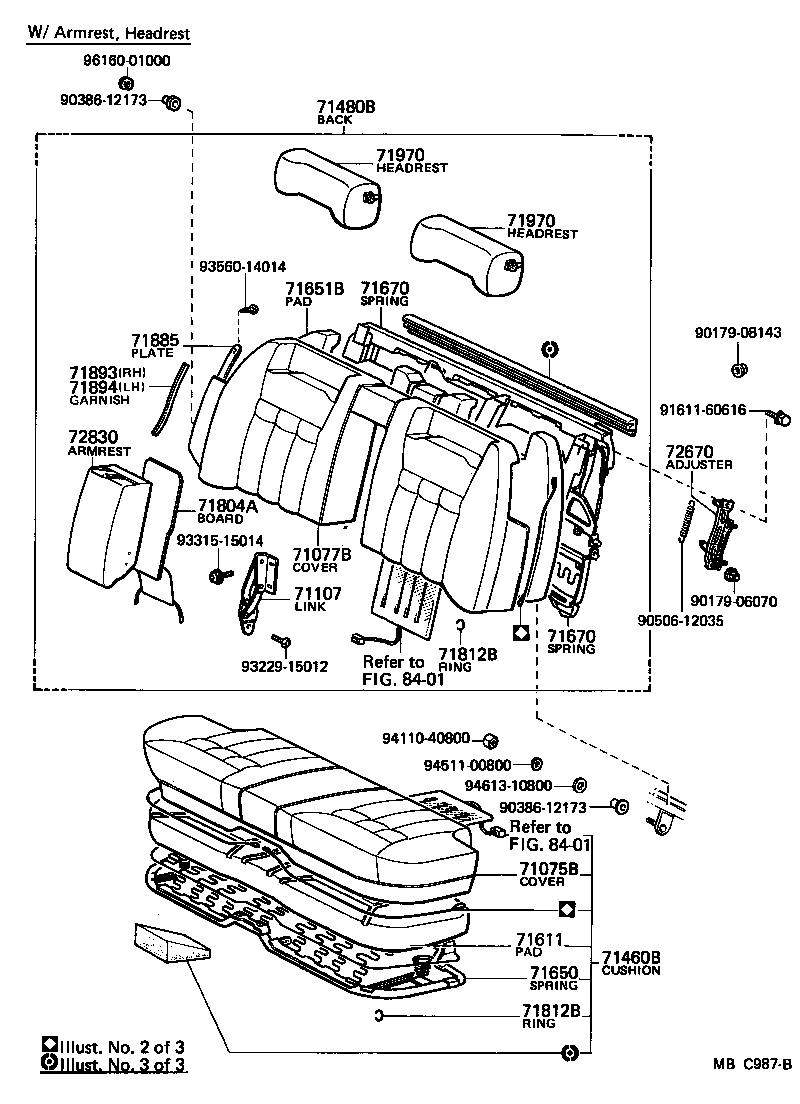

ILLUST NO. 1 OF 3(7909- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-3066004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-3066005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71075-3066103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-3066105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-3073004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-3073005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-3073103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71107 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72808-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 72807-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72807-30010 |
LS110,MS110,112,RS110..SED..(DLX,SAL,SDX) RH |
1 | ||
| 72808-30010 |
GS110,LS110,111,RS110..SED..(DLX,SAL,SDX) LH |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-3072004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-3072005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-3072103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-3078005 |
LS110,MS110..SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71480-3078004 |
LS110,MS110..SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-3078103 |
GS110,LS110,111..SED..SDX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-3078105 |
GS110,LS110,111..SED..SDX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-30400 |
LS110,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71611-30401 |
GS110,LS110,111..SED..(SAL,SDX) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-30210 |
GS110,LS110,111,MS110,112..SED..(SAL,SDX) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-30410 |
LS110,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71651-30410 |
LS110,MS110..SDX |
1 | ||
| 71507-30020 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30240 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-30240 |
GS110,LS110,111,MS110,RS110..SED..(DLX,SDX) |
1 | ||
| 71804A - BOARD SUB-ASSY, REAR SEAT ARMREST HOLE | ||||
| 71803-3011002 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71803-3011005 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011003 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) GRAY,GRAY,TRIM1# |
1 | ||
| 71803-3011004 |
MS112..HT;MS112..SED..SAL;LS110,MS110,RS110..CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 71803-3011015 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BEIGE,BEIGE,TRIM4# |
1 | ||
| 71803-3011014 |
GS110,LS110,111,MS110,RS110..(HT,SED)..(CTE,DLX,SDX,SPE) BLUE,BLUE,TRIM8# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3004004 |
LS110,MS110..SDX BLUE,BLUE,TRIM8# |
1 | ||
| 72830-3004005 |
LS110,MS110..SDX GREIGE,BEIGE,TRIM4# |
1 | ||
| 72830-3004103 |
GS110,LS110,111..SED..SDX GRAY,GRAY,TRIM1# |
1 | ||
| 72830-3004105 |
GS110,LS110,111..SED..SDX BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08143 | ||||
| 90386-12173 | ||||
| 90506-12035 | ||||
| 91611-60616 | ||||
| 93229-15012 | ||||
| 93315-15014 | ||||
| 93560-14014 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94613-10800 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(8108- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20015 | ||||
| 90580-20019 | ||||
| 90580-20096 | ||||
| 90580-20103 | ||||
| 90580-20132 | ||||
| 90580-29003 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29013 | ||||
ILLUST NO. 2 OF 3(8108- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20020 | ||||
| 90580-20031 | ||||
| 90580-20108 | ||||
| 90580-20109 | ||||
| 90580-20130 | ||||
| 90580-20138 | ||||
| 90580-20166 | ||||
| 90580-20168 | ||||
| 90580-29002 | ||||
| 90580-29003 | ||||
| 90580-29009 | ||||
| 90580-29010 | ||||
| 90580-29012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
