LS110-SEMFSY (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909- )L

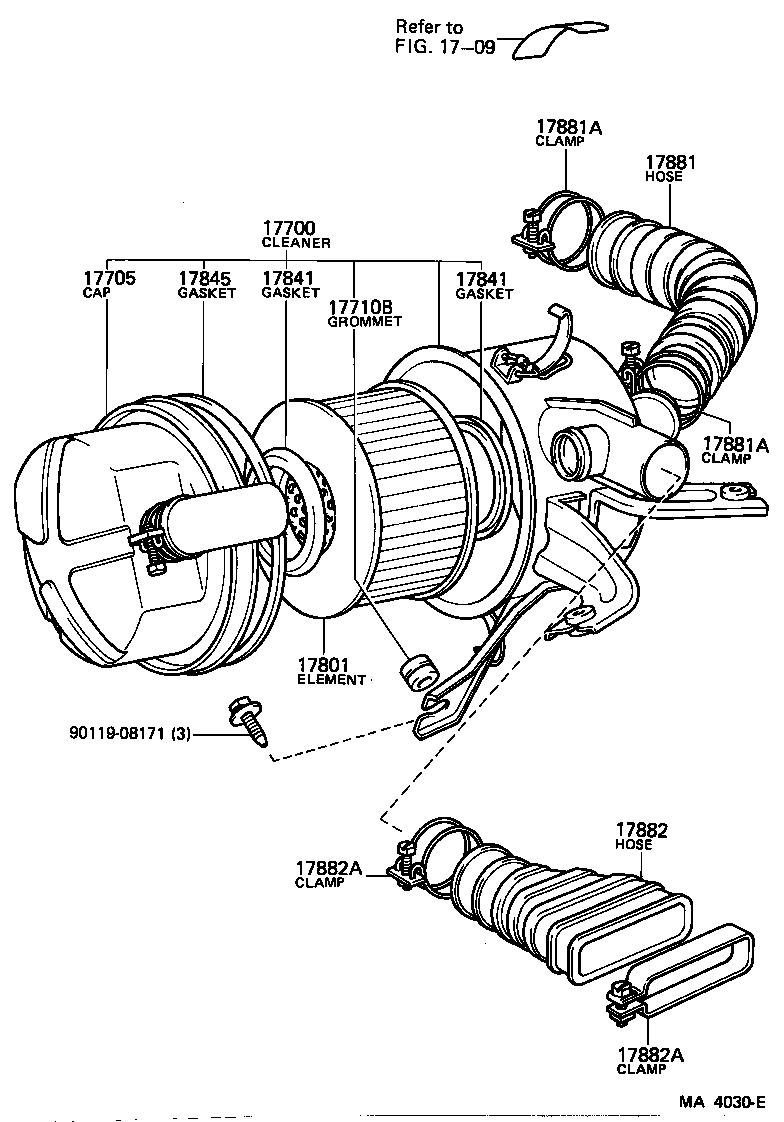

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-54040 |
L..LS110,117 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54020 |
L..LS110,117 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16009 |
L..LS110,117 |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54010 |
L..LS110,117 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
L..LS110,117 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
L..LS110,117 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
L..LS110,117 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54040 |
L..LS110,117 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LS110,117 ID=69 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LS110,117 ID=69 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54040 |
L..LS110,117 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01008 |
L..LS110,117 BODY SIDE |
1 | ||
| 96111-10670 |
L..LS110,117 AIR CLEANER SIDE,ID=67 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01008 |
L..LS110,117 BODY SIDE |
1 | ||
| 96111-10670 |
L..LS110,117 AIR CLEANER SIDE,ID=67 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| Linked diagrams | ||||
| 1709 | ||||
