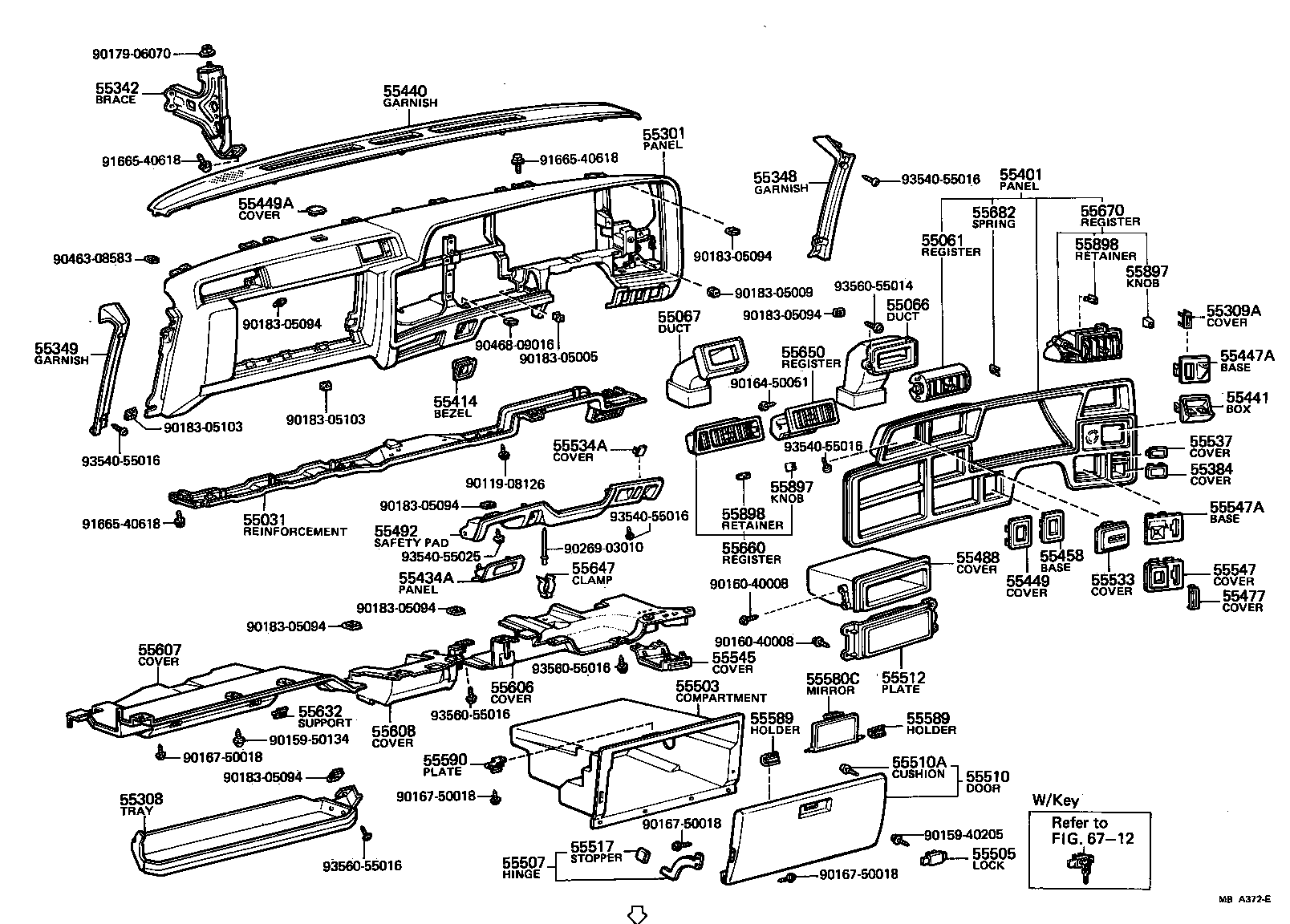

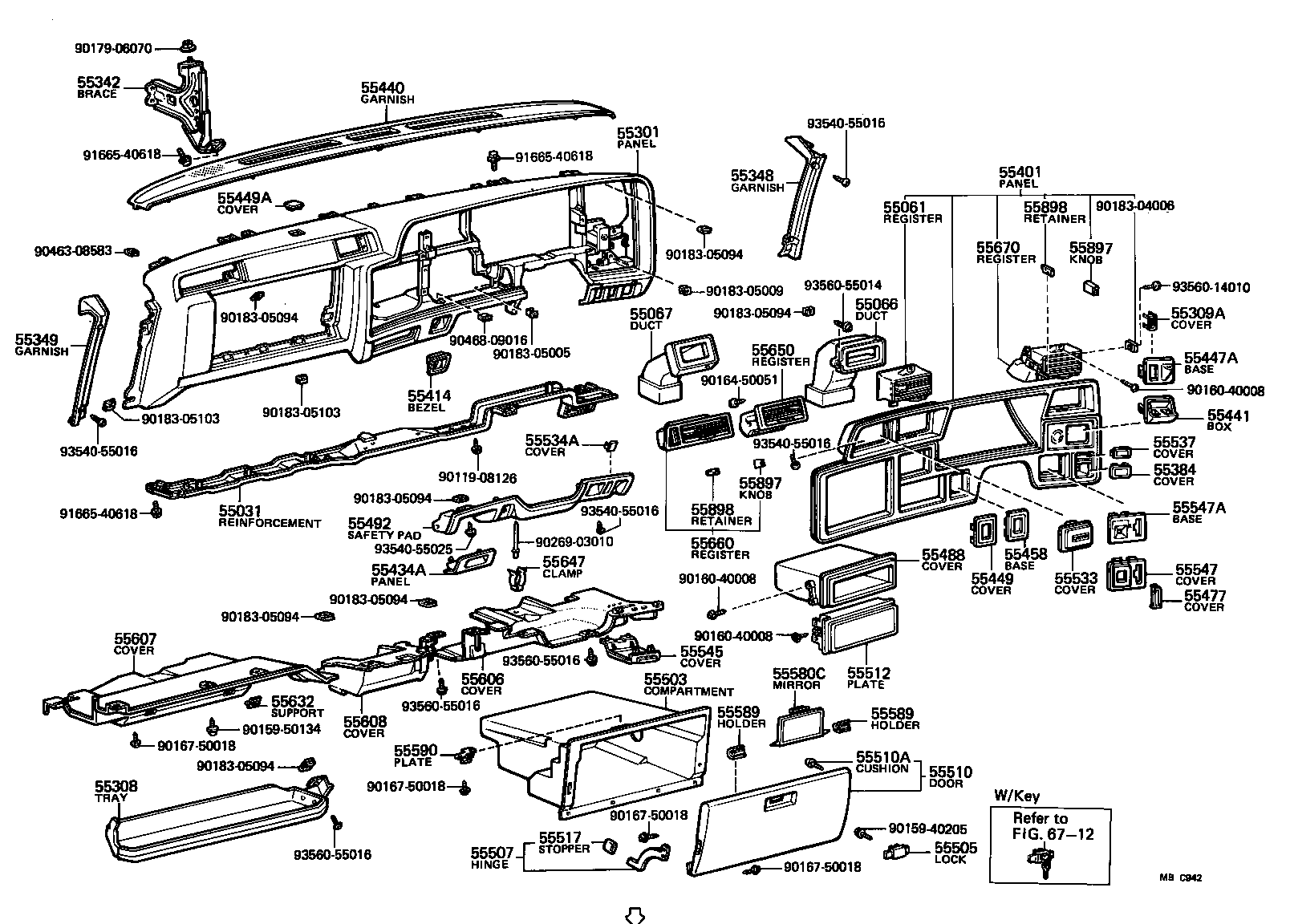

LS110-SEMDSY (1979)
Toyota Crown
(7909-8108)BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55305-30100 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55305-30101 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-30020 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55680-30020 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-30080 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55067 - DUCT SUB-ASSY, AIR OUTLET, CENTER NO.2 | ||||
| 55836-30040 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-3022005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55301-3022002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55301-3022004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-3022015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55301-3022004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-3022003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-3005002 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55601-3005003 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
1 | ||
| 55601-3005015 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 55601-3005005 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 55601-3005004 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55601-3005004 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55348 - GARNISH, INSTRUMENT PANEL SIDE, RH | ||||
| 55435-3009001 |
LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM4# |
1 | ||
| 55435-3009001 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM1# |
1 | ||
| 55435-3009004 |
LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55435-3009002 |
LS11#,MS11#,RS110..SED,V,WG DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55435-3009003 |
GS11#,LS11#,MS11#,RS110..SED,V,WG GRAY,GRAY,TRIM1# |
1 | ||
| 55435-3009015 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BEIGE,BEIGE,TRIM4# |
1 | ||
| 55435-3009005 |
LS11#,MS11#,RS110..SED,V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 55435-3009004 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55349 - GARNISH, INSTRUMENT PANEL SIDE, LH | ||||
| 55436-3004002 |
LS11#,MS11#,RS110..SED,V,WG DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55436-3004001 |
LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM4# |
1 | ||
| 55436-3004004 |
LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55436-3004001 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM1# |
1 | ||
| 55436-3004015 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BEIGE,BEIGE,TRIM4# |
1 | ||
| 55436-3004005 |
LS11#,MS11#,RS110..SED,V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 55436-3004004 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55436-3004003 |
GS11#,LS11#,MS11#,RS110..SED,V,WG GRAY,GRAY,TRIM1# |
1 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-20011 |
MS112..HT;MS112..SED..SAL;LS11#,MS110,117..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,DSL,EFI,TBO) |
1 | ||
| 55384-20011 |
GS117,MS117;GS110,LS110,117,MS110..(BTP,DLX,STD)..(CBR,DSL,EFI) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30460 |
GS110,LS110,MS110,RS110..BTP,CTE,DLX,STD |
1 | ||
| 55404-30430 |
LS110,MS110,RS110..CTE,DLX |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-3004004 |
LS117..DLX;LS110,MS11#..4F,5F BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3004004 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3004005 |
LS117..DLX;LS110,MS11#..4F,5F GREIGE,BEIGE,TRIM4# |
1 | ||
| 55434-3004003 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 55434-3004002 |
LS117..DLX;LS110,MS11#..4F,5F DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55434-3004015 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55044-3009002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55044-3009005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3009015 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3009004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3009004 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3009003 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55528-30010 |
GS117,MS117;GS110,LS110,117,MS110..(BTP,CTE,DLX,STD)..(CBR,DSL,EFI) |
1 | ||
| 55528-30010 |
LS11#,MS11#..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55549-30040 |
LS110,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD) |
1 | ||
| 55549-30040 |
GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,STD) BLACK |
1 | ||
| 55449A - COVER, COOLER SENSOR HOLE | ||||
| 55548-3005005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55548-3005004 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3005003 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55548-3005015 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55548-3005002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55548-3005004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55477 - COVER, OVERDRIVE KNOB HOLE | ||||
| 55537-1601001 |
GS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD) BLACK |
1 | ||
| 55537-1601001 |
LS11#..MTM..(BTP,CTE,DLX,SDX,STD) BLACK |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-30090 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD |
1 | ||
| 55521-30080 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-3007004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55432-3007005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3007015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3007004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55556-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3017005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3017003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55550-3017004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3017015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3017004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3017002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-3005002 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55534-3005004 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005003 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55534-3005015 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55534-3005004 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005005 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-3004001 |
LS11#,MS11#,RS110 BLACK,BLACK,TRIM4# |
1 | ||
| 55540-3004002 |
LS11#,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55540-3004004 |
LS11#,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55540-3004005 |
LS11#,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55540-3006004 |
GS11#,LS11#,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55540-3006001 |
GS11#,LS11#,MS11#,RS110 BLACK,BLACK,TRIM1# |
1 | ||
| 55540-3006003 |
GS11#,LS11#,MS11#,RS110 GRAY,GRAY,TRIM1# |
1 | ||
| 55540-3006005 |
GS11#,LS11#,MS11#,RS110 BEIGE,BEIGE,TRIM4# |
1 | ||
| 55547A - BASE, REMOTE CONTROL MIRROR HOLE | ||||
| 55446-30100 |
GS110,LS110,MS110,RS110..BTP,CTE,DLX BLACK |
1 | ||
| 55446-30100 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-12010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-3004003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55606-3004002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55606-3004004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55606-3004005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55606-3004004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55606-3004015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3001104 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001104 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001105 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001102 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001103 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55607-3001005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001115 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55608-3001002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55608-3001003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55608-3001004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55608-3001005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55608-3001004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55608-3001015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55632 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55632-30020 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-30010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3007001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLACK-M,BLACK,TRIM1# |
1 | ||
| 55650-30050 |
LS110,MS110,112,RS110..CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55650-3007004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3007005 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-3006001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLACK-M,BLACK,TRIM1# |
1 | ||
| 55660-30040 |
LS110,MS110,112,RS110..CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55660-3006005 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3006004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30010 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55670-30030 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-30020 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55905-12050 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55905-12050 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90159-40205 | ||||
| 90159-50134 | ||||
| 90160-40008 | ||||
| 90164-50051 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90183-05005 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90269-03010 | ||||
| 90463-08583 | ||||
| 90468-09016 | ||||
| 91665-40618 | ||||
| 93540-55016 | ||||
| 93540-55025 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
(8108- )BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55305-30100 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55305-30101 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-30020 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55680-30020 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-30080 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55067 - DUCT SUB-ASSY, AIR OUTLET, CENTER NO.2 | ||||
| 55836-30040 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-3022005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55301-3022002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55301-3022004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-3022015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55301-3022004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-3022003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-3005002 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55601-3005003 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
1 | ||
| 55601-3005015 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 55601-3005005 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 55601-3005004 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55601-3005004 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55306-30070 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55348 - GARNISH, INSTRUMENT PANEL SIDE, RH | ||||
| 55435-3009001 |
LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM4# |
1 | ||
| 55435-3009001 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM1# |
1 | ||
| 55435-3009004 |
LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55435-3009002 |
LS11#,MS11#,RS110..SED,V,WG DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55435-3009003 |
GS11#,LS11#,MS11#,RS110..SED,V,WG GRAY,GRAY,TRIM1# |
1 | ||
| 55435-3009015 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BEIGE,BEIGE,TRIM4# |
1 | ||
| 55435-3009005 |
LS11#,MS11#,RS110..SED,V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 55435-3009004 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55349 - GARNISH, INSTRUMENT PANEL SIDE, LH | ||||
| 55436-3004002 |
LS11#,MS11#,RS110..SED,V,WG DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55436-3004001 |
LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM4# |
1 | ||
| 55436-3004004 |
LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55436-3004001 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLACK,BLACK,TRIM1# |
1 | ||
| 55436-3004015 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BEIGE,BEIGE,TRIM4# |
1 | ||
| 55436-3004005 |
LS11#,MS11#,RS110..SED,V,WG GREIGE,BEIGE,TRIM4# |
1 | ||
| 55436-3004004 |
GS11#,LS11#,MS11#,RS110..SED,V,WG BLUE,BLUE,TRIM8# |
1 | ||
| 55436-3004003 |
GS11#,LS11#,MS11#,RS110..SED,V,WG GRAY,GRAY,TRIM1# |
1 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-20011 |
MS112..HT;MS112..SED..SAL;LS11#,MS110,117..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,DSL,EFI,TBO) |
1 | ||
| 55384-20011 |
GS117,MS117;GS110,LS110,117,MS110..(BTP,DLX,STD)..(CBR,DSL,EFI) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30460 |
GS110,LS110,MS110,RS110..BTP,CTE,DLX,STD |
1 | ||
| 55404-30430 |
LS110,MS110,RS110..CTE,DLX |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-3004004 |
LS117..DLX;LS110,MS11#..4F,5F BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3004004 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F BLUE,BLUE,TRIM8# |
1 | ||
| 55434-3004005 |
LS117..DLX;LS110,MS11#..4F,5F GREIGE,BEIGE,TRIM4# |
1 | ||
| 55434-3004003 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 55434-3004002 |
LS117..DLX;LS110,MS11#..4F,5F DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55434-3004015 |
LS117..DLX;GS11#,LS110,111,MS110,117,RS110..4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55044-3009002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55044-3009005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3009015 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
1 | ||
| 55044-3009004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3009004 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 55044-3009003 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55528-30010 |
GS117,MS117;GS110,LS110,117,MS110..(BTP,CTE,DLX,STD)..(CBR,DSL,EFI) |
1 | ||
| 55528-30010 |
LS11#,MS11#..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55549-30040 |
LS110,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE,STD) |
1 | ||
| 55549-30040 |
GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,CTE,DLX,STD) BLACK |
1 | ||
| 55449A - COVER, COOLER SENSOR HOLE | ||||
| 55548-3005005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55548-3005004 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55548-3005003 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55548-3005015 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55548-3005002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55548-3005004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55477 - COVER, OVERDRIVE KNOB HOLE | ||||
| 55537-1601001 |
GS11#,LS11#,MS110,117,RS110..(3FC,3HC,4F,4H,5F)..(BTP,CTE,DLX,SAL,SDX,SPE,STD) BLACK |
1 | ||
| 55537-1601001 |
LS11#..MTM..(BTP,CTE,DLX,SDX,STD) BLACK |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-30090 |
GS11#,LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD |
1 | ||
| 55521-30080 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-3007004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55432-3007005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3007015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55432-3007004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55432-3007003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-30010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55556-30040 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-3017005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3017003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55550-3017004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3017015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-3017004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55550-3017002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55534-3005002 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55534-3005004 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005003 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55534-3005015 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55534-3005004 |
GS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55534-3005005 |
MS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-3004001 |
LS11#,MS11#,RS110 BLACK,BLACK,TRIM4# |
1 | ||
| 55540-3004002 |
LS11#,MS11#,RS110 DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55540-3004004 |
LS11#,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55540-3004005 |
LS11#,MS11#,RS110 GREIGE,BEIGE,TRIM4# |
1 | ||
| 55540-3006004 |
GS11#,LS11#,MS11#,RS110 BLUE,BLUE,TRIM8# |
1 | ||
| 55540-3006001 |
GS11#,LS11#,MS11#,RS110 BLACK,BLACK,TRIM1# |
1 | ||
| 55540-3006003 |
GS11#,LS11#,MS11#,RS110 GRAY,GRAY,TRIM1# |
1 | ||
| 55540-3006005 |
GS11#,LS11#,MS11#,RS110 BEIGE,BEIGE,TRIM4# |
1 | ||
| 55547A - BASE, REMOTE CONTROL MIRROR HOLE | ||||
| 55446-30100 |
GS110,LS110,MS110,RS110..BTP,CTE,DLX BLACK |
1 | ||
| 55446-30100 |
LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-12010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-3004003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55606-3004002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55606-3004004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55606-3004005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55606-3004004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55606-3004015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3001104 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001104 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55607-3001105 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001102 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55607-3001103 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55607-3001005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55607-3001115 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55608 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55608-3001002 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55608-3001003 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GRAY,GRAY,TRIM1# |
1 | ||
| 55608-3001004 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55608-3001005 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD GREIGE,BEIGE,TRIM4# |
1 | ||
| 55608-3001004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55608-3001015 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55632 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55632-30020 |
GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE |
2 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-30010 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-3007001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLACK-M,BLACK,TRIM1# |
1 | ||
| 55650-30050 |
LS110,MS110,112,RS110..CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55650-3007004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55650-3007005 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-3006001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLACK-M,BLACK,TRIM1# |
1 | ||
| 55660-30040 |
LS110,MS110,112,RS110..CTE,DLX,ROY,SAL,SDX,SPE |
1 | ||
| 55660-3006005 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55660-3006004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD BLUE,BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30010 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55670-30030 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55905-12050 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-30030 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55905-12050 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| 55898 - RETAINER, AIR DAMPER CONTROL LEVER KNOB | ||||
| 55918-22010 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
2 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90159-40205 | ||||
| 90159-50134 | ||||
| 90160-40008 | ||||
| 90164-50051 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90183-04006 | ||||
| 90183-05005 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90269-03010 | ||||
| 90463-08583 | ||||
| 90468-09016 | ||||
| 91665-40618 | ||||
| 93540-55016 | ||||
| 93540-55025 | ||||
| 93560-14010 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
