LS110-SEKRSY (1979)
Toyota Crown

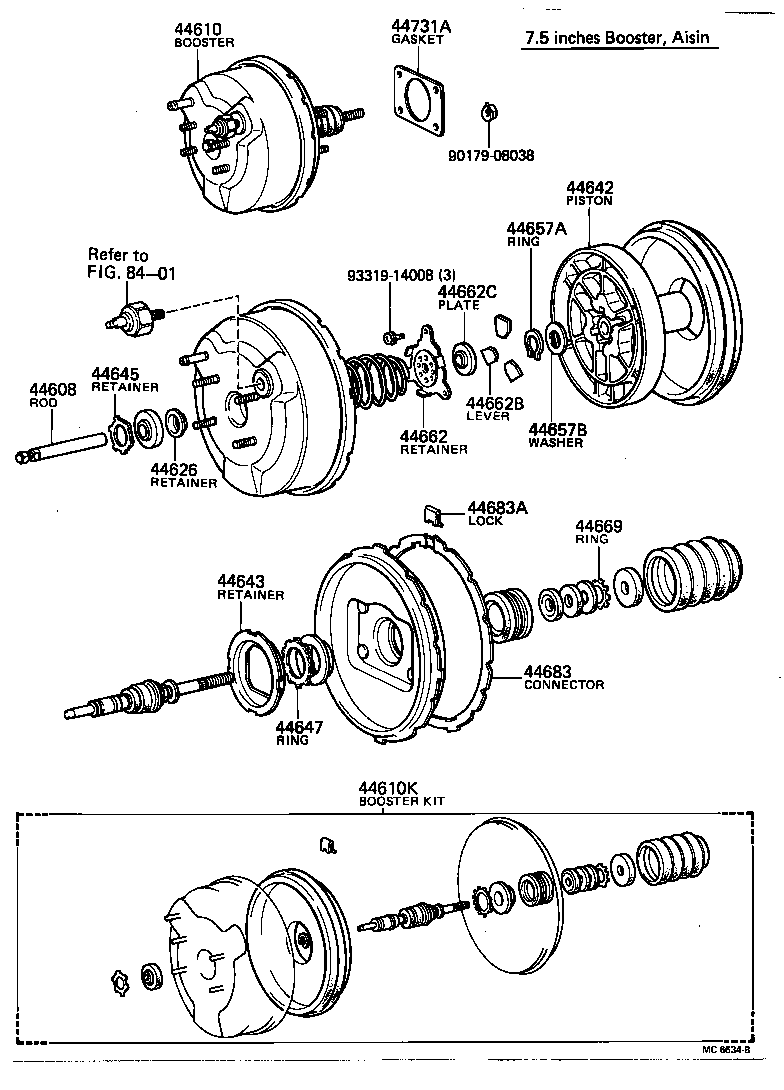

ILLUST NO. 1 OF 2(7909- )LS110..STD,TAX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-30370 |
LS110..STD,TAX |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-30310 |
LS110..STD,TAX |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
GS11#,LS11#,MS112,117;MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
LS110..STD,TAX |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
LS110..STD,TAX |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
LS110..STD,TAX |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-20600 |
LS110..STD,TAX |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
GS11#,LS11#,MS117;MS110,RS110..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,LPG) AISIN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
LS110..STD,TAX |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
LS110..STD,TAX |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-30020 |
GS11#,LS11#,MS11#,RS110 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8401 | ||||

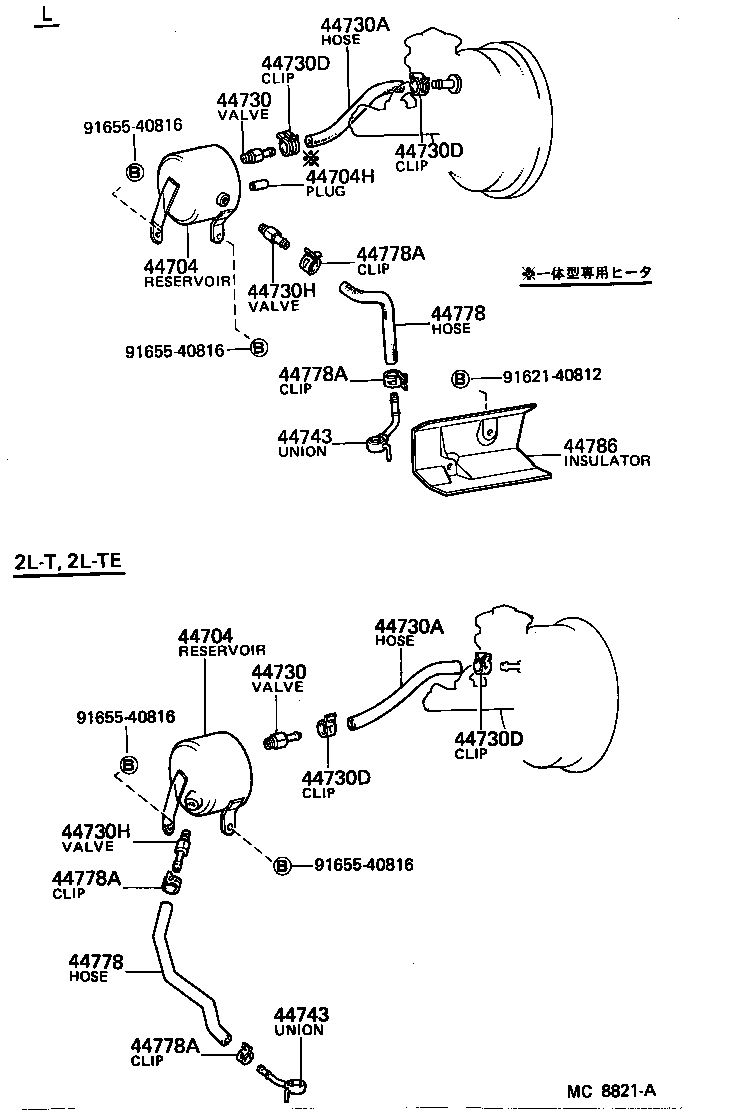

ILLUST NO. 2 OF 2(7909- )LS11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-30020 |
LS110,117 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-30020 |
LS110,117 |
1 | ||
| 44704H - PLUG(FOR VACUUM RESERVOIR) | ||||
| 90339-03005 |
LS110 *IT |
1 | ||
| 90339-03005 |
LS110..BTP,STD,TAX *IT |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20020 |
LS11# |
1 | ||
| 44730-24010 |
LS11# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20020 |
LS11# |
1 | ||
| 44730-24010 |
LS11# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17895 |
LS110,117 |
1 | ||
| 95441-09250 |
LS110,117 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17895 |
LS110,117 |
1 | ||
| 95441-09250 |
LS110,117 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LS11#,MS11#,RS110 |
2 | ||
| 90467-16002 |
GS11#,LS11#,MS11#,RS110 |
2 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60040 |
LS11# |
1 | ||
| 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) | ||||
| 44730-60040 |
LS11# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09018 |
LS110,117 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09018 |
LS110,117 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44773-30260 |
LS110,117 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44773-30260 |
LS110,117 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
LS11# |
2 | ||
| 90467-16002 |
LS11# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
LS11# |
2 | ||
| 90467-16002 |
LS11# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
LS11# |
2 | ||
| 90467-16002 |
LS11# |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16141 |
LS11# |
2 | ||
| 90467-16002 |
LS11# |
2 | ||
| 44786 - INSULATOR, HOSE HEAT | ||||
| 44786-26010 |
LS110,117 |
1 | ||
| Common parts | ||||
| 91621-40812 | ||||
| 91655-40816 | ||||
