LS110-SEKRSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L,2LT#

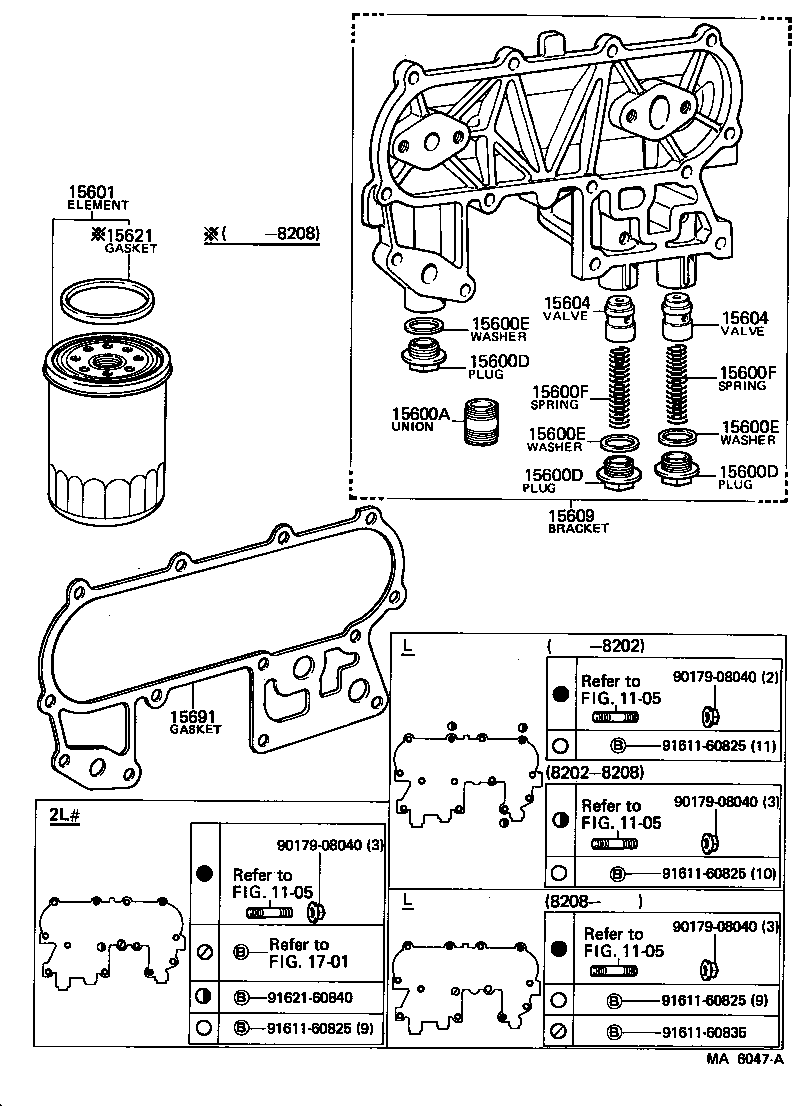

Click highlighted areas on diagram

diagram 1105 1105 1105 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15621 15691 1701 9017908040 9017908040 9017908040 9017908040 9161160825 9161160825 9161160825 9161160825 9161160835 9162160840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54010

L,2LT#..LS11#

 1
15600D - PLUG(FOR OIL FILTER)
90341-18001

L..LS11#

 3
90341-18015

L,2LT#..LS11#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18001

L..LS11#

 3
90341-18015

L,2LT#..LS11#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18001

L..LS11#

 3
90341-18015

L,2LT#..LS11#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2LT#..LS11#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2LT#..LS11#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2LT#..LS11#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

L,2LT#..LS11#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

L,2LT#..LS11#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

L,2LT#..LS11#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

L,2LT#..LS11#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

L,2LT#..LS11#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54011

L..LS110,117

 1
15609-54010

L..LS11#

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

L..LS11#

 1
15691 - GASKET, OIL FILTER
15691-54010

L..LS11#

 1
15691-54011

L..LS11#

 1
15691-54012

L,2LT#..LS11#

 1
Common parts
90179-08040
91611-60825
91611-60835
91621-60840
Linked diagrams
1105
1701
