LS110-SEJTSY (1979)

Toyota Crown

Production Sep 1979 - Oct 1980
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)TAX ; (7909-8108)LS117,MS117 ; (7909-)STD

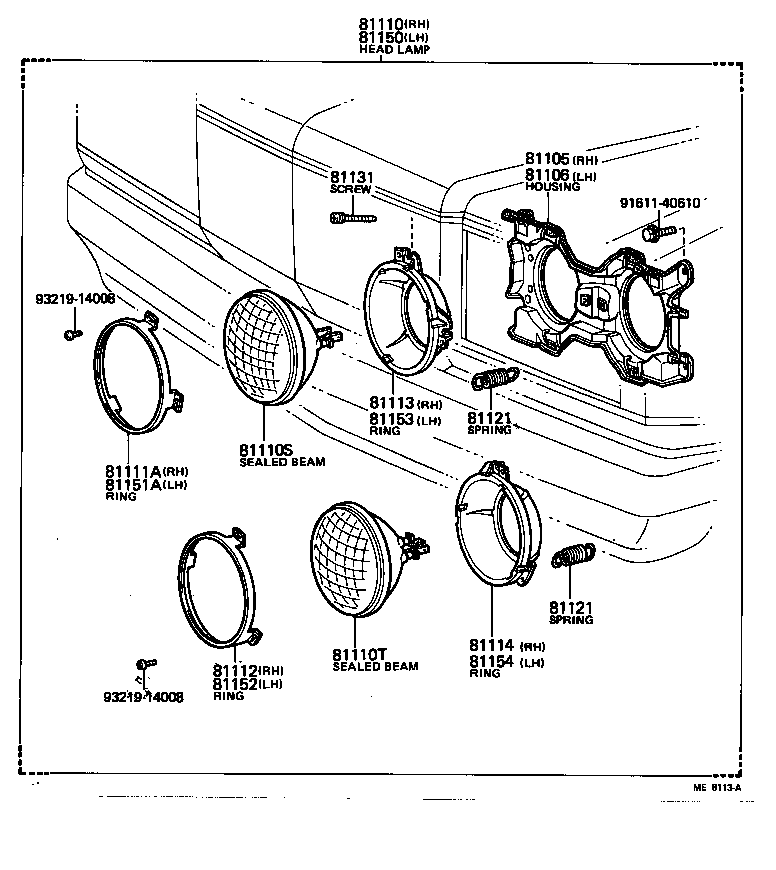

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81110T 81111A 81112 81113 81114 81121 81121 81131 81150 81151A 81152 81153 81154 9161140610 9321914008 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-30420

LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-30530

LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81110 - HEADLAMP ASSY, RH
81110-39525

LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02011

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

12V 37.5W,*WB,12V 37.5W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02012

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

12V 37.5/50W,*WB,12V 37.5/50W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81111-20280

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81154-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81121 - SPRING, HEADLAMP TENSION
81121-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 4
81121 - SPRING, HEADLAMP TENSION
81121-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 8
81150 - HEADLAMP ASSY, LH
81150-39525

LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81111-20280

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81114-20100

GS117,LS117,MS117;LS110,MS110,RS110..STD,TAX

 1
Common parts
91611-40610
93219-14008
