LS110-SEJBSY (1979)

Toyota Crown

Production Sep 1979 - Oct 1980
Engine L
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

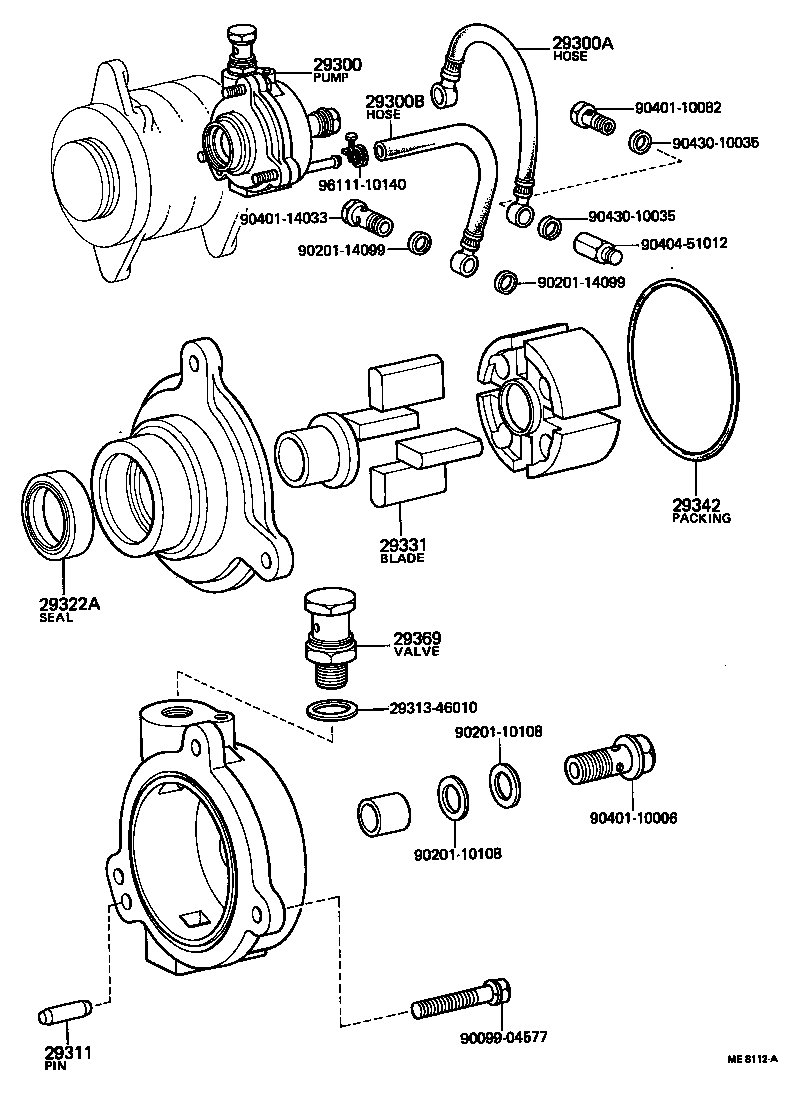

(7909-8002)L

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 2931346010 29322A 29331 29342 29369 9009904577 9020110108 9020110108 9020114099 9020114099 9040110006 9040110082 9040114033 9040451012 9043010035 9043010035 9611110140
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54031

L..LS11#

 1
29300-54030

L..LS11#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02056

L..LS110,117

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02052

L..LS110,117

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

L..LS11#

 1
29322A - SEAL, VACUUM PUMP OIL
90099-15017

L..LS110,117

 1
29331 - BLADE, VACUUM PUMP, A
29331-56010

L..LS11#

 4
29331-54031

L..LS11#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

L,2LT#..LS11#

 2
29369 - VALVE SUB-ASSY, CHECK
29369-54010

L..LS110,117

 1
Common parts
29313-46010
90099-04577
90201-10108
90201-14099
90401-10006
90401-10082
90401-14033
90404-51012
90430-10035
96111-10140

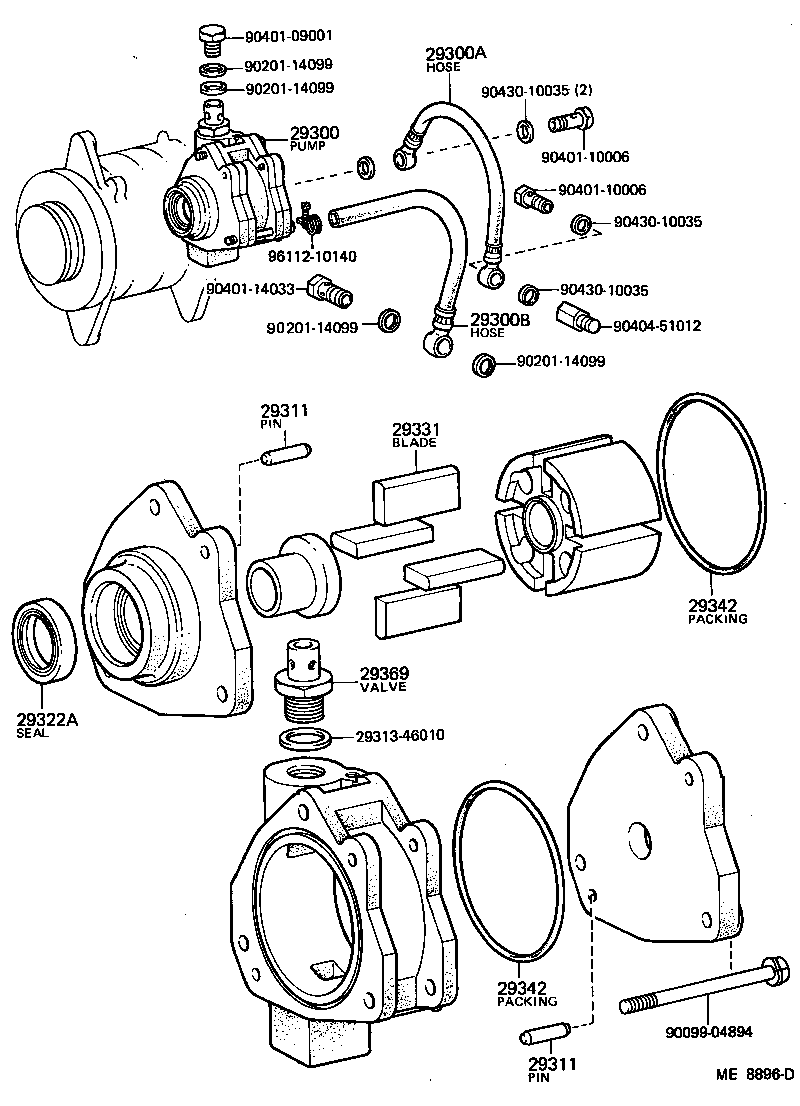

(8002- )L

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29311 2931346010 29322A 29331 29342 29342 29369 9009904894 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9040451012 9043010035 9043010035 9043010035 9611210140
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54031

L..LS11#

 1
29300-54030

L..LS11#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02056

L..LS110,117

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02052

L..LS110,117

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

L..LS11#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

L..LS11#

 1
29322A - SEAL, VACUUM PUMP OIL
90099-15017

L..LS110,117

 1
29331 - BLADE, VACUUM PUMP, A
29331-56010

L..LS11#

 4
29331-54031

L..LS11#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

L,2LT#..LS11#

 2
29342 - PACKING, VACUUM PUMP
96740-02063

L,2LT#..LS11#

 2
29369 - VALVE SUB-ASSY, CHECK
29369-54010

L..LS110,117

 1
Common parts
29313-46010
90099-04894
90201-14099
90401-09001
90401-10006
90401-14033
90404-51012
90430-10035
96112-10140
