Toyota Crown LS110 ACCELERATOR LINK

LS110-SEHDSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983

Engine L

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7909- )LS110,117

Click highlighted areas on diagram

Part #	Description	Period	Qty
78010 - LINK, ACCELERATOR
78100-30460	LS110,117..ATM	10/1980 - 07/1983	1
78100-30420	LS11#..ATM	09/1979 - 10/1980	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100	LS11#	09/1979 - 10/1980	1
78104-30120	LS110,117	10/1980 - 07/1983	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30260	GS110,LS11#,MS110,112..ATM COLD SPEC	09/1979 - 07/1983	1
78120-30320	LS110,117..ATM	09/1979 - 07/1983	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18016	GS110,LS110,117,MS110,112..ATM	09/1979 - 07/1983	1
90508-23026	GS110,LS11#,MS110,112..ATM COLD SPEC	09/1979 - 07/1983	1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	3
78111 - PEDAL, ACCELERATOR
78111-30080	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78111-12100	GS11#,LS11#,MS11#,RS110 COLD SPEC	09/1979 - 07/1983	1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30040	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78180 - WIRE ASSY, ACCELERATOR
78180-30130	LS11#	09/1979 - 10/1980	1
78180-30131	LS110,117	10/1980 - 07/1983	1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30020	LS110,117	09/1979 - 07/1983	1
78403A - KNOB, THROTTLE CONTROL
78411-30040	LS110,117	09/1979 - 07/1983	1
78429 - BRACKET, THROTTLE ROD
78371-30030	LS110,117,MS110,RS110..(BTP,DLX,SDX,STD)..(DSL,LPG)	09/1979 - 07/1983	1
Common parts
90119-06142
90179-11004
90202-08028
90202-10005
90386-08077
90386-10138
90461-08417
90461-10287
90464-00259
90501-12333
90508-16010
90524-04012
91611-60812
91615-40614
91651-40614
91655-40820
93280-16032
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518

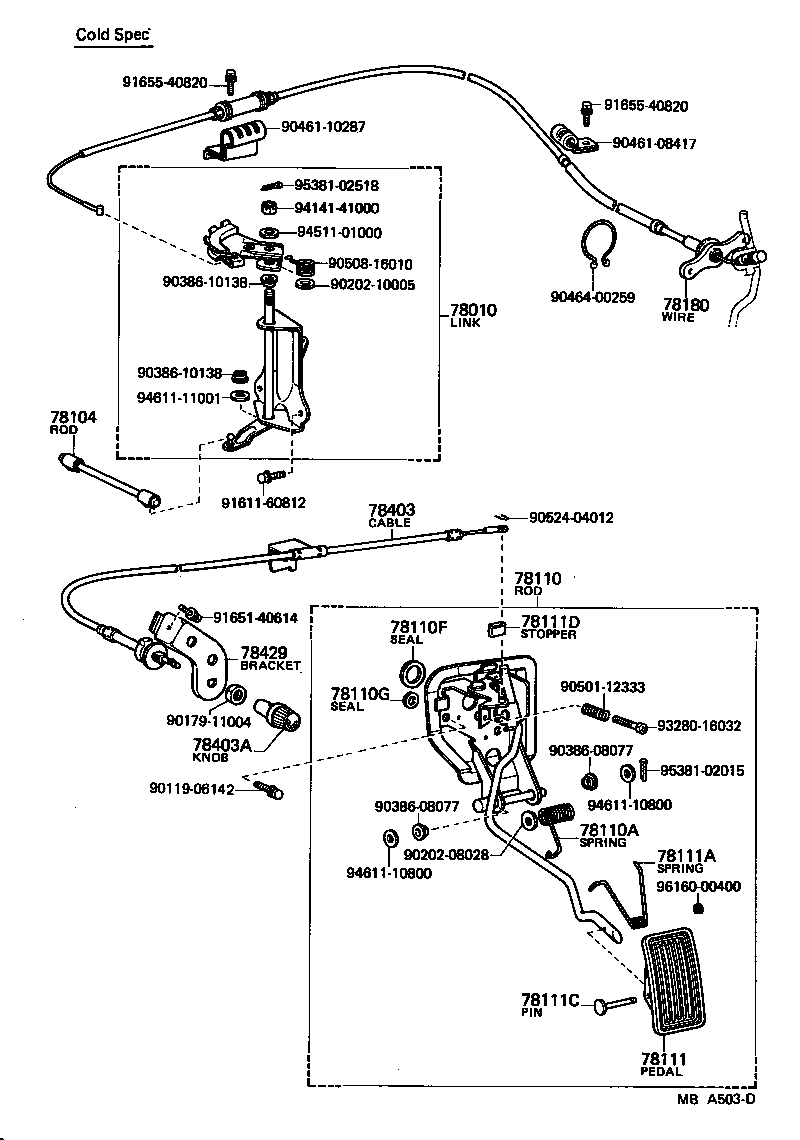

ILLUST NO. 2 OF 2(7909- )LS110,117

Click highlighted areas on diagram

Part #	Description	Period	Qty
78010 - LINK, ACCELERATOR
78100-30460	LS110,117..ATM	10/1980 - 07/1983	1
78100-30420	LS11#..ATM	09/1979 - 10/1980	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30100	LS11#	09/1979 - 10/1980	1
78104-30120	LS110,117	10/1980 - 07/1983	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-30260	GS110,LS11#,MS110,112..ATM COLD SPEC	09/1979 - 07/1983	1
78120-30320	LS110,117..ATM	09/1979 - 07/1983	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18016	GS110,LS110,117,MS110,112..ATM	09/1979 - 07/1983	1
90508-23026	GS110,LS11#,MS110,112..ATM COLD SPEC	09/1979 - 07/1983	1
78110F - SEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)
78129-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78110G - SEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)
78139-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	3
78111 - PEDAL, ACCELERATOR
78111-30080	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78111-12100	GS11#,LS11#,MS11#,RS110 COLD SPEC	09/1979 - 07/1983	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-16002	GS11#,LS11#,MS11#,RS110 COLD SPEC	09/1979 - 07/1983	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	GS11#,LS11#,MS11#,RS110 COLD SPEC	09/1979 - 07/1983	1
78111D - STOPPER (FOR ACCELERATOR PEDAL)
78119-30050	GS11#,LS11#,MS11#,RS110	09/1979 - 07/1983	1
78180 - WIRE ASSY, ACCELERATOR
78180-30130	LS11#	09/1979 - 10/1980	1
78180-30131	LS110,117	10/1980 - 07/1983	1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78401-30020	LS110,117	09/1979 - 07/1983	1
78403A - KNOB, THROTTLE CONTROL
78411-30040	LS110,117	09/1979 - 07/1983	1
78429 - BRACKET, THROTTLE ROD
78371-30030	LS110,117,MS110,RS110..(BTP,DLX,SDX,STD)..(DSL,LPG)	09/1979 - 07/1983	1
Common parts
90119-06142
90179-11004
90202-08028
90202-10005
90386-08077
90386-10138
90461-08417
90461-10287
90464-00259
90501-12333
90508-16010
90524-04012
91611-60812
91651-40614
91655-40820
93280-16032
94141-41000
94511-01000
94611-10800
94611-11001
95381-02015
95381-02518
96160-00400

LS110-SEHDSY (1979)

ILLUST NO. 1 OF 2(7909- )LS110,117

ILLUST NO. 2 OF 2(7909- )LS110,117
