LS110-SEHDSY (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)

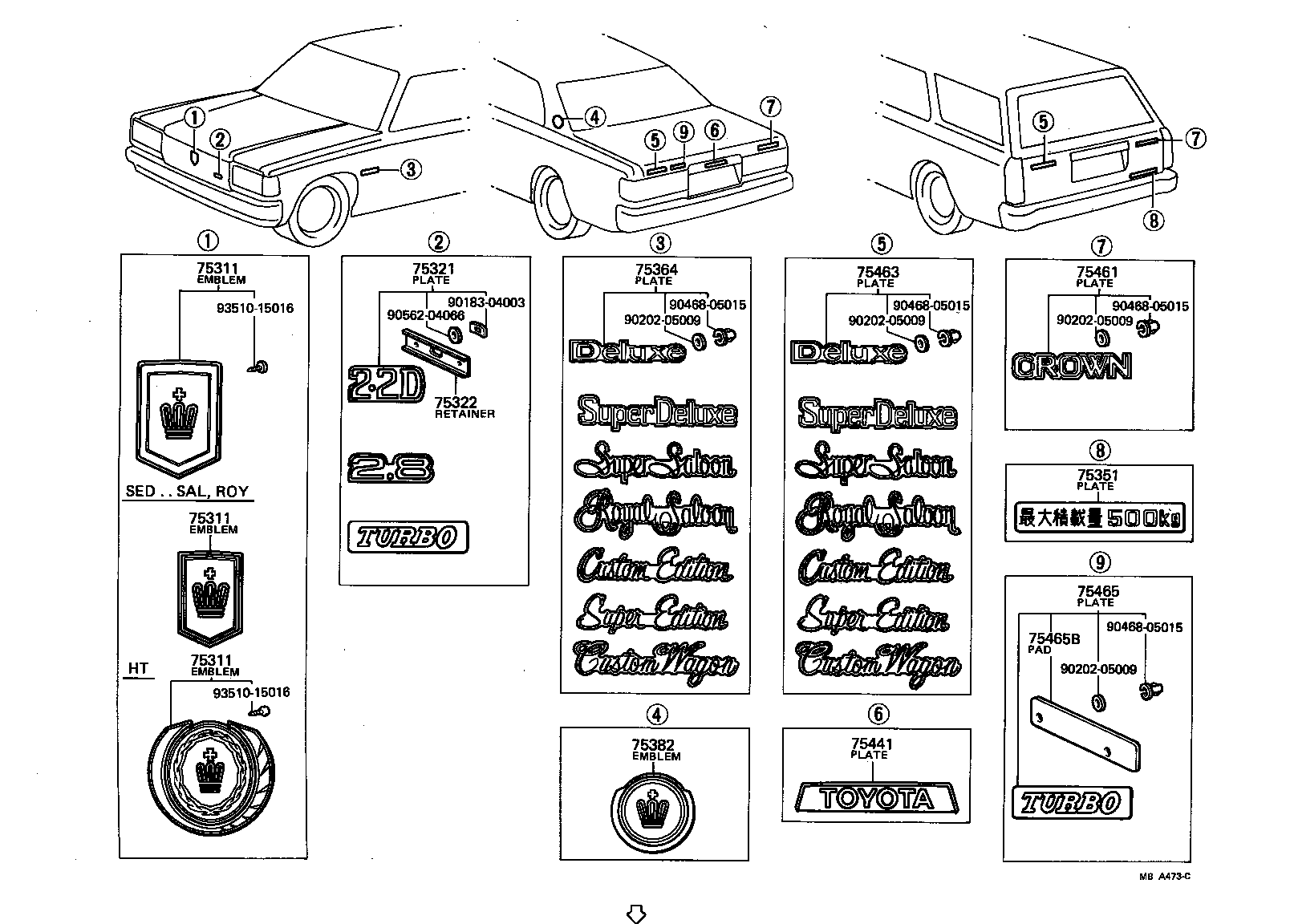

Click highlighted areas on diagram

diagram 75311 75311 75311 75321 75322 75351 75364 75382 75441 75461 75463 75465 75465B 9018304003 9020205009 9020205009 9020205009 9020205009 9046805015 9046805015 9046805015 9046805015 9056204066 9351015016 9351015016
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39055

LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SDX)

 1
75311-39065

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39055

LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SDX)

 1
75311-39065

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39055

LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SDX)

 1
75311-39065

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-39115

LS110,117

2.2D

 1
75321-39065

LS11#

2.2D

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-30030

MS112;LS11#,MS110..DSL,TBO

 1
75324-30060

LS110,117,MS110,112..DSL,EFI,TBO,TWC

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30120

LS110,MS110,RS110..(HT,SED)..(BTP,DLX)

DELUXE

 2
75361-30120

GS110,LS110,MS110,RS110..SED..DLX

DELUXE

 2
75441 - PLATE, REAR NAME, NO.1
75431-30160

GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX)

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-30090

GS11#,LS11#,MS11#,RS110

CROWN

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30120

GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,DLX)

DELUXE

 1
Common parts
90183-04003
90202-05009
90468-05015
90562-04066
93510-15016

(8108- )

Click highlighted areas on diagram

diagram 75311 75321 75322 75351 75364 75364 75364 75382 75441 75461 75463 75463 75463 75465 75465 75465B 75485 9018304003 9020204010 9020204010 9020205009 9020205009 9020205009 9020205009 9046705012 9046705012 9046707022 9046707022 9046707022 9046707022 9046805015 9046805015 9046805015 9046805015 9056204066 9351015016
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-39055

LS11#,MS110,117,RS110..(SED,V,WG)..(BTP,DLX,SDX)

 1
75311-39065

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-39115

LS110,117

2.2D

 1
75321-39065

LS11#

2.2D

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-30030

MS112;LS11#,MS110..DSL,TBO

 1
75324-30060

LS110,117,MS110,112..DSL,EFI,TBO,TWC

 1
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30120

LS110,MS110,RS110..(HT,SED)..(BTP,DLX)

DELUXE

 2
75361-30120

GS110,LS110,MS110,RS110..SED..DLX

DELUXE

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30120

LS110,MS110,RS110..(HT,SED)..(BTP,DLX)

DELUXE

 2
75361-30120

GS110,LS110,MS110,RS110..SED..DLX

DELUXE

 2
75364 - PLATE, FRONT FENDER NAME, NO.2 (GRADE MARK)
75361-30120

LS110,MS110,RS110..(HT,SED)..(BTP,DLX)

DELUXE

 2
75361-30120

GS110,LS110,MS110,RS110..SED..DLX

DELUXE

 2
75441 - PLATE, REAR NAME, NO.1
75431-30160

GS110,LS110,111,MS110,RS110..SED..(BTP,DLX,SDX)

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-30090

GS11#,LS11#,MS11#,RS110

CROWN

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30120

GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,DLX)

DELUXE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30120

GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,DLX)

DELUXE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75361-30120

GS11#,LS110,117,MS110,117,RS110..(HT,SED,V)..(BTP,DLX)

DELUXE

 1
Common parts
90183-04003
90202-04010
90202-05009
90467-05012
90467-07022
90468-05015
90562-04066
93510-15016
